AGF SA86BVMW Servo (10-13V) (0,12sek/60 kg-cm@12.6V)

Here are the data of the servo at the different voltages: 40kg & 0.155sec / 60° at 9.9V 57kg & 0.125sec / 60° at 12V 66kg & 0.105sec / 60° at 14.4V

Equipment/Features:

• *Smart Servo* Programmable 2-3s operation possible with external power connection for operation directly on the battery
• Can be operated via software as a winch or, for example, as a retractable landing gear servo without an endpoint
• With standard software a normal compact servo, programmable with optional USB interface AGF-SP
• Hardened gearing, double ball bearings, digital, 25 tooth output Futaba / Savöx compatible / magnetic encoder
• IP 67 waterproof, HV capable, 60kg at 12.6V 0.12 sec/60° *2s and 3s cables are included! *

Technical specifications:

• Control frequency: 1520us // Up to 333Hz

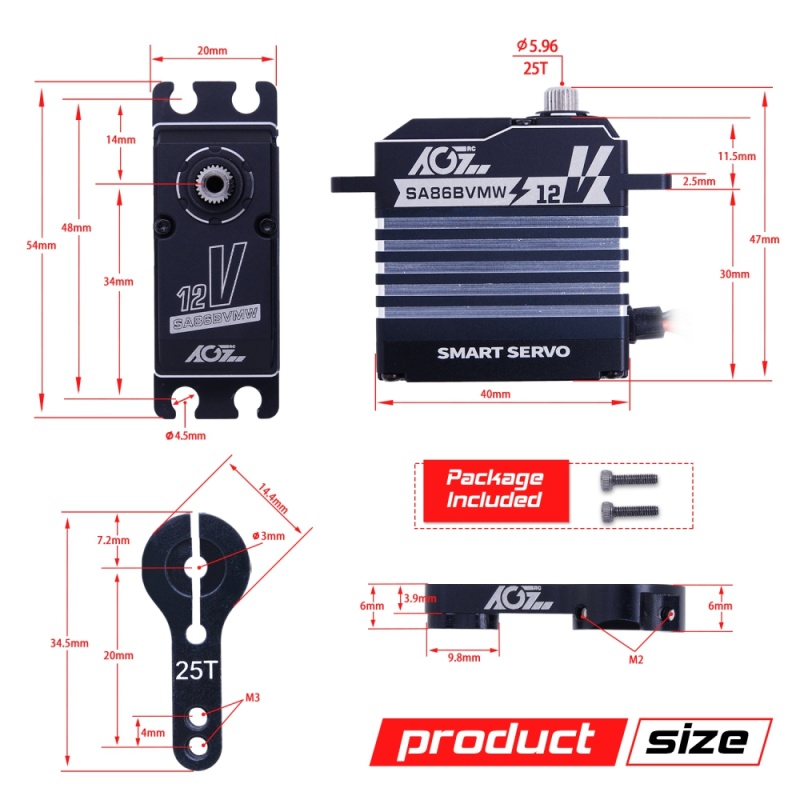

• Width (mm): 20
• Length (mm): 40
• Height (mm): 41.5
• Voltage range: 6-14V
• Weight (g): 88.5
• High-voltage capable: yes
• Scope of application: helicopter, airplane, car, boat
• Output teeth (number): 25
• Ball bearings (number): 3
• Motor type: brushless motor
• Gear type: steel
• Housing type: full metal
• Classification: Standard
