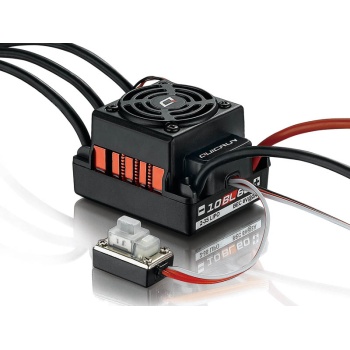

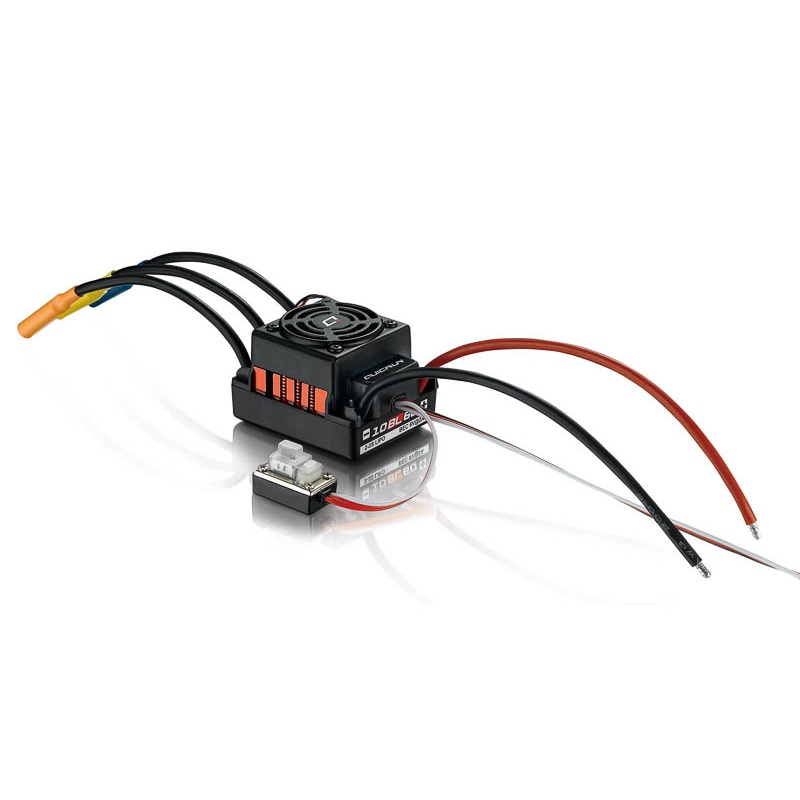

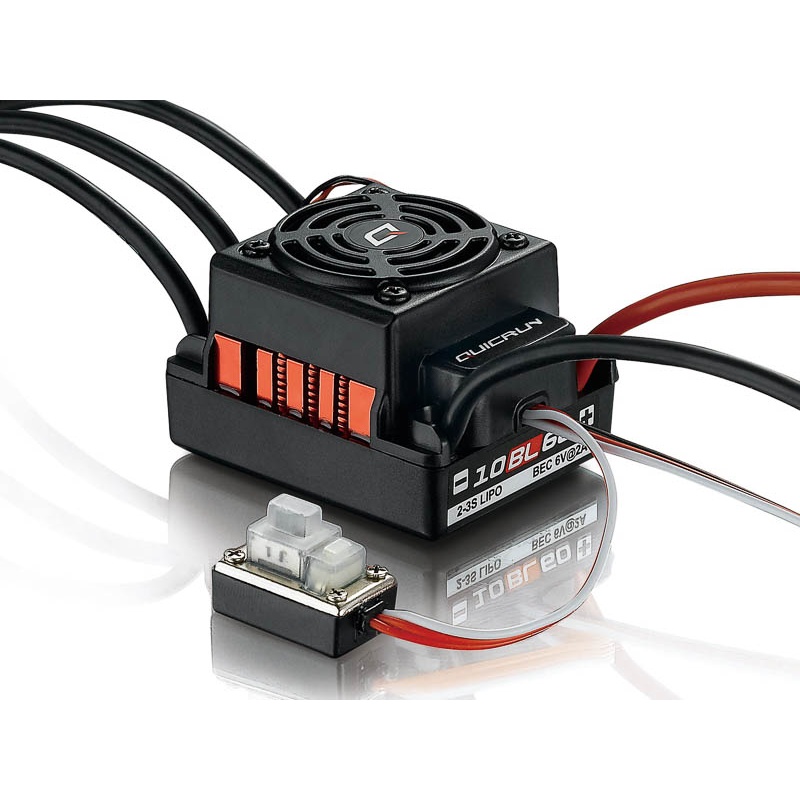

Hobbywing QuicRun ESC WP10BL60 Brushless 60A Sensorless 1/10

Tootekood: HW30107100
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind:
59,90 €
Kogus: - +
   - või -

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Features

  1. Water-proof and dust-proof for all-weather races.
    (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
  2. External programming port, easy to connect to the Program Card when setting the ESC.
  3. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  4. 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
  5. Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
  6. One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
  7. Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Specifications

  • Cont./Peak Current: 60A/360A
  • Resistance: 0.001O
  • Motor Type Supported: Sensorless Brushless Motor
  • Car Applicable: 1:10 On-road/Off-road/Buggy/Monster
  • Motor Limit
    • For 2S Lipo or 6 cells NiMH:
      On-road: 3656-size or smaller motor with the KV<6000
      Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
    • For 3S Lipo or 9 cells NiMH:
      On-road: 3656-size or smaller motor with the KV<4000
      Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<300
  • Battery
    • 4-9 Cells NiMH
    • 2-3S Lipo
  • BEC Output: 6V/3A (Switch Mode)
  • Size: 48.5(L)*38(W)*32(H)
  • Weight  / 90g
  • External Program Port: Available
  • Working voltage of Fan: From battery directly without regulating
