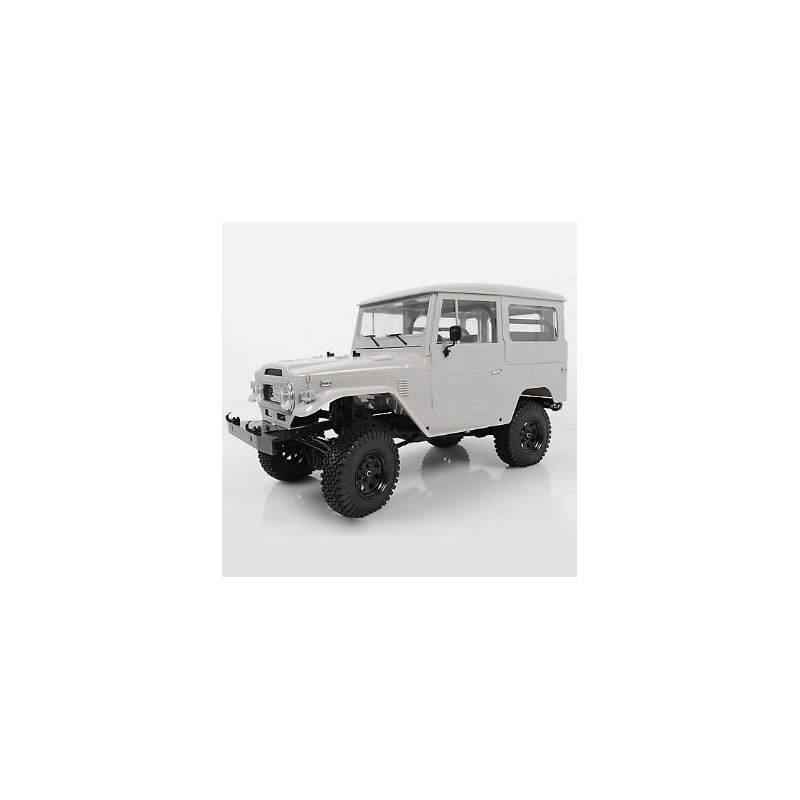

RC4WD Gelände II truck kit + Land Cruiser FJ40 kere

Tootekood: RC4ZK0051
Ühik: kmpl
Laoseis: Hetkel otsas
Tarneaeg: Ettetellimisel
599,00 €
Kogus: - +
   - või -




Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!

G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new R3 single speed transmission provides power down to the transfer case and out to the all new Yota II axles.

The core of the G2 is built for the true off-road enthusiast. From customized options to tried and true performance. From emergency and expedition vehicles, to daily drivers and down and dirty off-road rigs. It can pull off many looks and with the endless add-ons offered, you will be able to customize your G2 and have it fit any identity.

The G2 comes with 4 link rear and 3 link front with panhard bar as standard.  The servo is mounted on the chassis out of view for a more scale appearance.
Are you ready for your off-road experience?
  • Custom Designed for True to Scale Looks
  • Realistic Aluminum Ladder Frame Chassis
  • R3 Single Speed Transmission
  • Center Mounted Realistic 4x4 Transfer Case
  • Cast Metal Axles with Locked Differentials
  • 3 Link front and 4 Link rear suspension
  • 1.9 Stamped Steel Beadlocks w/lug nuts
  • Super grip dirt grabber Tires
  • Chassis mounted Steering servo
  • Plastic fuel cell receiver box
  • Dual spring oil filled Shock absorbers





All New Hammer Transfer Case
Ratio - 1.47:1 Gears - Wide 32P hardened steel gears, - 8 bearings, cast casing
All New R3 Single Speed Transmission
Ratios: Pinion/spur 14/64 = 4.57:1 Internal  1.78:1
Gears - Wide steel 32P, Delrin spur, slipper clutch
All New Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at hex 180.5mm
G2 Suspension
Double triangulated 4 Link rear suspension.
3 Link front suspension with panhard bar
Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled
Type: 1.9 5 lug Wagon Wheels
Hub: Pin type Width: 25mm
Back spacing: 11mm
Machined billet aluminum, lightweight
G2 Truck Dimensions
Wheels base: 10.83in / 275mm
Length: 18.35in / 466mm
Width: 8.5in / 215mm
Height: 10.6in / 270mm
Ground clearance: 2.3in / 58mm
Final Drive Ratio: 31.9:1

Weight: 6.57 Lbs / 2.98Kg




The All New R3 single speed transmission comes with a tough cast metal case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch. Also features a sturdy billet aluminum motor mount for durability.
The G2 includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and the same heavy duty 32P widened gears for durability.
Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.
The most scale accurate axles on the market, the RC4WD Cast Yota2 axles feature innovative 8 degree round knuckles, unique removable diff covers, new lower mounting points and a compact offset pumpkin in the front.
The Driveshafts for the G2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.






The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.
The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, this ultimate scale shock has realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.
The All New G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.
The G2 includes a set of RC4WD Black Stamped Steel 1.9 internal beadlock wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.
Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

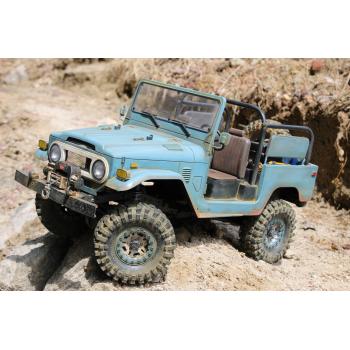

Photos below show product, submitted by customer (Not Included)

The G2 features the Cruiser Scale Body Set. The Cruiser body has an awesome appointment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.
The unmistakable lines of a classic. The Cruiser Body Set is an exact replica of the full scale vehicle, right down to the removable top! No other scale body comes this close to realism.
The Cruiser Body Set comes in durable hard plastic molded in a paintable gray finish, perfect for custom paint. All the trim parts are separate pieces to get a great look, with minimal fuss.
Comprised of over 70 parts, the Cruiser Body Set features a full detailed interior. seats, gear shifter, handbrake and detailed dashboard. Its all here to bring your build to next level.
The crisp lines and subtle details are captured. Metal grill insert is included as well as details lenses for all signal lights. All lamps can be illuminated with modification.
What's Included:
  • 1x Gelande II Truck Kit w/Cruiser Body Set
This is a kit that requires building time (appro. 2-3 hours) and electronics
Required to Complete:

Truck Kit
  • Hex Drivers (1.5mm, 2mm, 2.5mm)
  • Long Nose Pliers
  • Associated Thread Locking Adhesive
  • Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Body Kit
  • Modeling / Craft Knife
  • Side Cutters
  • Instant glue / Plastic Cement  (prefer non whitening)
  • Hex Drivers (1.5mm, 2mm)
  • Cross Phillips Screwdrivers (small)
Replacements Parts:
  • Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
  • Gelande 2 Rear 4 Link Mount (Z-S0795)
  • Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
  • Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
  • 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
  • 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
  • 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
  • Drag Link for Gelande 2 (Z-S0810)
  • 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
  • M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
  • M3 Short Bent Plastic Rod End (20x) (Z-S0402)
  • M3 Mini Plastic Rod End (20x) (Z-S0398)
  • M3 Offset Short Plastic Rod End (20x) (Z-S0401)
  • R3 Single Speed Transmission Mounts (Z-S0802)
  • R3 Scale Single Speed Transmission (Z-U0028)
  • 14t 32p Hardened Steel Pinion Gear (Z-S0430)
  • Gelande 2 Chassis Set (Z-C0040)
  • Battery Plate for Gelande 2 (Z-S0792)
  • Servo Mounts for Gelande 2 Chassis (Z-S0791)
  • Jammer Front Bolt On Tow Hook (Style A) (Z-S0042)
  • Silver Steel Body Clips 1.21mm (Z-B0016)
  • Fuel Cell Radio Box (Z-S0592
  • Hammer Transfer Case (1.47/1) (Z-U0024)
  • Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
  • Metal Drive Coupling for Gelande 2 (Z-S0803)
  • Aluminum Driveshaft Locking Ring for Scale Nylon Punisher Shafts (Z-S0443)
  • Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole (Z-S0583)
  • Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
  • Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
  • Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
  • 5 Lug Wagon 1.9 Steel Stamped Beadlock Wheels (Black) (Z-W0129)
  • Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
  • Heavy Duty Nylon Strap Lock (5) (Z-S0552)
  • 1mm Black Spacer with M3 Hole (10) (Z-S0809)
  • 2mm Black Spacer with M3 Hole (10) (Z-S0600)
  • 3mm Black Spacer with M3 Hole (10) (Z-S0806)
  • 5mm Black Spacer with M3 Hole (10) (Z-S0821)
  • RC4WD Cruiser Main Interior (Z-B0063)
  • RC4WD Cruiser Dashboard Parts Tree (Z-B0067)
  • RC4WD Cruiser Seat Parts Tree (Z-B0069)
  • RC4WD Cruiser Accessories Parts Tree (Z-B0071)
  • RC4WD Cruiser Accessories 2 Parts Tree (Z-B0073)
  • RC4WD Cruiser Chrome Accessories Parts Tree (Z-B0075)
  • RC4WD Cruiser Clear Parts Tree (Z-B0077)
  • RC4WD Cruiser Main Window (Z-B0079)
  • RC4WD Cruiser Front Grill Insert (Z-B0081)
  • RC4WD Cruiser Front LED Holder (Z-B0083)
  • RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
  • RC4WD Cruiser Main Body (Z-B0061)
  • RC4WD Cruiser Roof (Z-B0065)
Optional Parts:
  • Ultra Scale Hardened Steel Driveshafts "Ver 2" (3.15"/4.33"-80mm/110mm) (VVV-S0120)
  • Rebuildable Super Punisher Shaft (100mm-118mm, 3.94"-4.65") 5mm Hole (Z-S1261)
  • King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
  • King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
  • RC4WD Rock Krawler Link kit for the Gelande 2 90/110 (Z-S1512)
  • RC4WD Fender Flare for Rear Cruiser Body (Z-S1539)
  • RC4WD Snorkel for Cruiser Body (Z-S1554)
  • Punisher Shaft II (80mm-100mm,3.15"-3.93") 5mm hole (Z-S1591)
Upgraded Front / Rear Shock:
  • RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
  • RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
  • King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
  • King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
  • Driver (Z-S0190)
  • Winch (Winch Options)
  • XVD For Yota II Front Axle (Z-S0823)
  • Scale Aisin/Yota Style Hubs (Z-S0196)
  • Trition Transfer Case (1:1 ratio) (Z-U0029)
  • Survivor Rear Bumper for Gelande (Z-S0698)
  • Yota II Scale Diff Cover (Z-S0907)
  • Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
  • Gelande II Steering Guard (Z-S0824)
  • Scale Steel Punisher Shaft V3 (3.56"-4.35" / 90.5mm-110.5mm) 5mm Hole (Z-S0826)
  • Ultra Scale Hardened Steel Driveshaft (1.81"/1.96"-46mm/50mm) (VVV-S0006)
  • K44 Scale Front Axle (Z-A0048)
  • K44 Scale Rear Axle (Z-A0049)
  • Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
  • Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
  • Mud Flap For Gelande II (Z-S0890)
  • Challenger 1.9 Scale Tires (Z-T0108)
  • 1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
  • 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
  • Land Rover Disco Freestyle 1.9" Wheels
  • Land Rover Disco Freestyle 1.9" Wheels (Gun Metal) (Z-W0037)
  • RC4WD Gelande Spare Tire Cover (Z-S0931)
  • Predator Track Front Axle Fitting Kit for Yota II (Z-S0918)
  • Tow Bar Mount for TF2 / G2 (Z-S1125)
  • RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
  • RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
  • R3 Scale Single Speed Transmission (Z-U0028)
  • R3 Single Speed Transmission Mounts (Z-S0802)
  • Mud Flap for Land Rover Defender D90 (VVV-C0072)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
  • RC4WD Aero Roof Rack with Light Mounting (Type 2) (Z-J0003)
  • RC4WD Adjustable Jack Stand Truck Display (Z-X0013)
  • Gelande 2 Mounting kit for Jack Stand (Z-S1324)
  • RC4WD 1/10 Super Charged Emblem Set (Z-S1138)
  • RC4WD 1/10 Turbo Diesel Emblem Set (Z-S1132)
  • LED Basic Lighting System For Cruiser Body Set (Z-E0071)
  • Rear Fender Flares for RC4WD Cruiser Body (VVV-C0136)
  • Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Silver) (VVV-C0135)
  • Metal Side Diamond (A) Plates for RC4WD Cruiser Body (Silver) (VVV-C0134)
  • Side Metal Emblems for RC4WD Cruiser Body (Side B) (VVV-C0133)
  • Rear Metal Emblems for RC4WD Cruiser Body (VVV-C0132)
  • Snorkel for RC4WD Cruiser Body (VVV-C0131)
  • Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Black) (VVV-C0130)
  • Metal Side Diamond (A) Plates for RC4WD Cruiser Body (Black) (VVV-C0129)
  • Complete Metal Emblems Set for RC4WD Cruiser Body (VVV-C0128)
  • Front Metal Emblems for RC4WD Cruiser Body (VVV-C0126)
  • Side Metal Emblems for RC4WD Cruiser Body (Side A) (VVV-C0127)
  • RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
  • RC4WD Tough Armor Metal Tube Cage for G2 Cruiser (Z-X0021)
  • Tough Armor Tube Roll Bar for G2 Cruiser (Z-X0023)
  • Tough Armor front Bumper for G2 Cruiser (Z-S1606)
  • Hitch Mount with Bumper for RC4WD G2 Cruiser (Z-S1626)
  • RC4WD ARB 1/10 Roof Rack (Z-X0024)
  • Metal Tire Holder RC4WD G2 Cruiser/FJ40 (VVV-C0173)
  • RRear Bumper Assembly w/Pad for RC4WD G2 Cruiser/FJ40 (VVV-C0171)
  • Rear Bumper Step for RC4WD G2 Cruiser/FJ40 (VVV-C0178)
  • Rear Bumper for RC4WD G2 Cruiser/FJ40 (VVV-C0170)
  • Rear Bumper Assembly w/Pad and Step for RC4WD G2 Cruiser/FJ40 (VVV-C0172)
  • Rear Bumper Pads for RC4WD G2 Cruiser/FJ40 (VVV-C0167)
  • 1.9 Landies Internal Beadlock Wheels (Z-W0075)


Items of Interest: (not required for completion)

Instruction Manuals:

Press Information:

Additional Notes for Assembly


  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws otherwise you may strip the thread.
