Elceram Nitride G2 1/10 Competition Brushless ESC

Tootekood: ELC020
EAN: 8594227050075
Ühik: tk
Laoseis: Hetkel otsas

Hind:

289,00 €

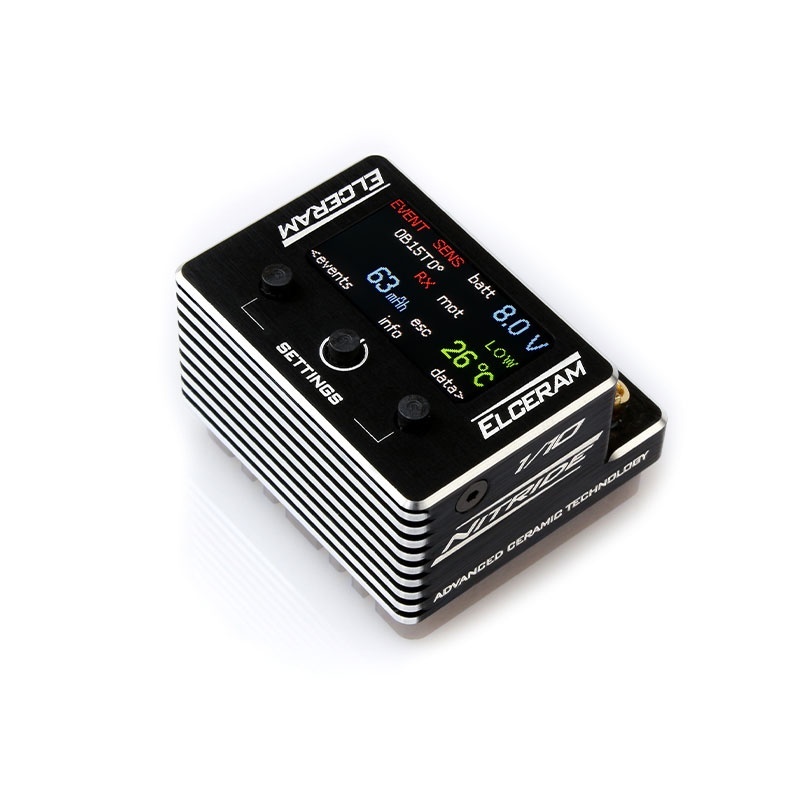

NITRIDE 1/10 G2 is a new generation electronic speed controller for sensored Brushless DC motors.

Using Advanced Cooling Technology based on Aluminium Nitride Ceramic cooler, NITRIDE 1/10 G2 has excellent thermal conductivity and can be used with powerful motors from 4.5 T up.

NITRIDE 1/10 G2 provides TFT LCD color display allowing very quick and easy adjustment of all parameters, post-race data evaluation and self-diagnostics without need of any other interface.

Building on the proven features of the first generation, NITRIDE 1/10 G2 introduces new, innovative features that take RC motor control to a whole new level.

Revolutionary motor derating function - adjust your strong motor for smaller track quickly and easily!
Revolutionary brake softening function for high speed and low grip braking - do not loose the traction in the end of the straight!
Improved button feeling
FW update function
New Aluminium mounting plate with FAN holder

LCD Display

As you got used to by ELCERAM speedos, NITRIDE 1/10 G2 is endowed with necessary LCD color display. Thanks to this you can set all the parameters and check all data directly at your ESC, without need of any programming card or a mobile application. All you need is inside your ESC.

The use is really easy - by 3 buttons you can quickly set anything you need and one view is enough to check all parameters necessary for race. Simply. Quickly. Precisely.

Thanks to the display, you can have always overview about all the important data and events - before the race, during driving and after race. It is really quick to make a change in your settings and then you have immediate feedback, without any delay caused by connecting a control interface.

NITRIDE 1/10 G2 saves your data from your last race after turning ESC off and enables you to watch it after the next turn on. Take your time and analyze the data at your leisure, whenever you want!

Features:

ESC for sensored BLDC motors from 4.5 T up.
Developed especially for 1/10 RC cars.
Reverse polarity protection.
Intelligent algorithms for ESC protection.
Fine throttle and brake adjustment for excellent feeling.
TFT LCD color display with resolution 160 x 80 pixels, matte finish.
Size: 36,5 (L) x 34 (W) x 24 (H) mm.
Weight: 59 g without wires.
Power supply: 2S LiPo.
ESC current cont. / pulsed: 180 A / 1500 A.
BEC: 6 - 7,4 V adjustable, current cont. / pulsed: 6 A / 12 A.
Extreme low internal resistance based on silver conductive layer.
Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
Connector for intelligent FAN.
Zero Timing (Blinky Mode) supported.
EFRA, ROAR and BRCA approved.

Functions:

Revolutionary easy Rx calibration.
Realtime monitoring: battery voltage, ESC and motor temperatures, motor diagnostics and more.
Revolutionary battery current and discharge monitoring.
Revolutionary motor derating function.
Revolutionary brake softening function.
Revolutionary motor analyzer function.
Pre-race diagnostics: motor temperature, sensor cable, bad motor, battery, BEC voltage and more.
Post-race data evaluation. Post-race data saved after ESC turn off.
Easy programming: throttle, brake, boost and turbo timing, hall angle, BEC and many other functions.
Continuous BEC voltage monitoring.
Continuous motor speed monitoring.
RPM limiter supported.
Race data logging, temperature and other curves, histograms and more.
Adjustable maintenance reminder for easy check.
No programming interface needed.
