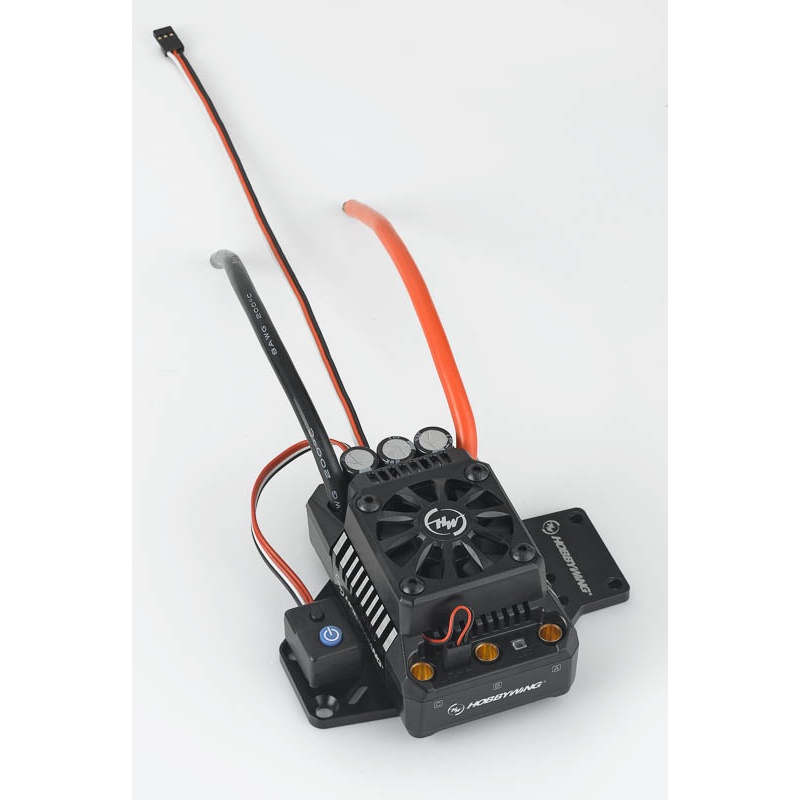

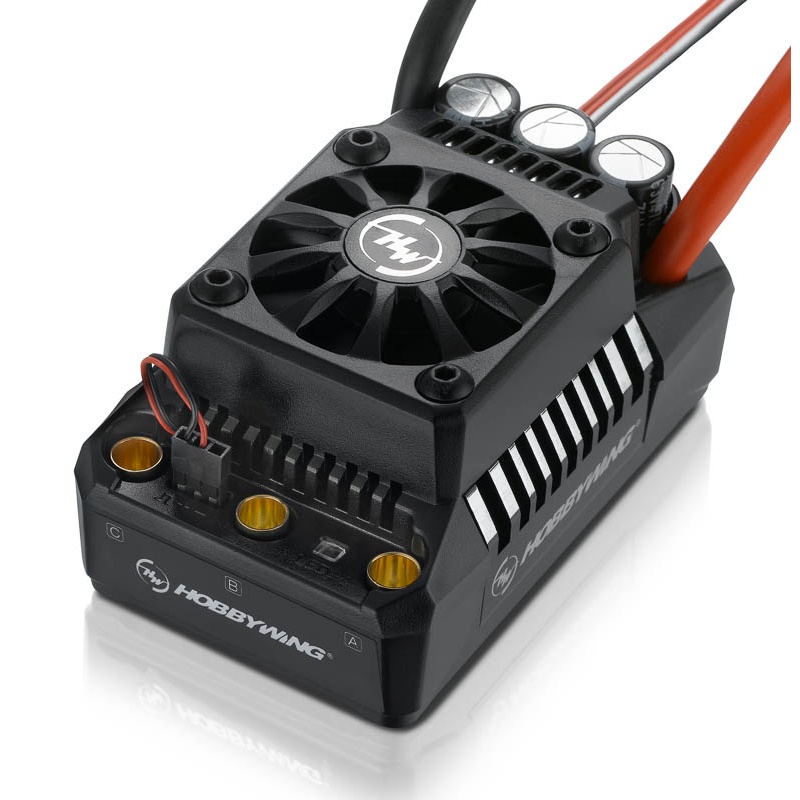

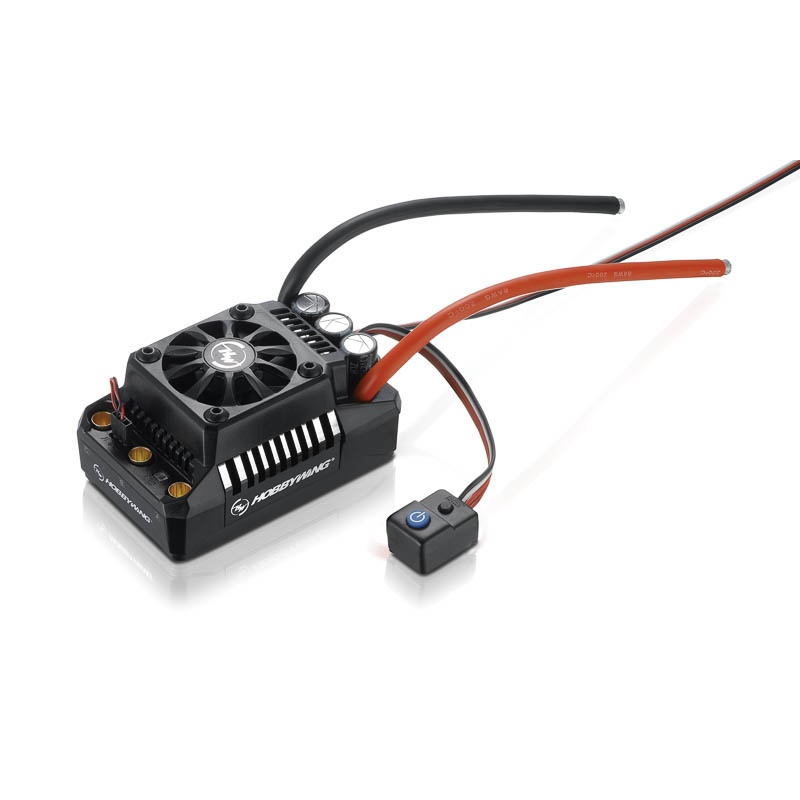

Hobbywing Ezrun MAX5 Sensorita ESC, 200 Amp, 3-8s LiPo, BEC 6A
Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output, the MAX5 can handle instant full-torque start-ups for wheelie, high speed racing on straightaways and powering through the bumpiest terrain. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up and personal preferences.
High Reliability & Durability
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5 is able to deliver unmatched power and performance for even the most hardcore racing application, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
Applicable to All Weather Conditions
Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.
Super Built-in BEC
The MAX5 has adopted the worlds 1st HV built-in BEC with the max. output current of up to 25A and switchable output
voltage (6V/7.2V). The high voltage BEC is designed to handle today's high voltage servos on demand used by many large scale or 1/8 vehicles.
Advanced and Secure Electronic Switch
The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.
Regular Firmware Updates Free of Charge
You can upgrade the MAX5 with the Hobbywing USB Link software, a multifunction LCD program box and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.
The ESC minus the cooling fan is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle high jumps and landings on hard surfaces.
Built-in Anti-Spark System
The Max6 is built with internal anti-spark circuitry that protects not only the battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).
Plug and Play
Standard 6.5mm gold-plated connectors at the ESCs output end are perfectly compatible with stock motor connectors of many popular brushless engines. Moreover, TRAXXAS style plug has been soldered to the ESCs input end for different battery connectors, driver can plug and play and free from possible re-soldering work.
The EZRUN MAX5 provides the ultimate power upgrade solution for many popular 1/5 scale vehicles like HPI Baja buggy, Losi 5T Nitro-to-electric truck, and Desert Buggy XL Nitro-to-electric buggy. It's also suitable for various other brands of 1/5 scale on-road cars, buggies, truggies or SCT.
- Connection Battery: without
- Cont./Peak Current: 200A/1300A
- Motor Type: Sensorless Brushless Motor
- Applications: 1/5th Touring Car, Buggy, Truggy and Monster Truck
- Motor Limit Brushless Motor:
- 8S LiPo/24S NiMH:KV<=1000 (58110 Size)
- LiPo/NiMH Cells:
- 9-24S NiMH
- 3-8S LiPo
- BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
- Resistance: Ohm
- Cooling Fan: Yes (Powered by the stable BEC voltage of 6V/7.2V)
- Size (LxWxH): 93,35 x 58,12 x 47,81mm
- Weight: 342g
- Programming Port: FAN/PRG Port
- ESC Programming Via:
- SET button
- LED Program Box
- LCD Program Box
