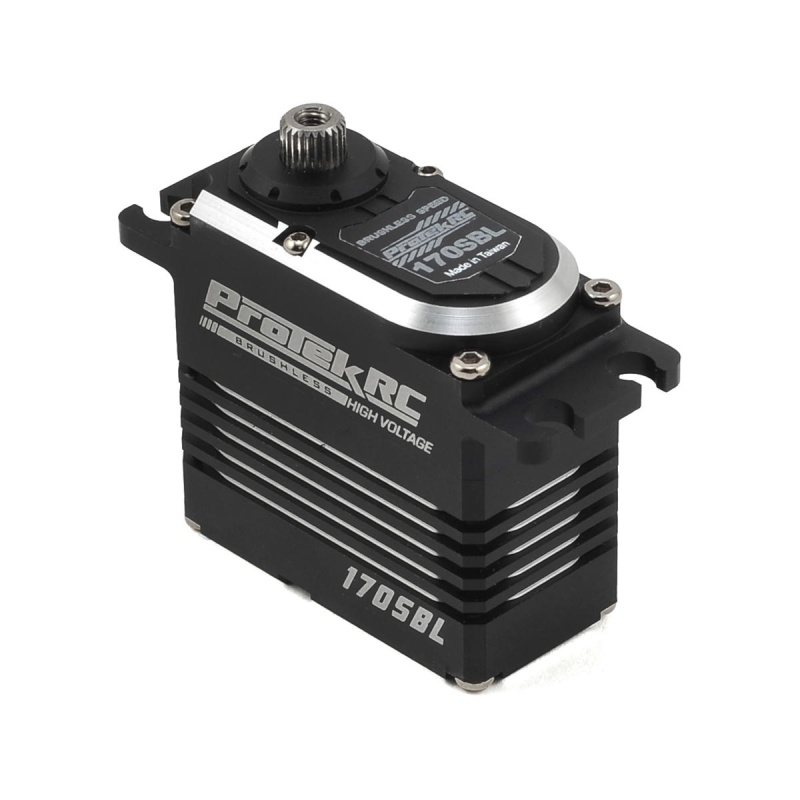

ProTek RC 170SBL Black Label High Speed Brushless Servo (High Voltage/Metal Case) (Digital)
Tootekood: PTK-170SBL
EAN: 707470753183
Kaubamärk:
Ühik: tk
Laoseis: Hetkel otsas
EAN: 707470753183
Kaubamärk:
Ühik: tk
Laoseis: Hetkel otsas
Hind:
149,90 €
Features:
- Ideal for any 1/10 to 1/8 surface application that requires lightning fast response
- Full aluminum black anodized case
- High voltage circuitry
- 0.09 transit speed, and 458 oz-in of torque @ 6.0V
- 0.08 transit speed, and 535 oz-in of torque @ 7.4V

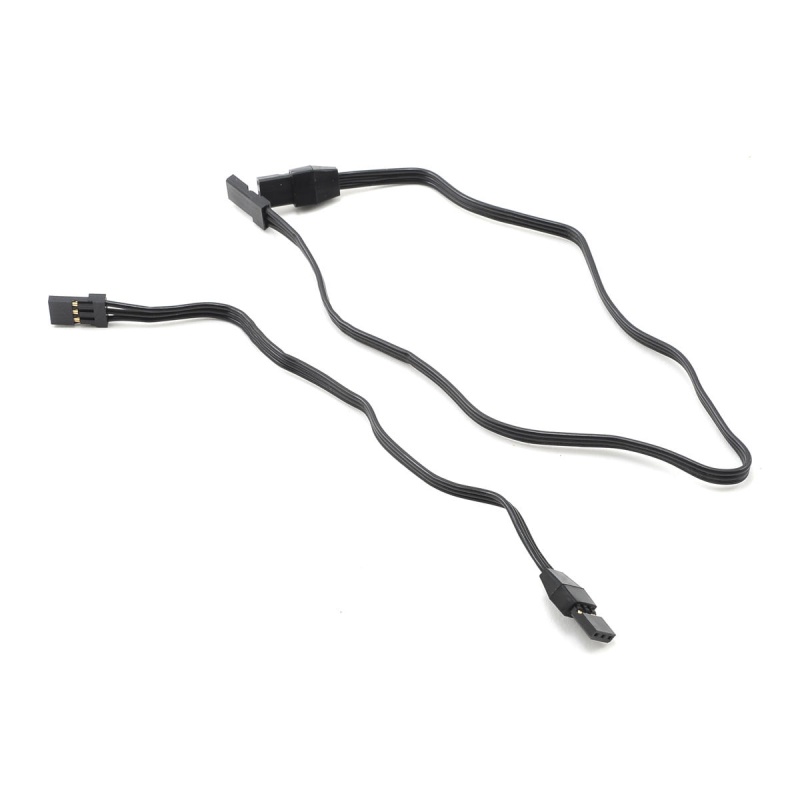

- 150mm and 300mm length 22awg detachable servo leads included w/gold plated connectors
- Full metal gears and dual ball bearings
- Brushless motor
Available Servo Leads:
- PTK-3049: 70mm (2.75")
- PTK-3047: 150mm (5.91")
- PTK-3048: 300mm (11.81")
| Servo Model |
170SBL |
| Recommended Application | 1/10 to 1/8 Scale Surface |
| Operating Voltage | 4.8V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.09/60° sec |
| Operating Speed @ 7.4V |
0.08/60° sec |
| Dynamic Torque @ 6.0V |
458 oz-in (32.9 kg-cm) |
| Dynamic Torque @ 7.4V |
535 oz-in (38.5 kg-cm) |
| Motor Type |
Brushless Digital |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 72g |
| Pulse/Frequency |
1520?s / 333hz |
| Dimensions | 40x20x37.8mm |
| Length (Bottom to Mount) |
28.4mm |
