ToolkitRC M6AC LiPo 1-6S 15A AC/DC laadija

Tootekood: TK13800
EAN: 6972969830650
Kaubamärk:

Ühik: tk
Laoseis: Hetkel otsas

kuumaks al. 5,69 €

Hind:

66,90 €

Kirjeldus

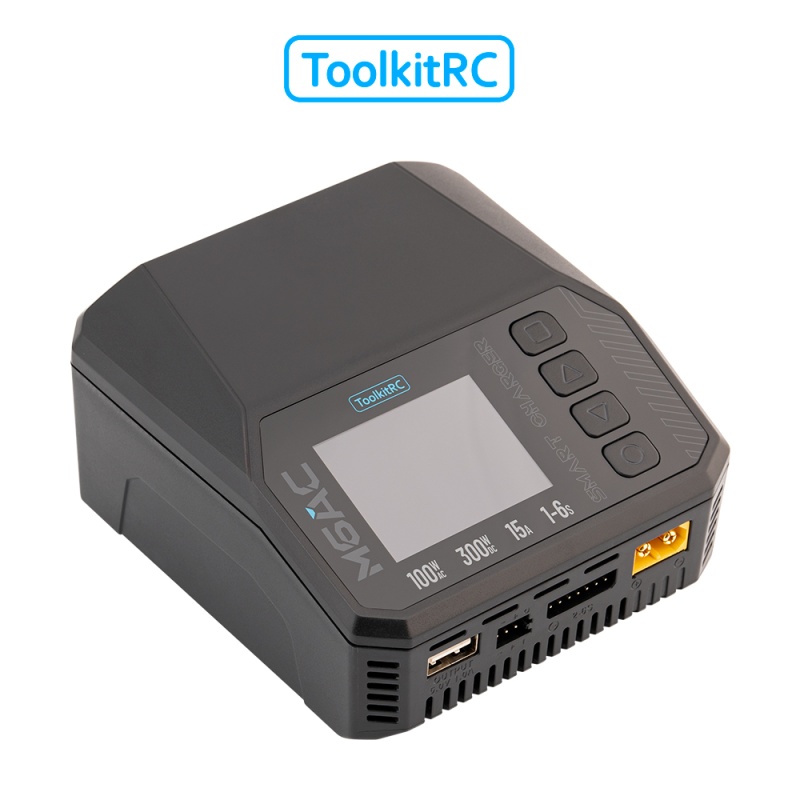

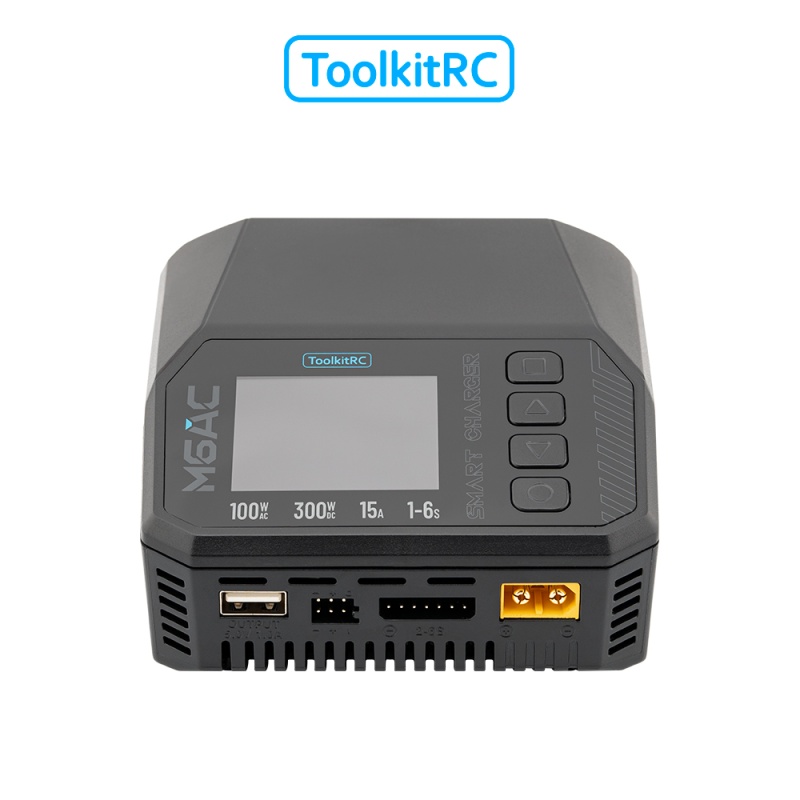

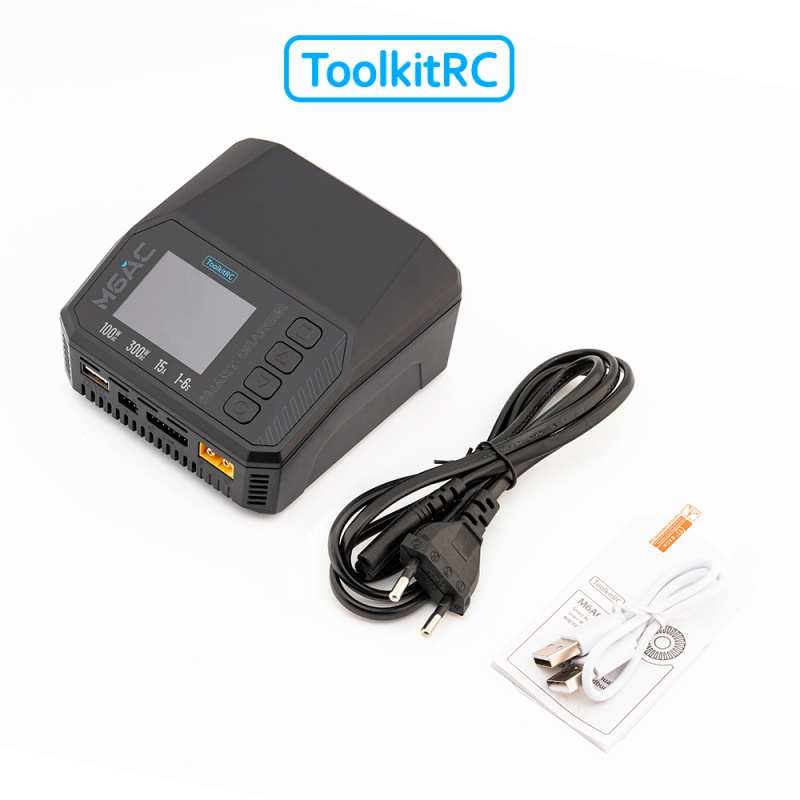

The ToolkitRC M6AC is a compact and versatile AC/DC charger suitable for up to 6-cell lithium batteries. It delivers up to 100W via the built-in AC power supply or up to 300W when powered by an external DC source, with a maximum charge/discharge current of 15A. In addition to fast and reliable charging, the M6AC offers a wide range of diagnostic and utility functions, along with precise battery maintenance.

Features:

Up to 300W (DC) or 100W (AC) charging power
Max. 15A charge/discharge current
Wide battery support: LiPo/LiHV/LiFe/Li-Ion/LTO (16S), NiMH (116S), Pb (110S)
Internal discharge up to 15W and recycle discharge (external) up to 300W
Multifunctional tools: signal tester (PWM/PPM/SBUS), wattmeter, adjustable CC/CV power supply (128V, 0.515A)
Battery voltage and internal resistance measurement, adjustable cutoff voltage (TVC)
Multiple protection features and multi-language user interface

Specifications:

Input voltage:	AC 100240V @ max. 120W \| DC 735V @ max. 30A
Charging power / current:	AC up to 100W, DC up to 300W \| 0.115A
Discharge (internal):	0.13A @ 15W (Normal mode)
Discharge (Recycle):	0.115A @ 300W (with external load)
Balancing current / accuracy:	1,000mA @ 4.2V \| < 0.005V
USB:	USB-A 5V / 1A (10W) or upgrade
Display:	2.0 IPS-LCD, 320×240 px

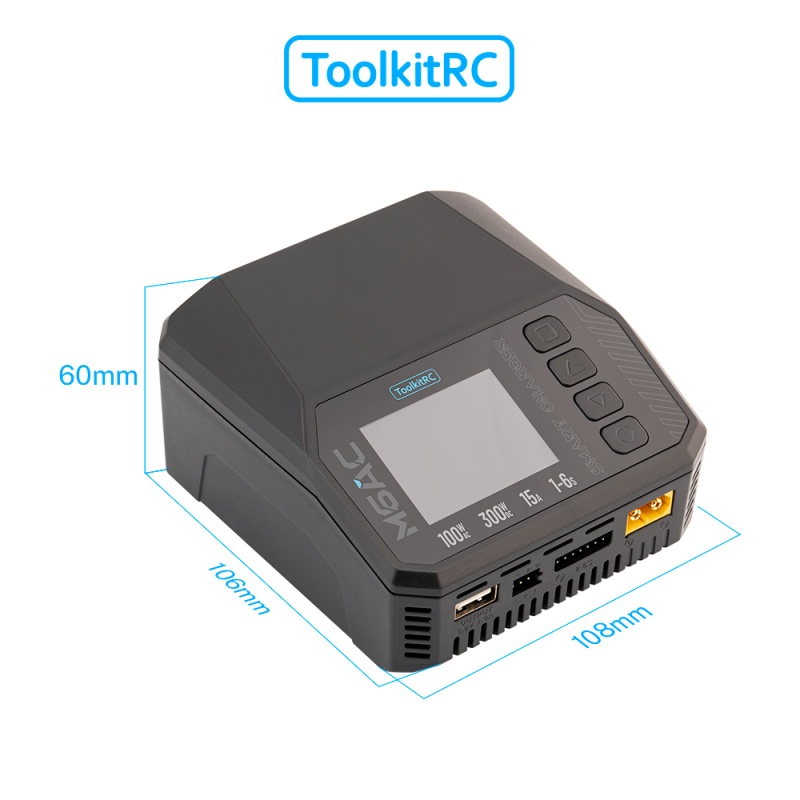

Dimensions:	108 × 106 × 60 mm
Weight:	approx. 350g
