DSSERVO BLS3235 Brushless 37KG/0.072sec@8.4V
SKU: DS014
EAN: 4046032111587
Unit: pc
In stock: 1
EAN: 4046032111587
Unit: pc
In stock: 1
Price:
34,90 €

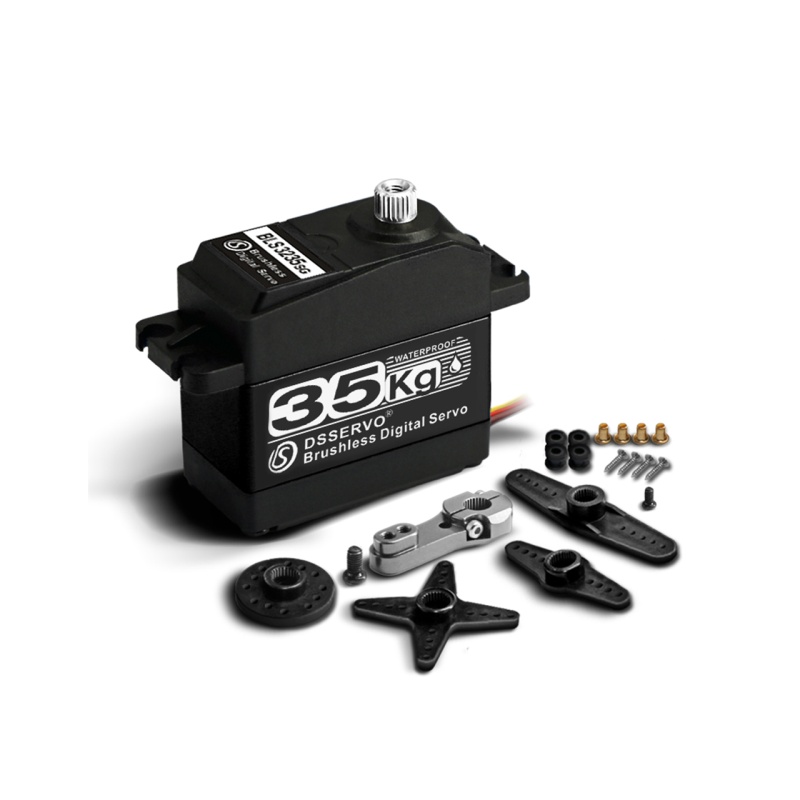

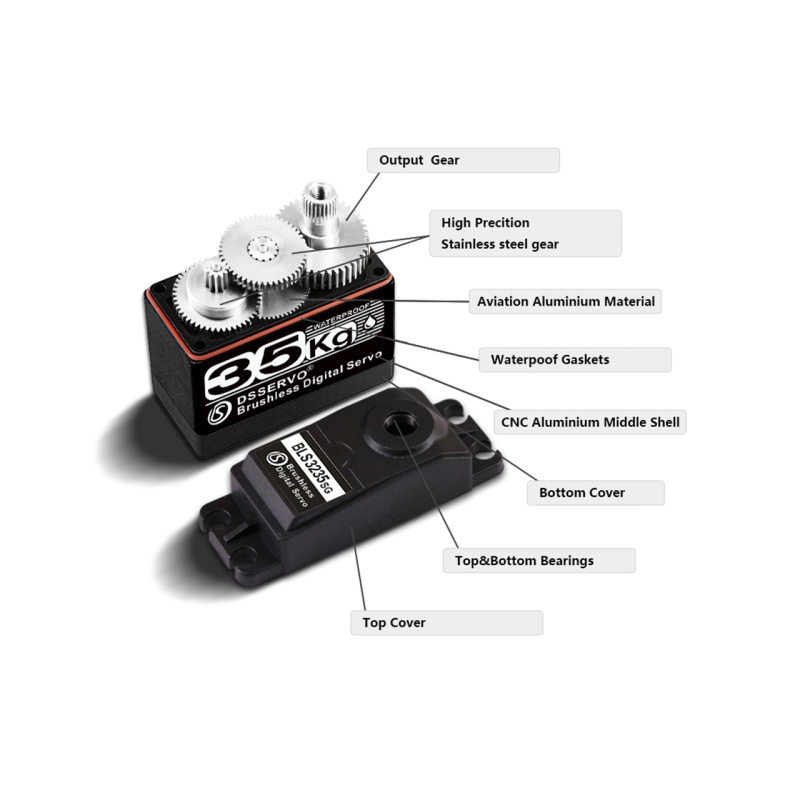

DSSERVO BLS3235 - Powerful Brushless Servo with IP67 Protection
Features:
- Durable brushless motor
- Up to 37 kgcm torque with only 0.072 sec/60° response time
- Dual ball bearings for smooth operation
- IP67-rated - dustproof and waterproof
- Supports 270° rotation range
- Digital PWM control with 2 µsec deadband
- Supports up to 8.4V operating voltage
Technical Specifications:
| Voltage: | 4.8 V | 6.0 V | 7.4 V | 8.4 V |
| Speed: | 0.11 sec/60° | 0.095 sec/60° | 0.08 sec/60° | 0.072 sec/60° |
| Stall Torque: | 23 kgcm | 28 kgcm | 33 kgcm | 37 kgcm |
| Motor: | Brushless | |||
| Gear Ratio: | 266 | |||
| Type: | Digital (PWM) | |||
| Control Frequency: | 50330 Hz | |||
| Bearings: | Dual | |||
| Dimensions: | 40 × 20 × 37.5 mm | |||
| Weight: | 60.0 g | |||
| Rotation Range: | 180° or 270° (5002500 µs) | |||
| Waterproof: | IP67 | |||
