SRT BH8015 Brushless Servo HV Low Profile 13.0kg/0.05sec @7.4V

SKU: BH8015
Brand:
Unit: pc
Qty: Out of Stock
Price:
89,90 €
Qty.: - +
   - or -

KEY FEATURES

&  Unique Mechanic Design
&  incredible efficiency and low power consumption
&  Standard dimension make it perfect for vehicles that can benefit from a high quality servo
&  CNC Machined aluminum case for exceptional cooling
&  HD 4096 Resolution
&  2 μsec Dead Band
&  Superior Holding Torque
&  1-Year Limited Warranty



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.055 sec/60 degrees at no load
operating speed (8.4v): 0.050 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive

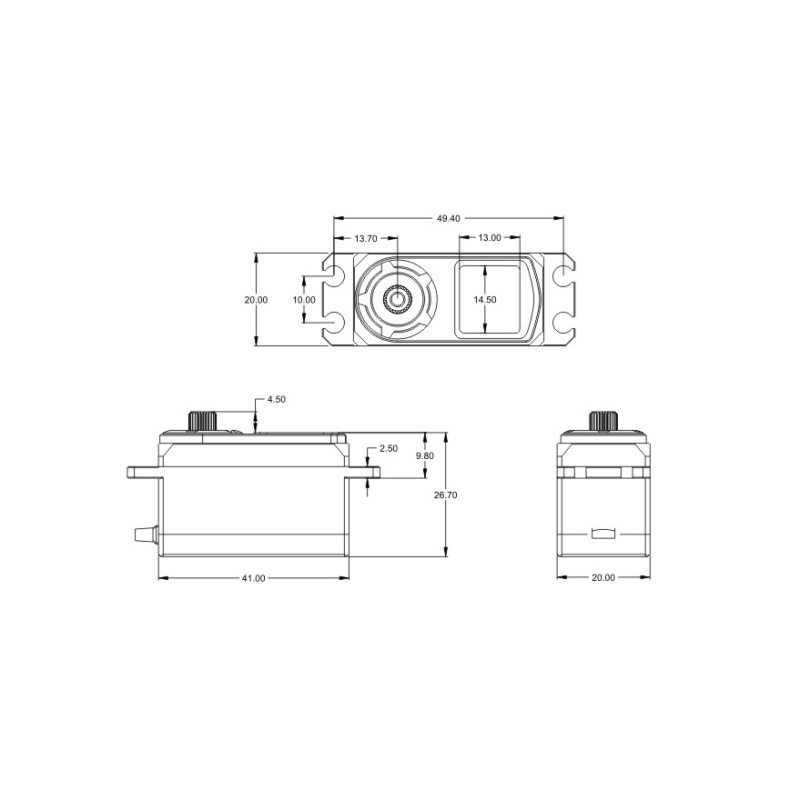

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm

Suitable for 1/10 on road & off road
