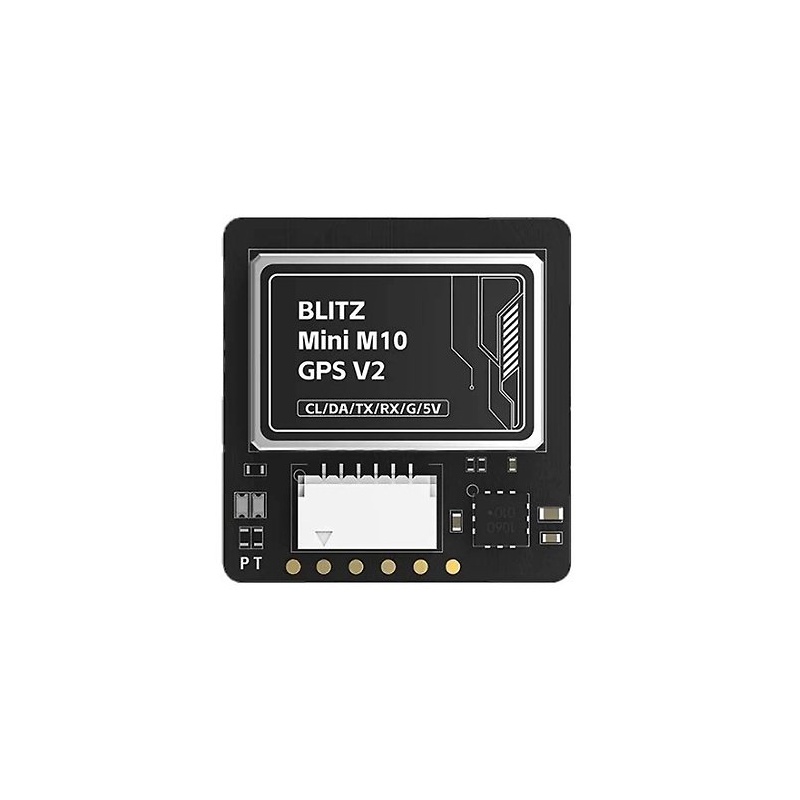

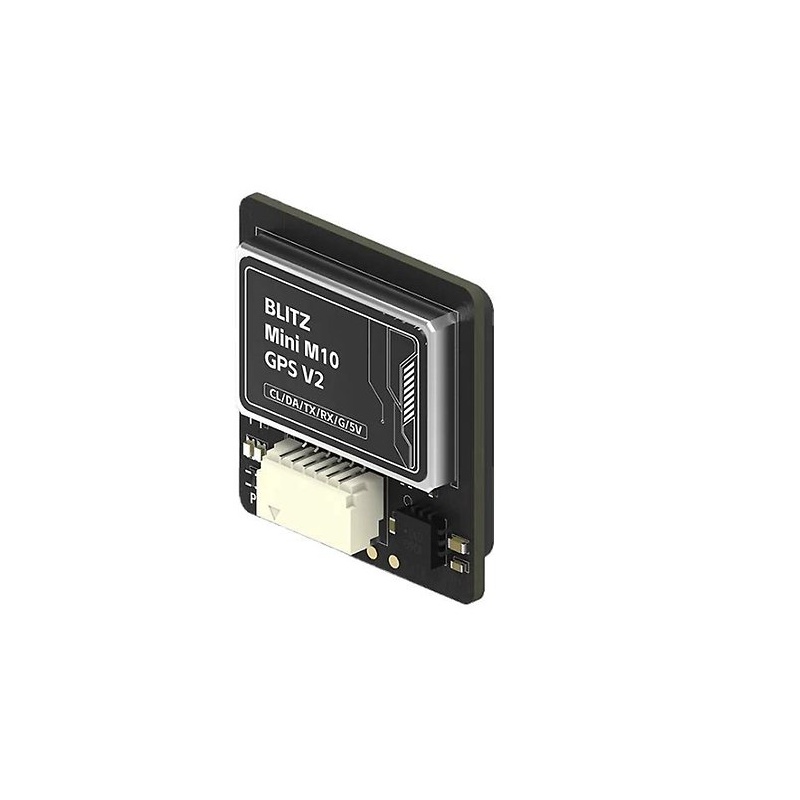

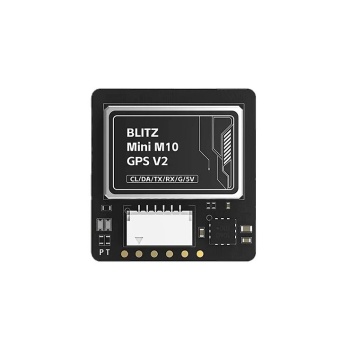

iFlight FPV BLITZ Mini M10 QMC5883L GPS Compass V2 20x21mm

Product description

The iFlight Blitz Mini M10 GPS V2 offers a precise and reliable GPS solution for FPV drones. Featuring an integrated QMC5883L compass and a highly sensitive 18x18mm patch antenna, this compact GPS module ensures fast and stable satellite acquisition. Ideal for pilots seeking enhanced GPS performance in a compact format.

Highlights

• Integrated low-noise amplifier, RF filter and TCXO

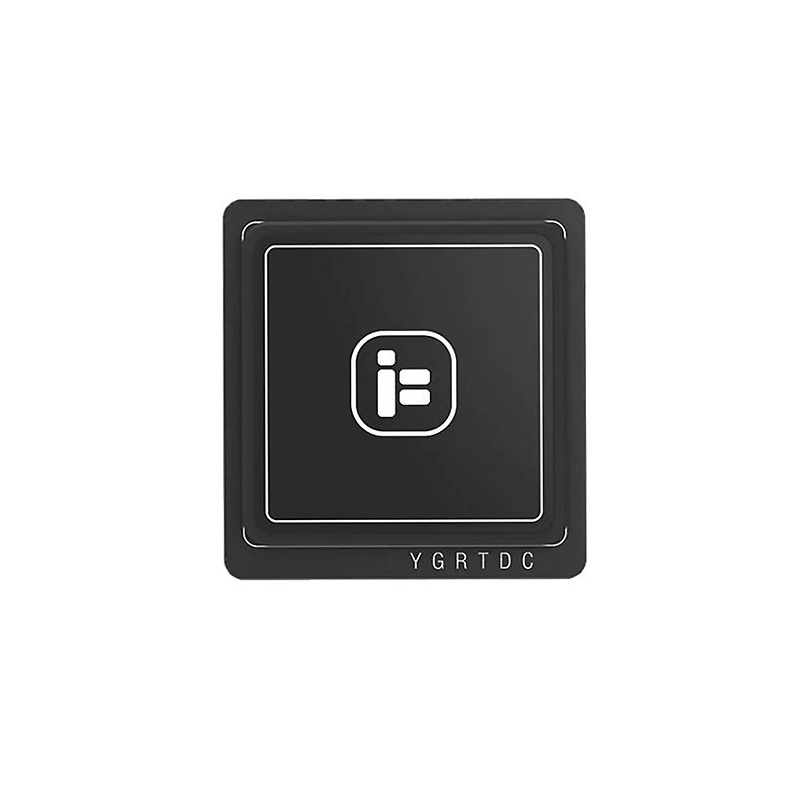

• 18.2x18.2mm GPS ceramic antenna
• Integrated Farad capacitor for fast warm start
• QMC5883L Integrated Compass Module
• 10 Hz refresh rate
• UBLOX M10 Chip
• Built-in flash memory

Specifications

• Baud rate: 9600bps-460800bps (default: 115200bps)
• GNSS: GPS+SBAS+Galileo+QZSS+GLONASS
• GPS patch antenna size: 18.2 x 18.2 x 4 mm
• Compass pin assignment: SDA/SCL
• Overall size: 20 x 21 x 8 mm
• GPS pin assignment: RX/TX UART
• Sensitivity: Tracking: -167dBm
• Compass module: QMC5883L
• Maximum acceleration: ≤ 4G
• Maximum altitude: 80000m
• Maximum speed: 500 m/s
• Speed ​​accuracy: 0.05 m/s
• Input voltage: 3.3-5.5 V
• Update rate: 10 Hz
• Cold start: 27s
• Warm start: 1s
• Weight: 8g
