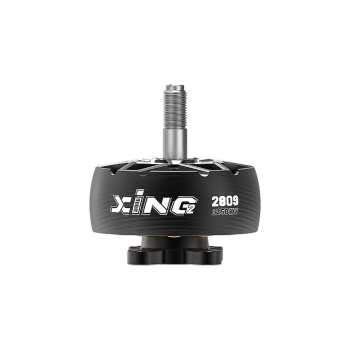

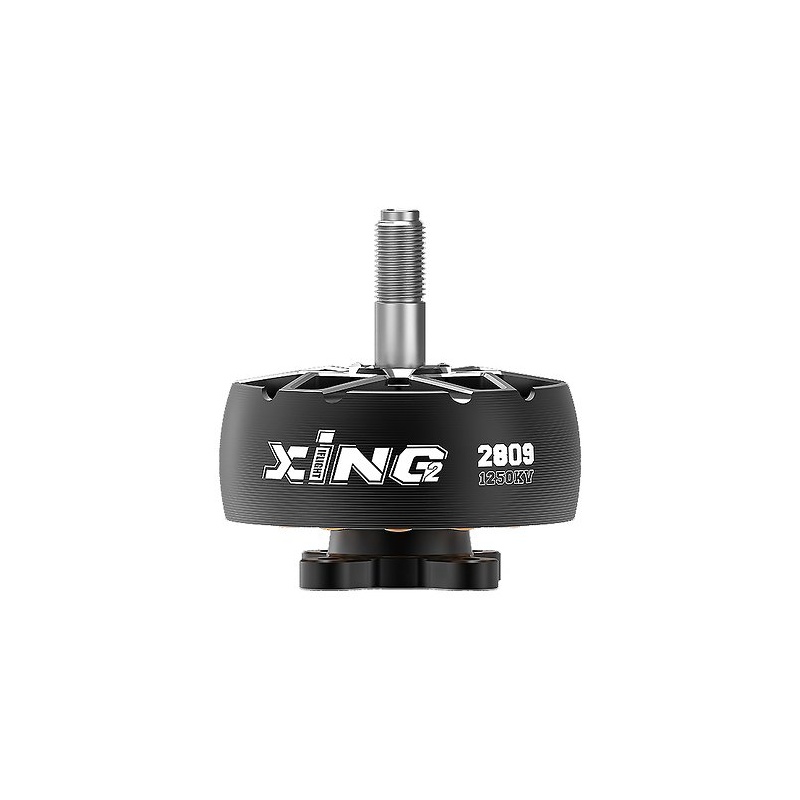

iFlight XING2 2809 1250KV FPV Motor Black

Product description

iFlight XING2 2809 1250KV FPV Motor Black

The smooth, reliable and powerful XING motors have been upgraded and we have achieved an even higher standard in our manufacture and better performance than ever before. New center slotted N52H arc magnets have been introduced to dramatically reduce motor response time! Perhaps the biggest bottleneck in our FPV flight control is the motor due to its ratio delay during deceleration and acceleration. XING2 motors offer faster response to translate your PID loop faster and achieve that locked-in feeling you've always been looking for!

Thanks to the high quality materials used and the durable connection between the bell and the shaft, we were able to keep the air gap of the magnet and the stator laminations to a minimum. The smaller the air gap, the lower the reluctance and the higher the magnetic flux (the magnetic analog of current), resulting in more efficiency and higher performance!

In early 2018, we started putting O-rings on the top between the motor bell and the stator. This acts like a damper if your bell or shaft has gone through a crash and keeps the bearing gap tight to reduce all the vibration induced by high RPM!

Features:

• 5 mm titanium alloy shaft, our strongest propeller shaft ever!
• Impact resistant 7075 aluminum bell housing
• Smooth running and durable NSK 11x5x5 bearings
• Center slotted N52H arc magnets
• XING O-ring bearing gap protection
• Protection for motor wires
• Dynamically balanced

Technical Data

• Model: XING2 2809
• KV: 1250
• Propeller shaft: CW thread
• Recommended input voltage Voltage: 4S-6S (16V-26V)
• Configuration: 12N14P
• Stator diameter: 35.33mm
• Weight: 60.7g with short wire
• Wire length: 18AWG 260mm
• Mounting pattern: 19*19mm

Contents

• 1x XING2 2809 Brushless Motor
• 4x M3x8 screws
• 1x M5 flange nut
