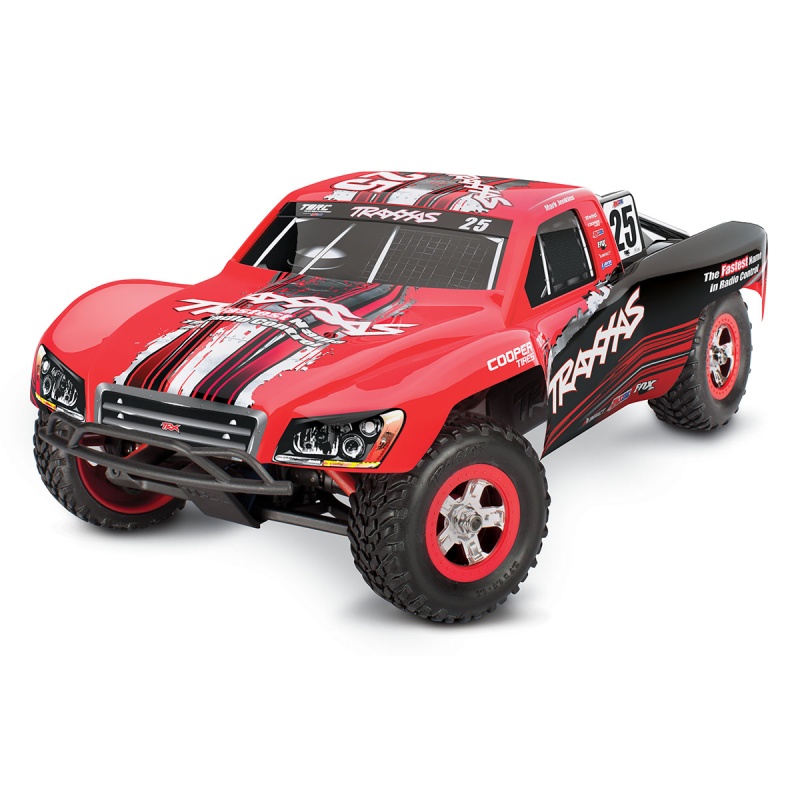

TRAXXAS Slash 4x4 1/16 RTR Brushed 2.4GHz +12V-charger

SKU: TRX70054-1
EAN: 0020334700612
Brand:

Unit: pc
In stock: Temporarily out of stock.

Price:

249,00 €

1/16 SLASH 4X4 (#70054-1) SPECS

Length:		14" (356mm)
Front Track:		7.3" (185mm)
Rear Track:		7.3" (185mm)
Weight:		35oz (1000g)
Height (overall):		4.92" (125mm)
Wheelbase:		8.1" (206mm)
Front Shock Length:		48mm
Rear Shock Length:		48mm
Front Tires (pre-glued):		Slash All-Terrain 1.6"
Rear Tires (pre-glued):		Slash All-Terrain 1.6"
Front Wheels:		Dual-bead 35/47mm, 12mm hex hub
Rear Wheels:		Dual-bead 35/47mm, 12mm hex hub
Electronic Speed Control:		Waterproof XL-2.5 ESC
Motor (electric):		Titan^® 12T 550
Transmission:		Heavy-Duty with Steel Idler Gear
Gear Ratio (internal):		5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio:		7.32:1 (stock, out-of-box)
Differential Type:		Hardened Steel Bevel, Sealed
Gear Pitch:		48-Pitch
Chassis Structure/Material:		Molded Composite Nylon Monocoque
Brake Type:		Electronic
Drive System:		Shaft-Driven 4WD
Steering:		Bellcrank
Radio System:		Traxxas TQ™ 2.4GHz (2-Channel)
Skill Level:		2
Included Batteries:		6-cell Power Cell iD NiMH battery with 2amp Peak Detecting DC Charger
Required Batteries:		4 "AA" (transmitter)
*Max dimensions reflect a battery that is the length of the entire battery tray, but due to the tray shape and design, the height and width of the battery must be decreased.
**One 6-cell pack included with model. Additional 6-cell NiMH battery pack sold separately.

XL-2.5 WATERPROOF ESC SPECIFICATIONS

Input Voltage:		4-7 Cells NiMH, 2 Cells (2S) LiPo
Case Size:		26.5mm W x 46.5mm D x 22mm H
Weight:		33 Grams
Motor Limit:		10-turns*
On Resistance (@Trans):		0.008 Ohms
Reverse Delay:		None
BEC Voltage:		6.0V DC
Power Wire:		16 Gauge / 40mm
Input Harness Wire:		26 Gauge / 130mm
Motor Wires:		26 Gauge / 130mm
Transistor Type:		MOSFET
Low Voltage Detection:		2-Stage indicators, switchable (on and off)
PWM Frequency:		2300 Hz
Thermal Protection:		Thermal shutdown
Profile selection:		Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:** 50% FWD, 100% brakes, 50% REV
Single-button setup:		Yes, Traxxas EZ-Set^®
For full details, click here.		Properly geared *Patented

MODEL 70054-1: 1/16 Slash 4X4 (brushed), fully assembled, Ready-To-Race^® with TQ™ 2.4GHz radio system, Titan^® 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH iD battery, 2amp peak detecting DC charger, and Race Replica painted bodies.
