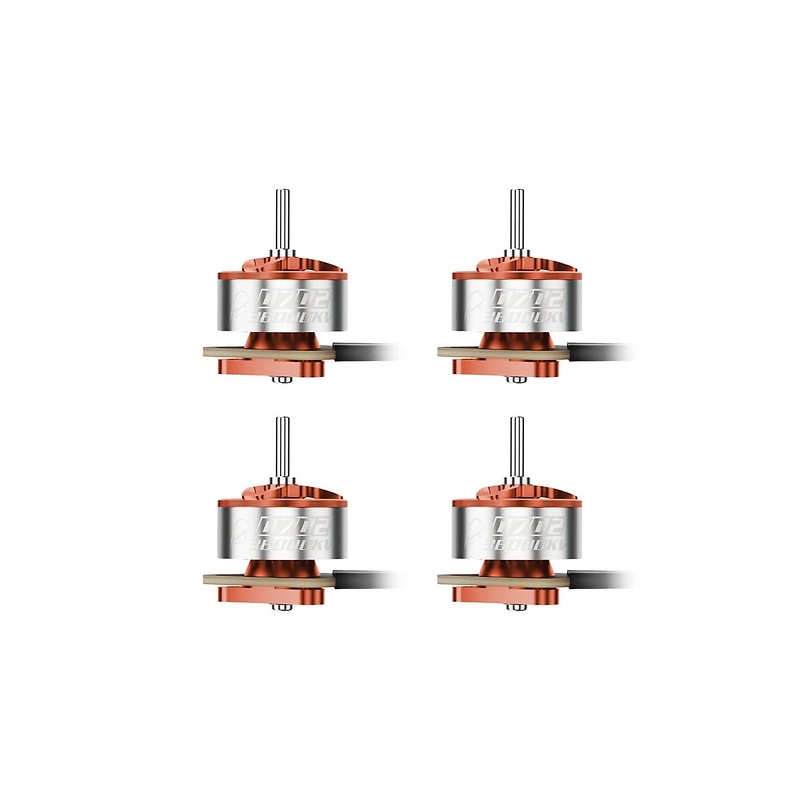

BetaFPV 0702 36000KV FPV Motor Champion 4 pieces

SKU: BET-01050025-1
EAN: 0795986631170
Brand:
Unit: Set
In stock: Temporarily out of stock.
Price:
54,90 €
Qty.: - +
   - or -

Product description


The BetaFPV 0702 Champion 36000KV motor was specially developed for micro FPV racing drones and ultra-light Tiny Whoops. This powerful brushless motor delivers extreme RPM, explosive acceleration and instant throttle response - perfect for professional FPV racing and high-speed flying.

Equipped with the industry's first ultra-thin 0.10 mm stator core, the motor reduces magnetic losses and significantly improves energy efficiency. As a result, less heat is generated and performance remains constant even during intensive racing flights. The result is a demonstrable increase in efficiency of around 0.1-0.2 g/W.

The motor has been specially tuned for the Champion version of micro FPV platforms and delivers maximum power with minimum weight. Double ball bearings ensure particularly smooth running and a long service life - even during aggressive maneuvers and frequent crashes.

Thanks to the reinforced rotor structure and optimized shaft design, the motor offers high crash resistance. At the same time, the weight remains extremely low, making it ideal for ultra-light whoop and micro FPV builds.

Weighing just 1.59 g per motor, the BetaFPV 0702 Champion motor is one of the lightest and most powerful motors in its class and offers an excellent combination of performance, efficiency and durability.



Technical specifications

General specifications
  • Model: BetaFPV 0702 Champion
  • KV value: 36000KV
  • Maximum power: 27.53 W
  • Maximum current: 7.17 A
  • Rated voltage: 4.2 V (1S)

Construction
  • Bearing type: Double ball bearing
  • Stator core: 0.10 mm ultra-thin core
  • Shaft diameter: 1.0 mm
  • Shaft length: 3.4 mm

Connection
  • Wire gauge: 30 AWG
  • Cable length: 35 mm
  • Connector: JST1.25 3-pin

Mounting
  • Mounting: 3 × M1.4
  • Bolt circle: Ø 6.6 mm

Weight per motor
  • Weight per motor: 1.59 g

Scope of delivery
  • 4× BetaFPV 0702 Champion 36000KV Motor (Orange)
  • 12× M1.4 × 3 screws
