DSSERVO CLS3335 Coreless Metal 45kg/0.095sec@8.4V
SKU: DS021
EAN: 4046032111655
Brand:
Unit: pc
In stock: Temporarily out of stock.
EAN: 4046032111655
Brand:
Unit: pc
In stock: Temporarily out of stock.
Price:
38,90 €

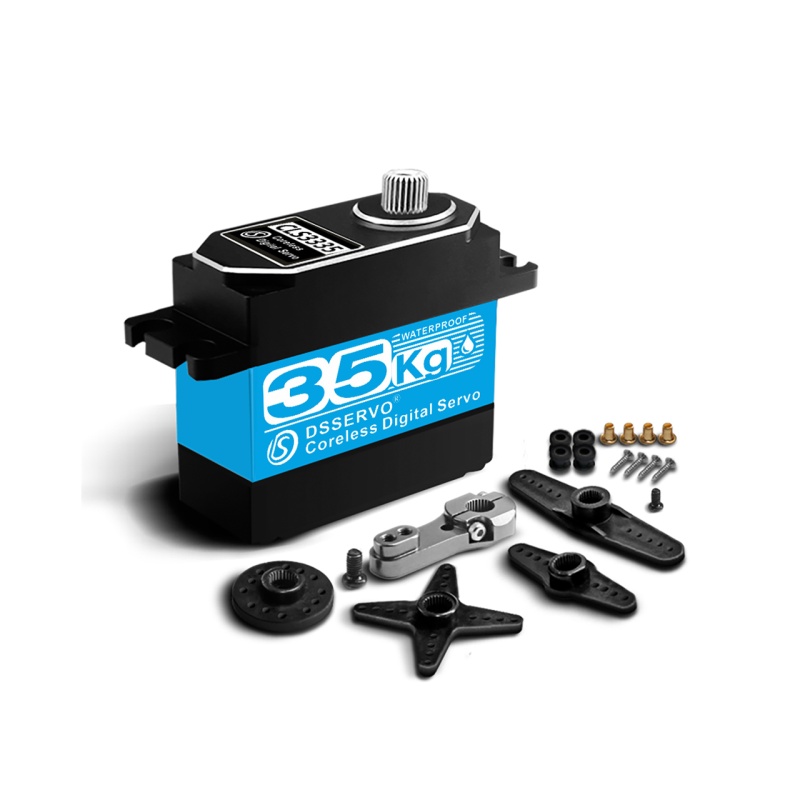

DSSERVO CLS3335 - Compact Coreless Servo with up to 39 kg·cm Torque
Features:
- Coreless motor for high speed
- Torque up to 45 kg·cm at 8.4V
- Full metal housing made of stainless steel & aluminum
- Fast response: up to 0.095 sec/60°
- Precise control with 2µsec deadband
- PWM compatible, frequency: 1520µs / 333Hz
Technical Specifications:
| Voltage: | 5.0V | 7.4V | 8.4V |
| Torque: | 31 kg·cm | 41 kg·cm | 45 kg·cm |
| Speed: | 0.16 sec/60° | 0.11 sec/60° | 0.095 sec/60° |
| Motor: | Coreless | ||
| Gears: | Stainless Steel & Aluminum | ||
| Dimensions: | 40 × 20 × 40.5 mm | ||
| Weight: | 60 g | ||
| Frequency: | 1520µs / 333Hz | ||
| Deadband: | 2µsec | ||
