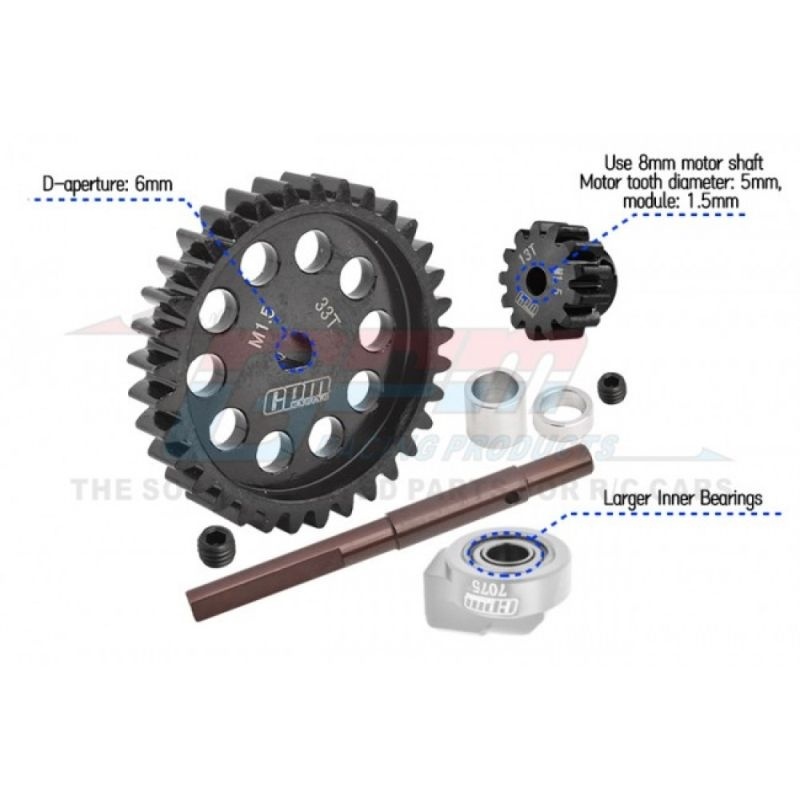

GPM 40Cr Carbon Steel M1.5 Spur 33T + Motor gear 13T (X-MAXX, XRT)

Packaging Includes:
Motor gear 13T-1pc
4x5 Screw shaft-1pc
Spur gear 33T M1.5-1pc
Cush drive input shaft-1pc
Bearing 6x13x5-1pc
shim 6x8x3.5-1pc
shim 6x8x7.5-1pc
Set Screws 5x5-1pc
Aluminum 7075 mount-1pc

The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
Motor tooth diameter: 5mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 13T,tooth surface width: 9mm.
Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm.
