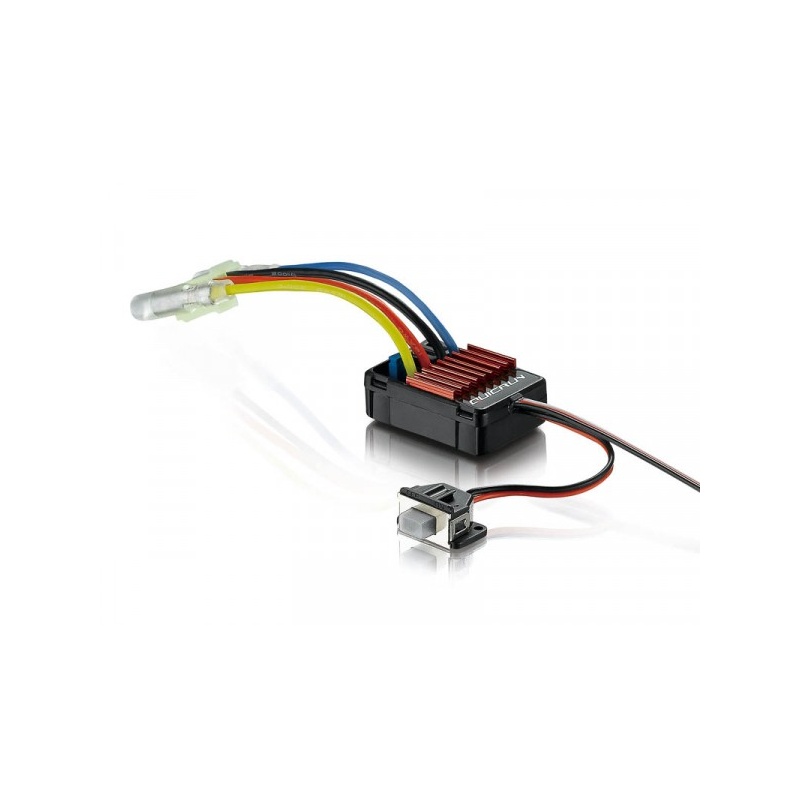

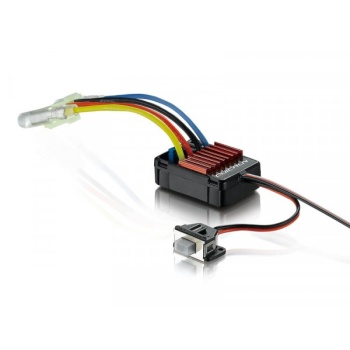

Hobbywing QuicRun 1625 Brushed ESC 25A for 1:16, 1:18

SKU: HW30120000
EAN: 6938994413039
Brand:
Unit: pc
In stock: 1
Price:
30,40 €
Qty.: - +
   - or -
Product information "Hobbywing QuicRun 1625 Brushed ESC 25A for 1:16, 1:18"

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Features

  1. Water-proof and dust-proof, suitable for all-weather condition races.
  2. Small size with built-in capacitor module.
  3. Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
  4. Great current endurance capability.
  5. Switch mode built-in BEC has powerful output.
  6. Automatic throttle range calibration, easy to use.
  7. Easy to set the ESC parameters with jumpers.
  8. Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

Specifications

  • Fwd. Cont. / Peak Current: 25A / 100A
  • Rev. Cont. / Peak Current: 25A / 100A
  • Voltage Range: 2-3S Lipo or 5-9 NiMH
  • Cars: 1/18 & 1/16
  • Applicable:
    • Touring Car
    • Buggy
    • Short Course Truck
    • Monster
    • Truggy
  • Motor Limit:
    • 2S Lipo or 6 cells NiMH: 280, 370, 380 Size Motor: = RPM<30000 @7.2V
    • 3S Lipo or 9 cells  NiMH: 280, 370, 380 Size Motor: = RPM<20000 @7.2V
  • Resistance: Fwd 0.003O / Rev 0.003O
  • BEC Output: 1A/5V (Linear Mode)
  • PWM Frequency: 1KHz
  • Dimension / Weight: 34*24*14 / 23,5g
  • Cooling Fan: No


The battery type can be programmed by jumper.

  • Battery Type: Lipo / NiMH
