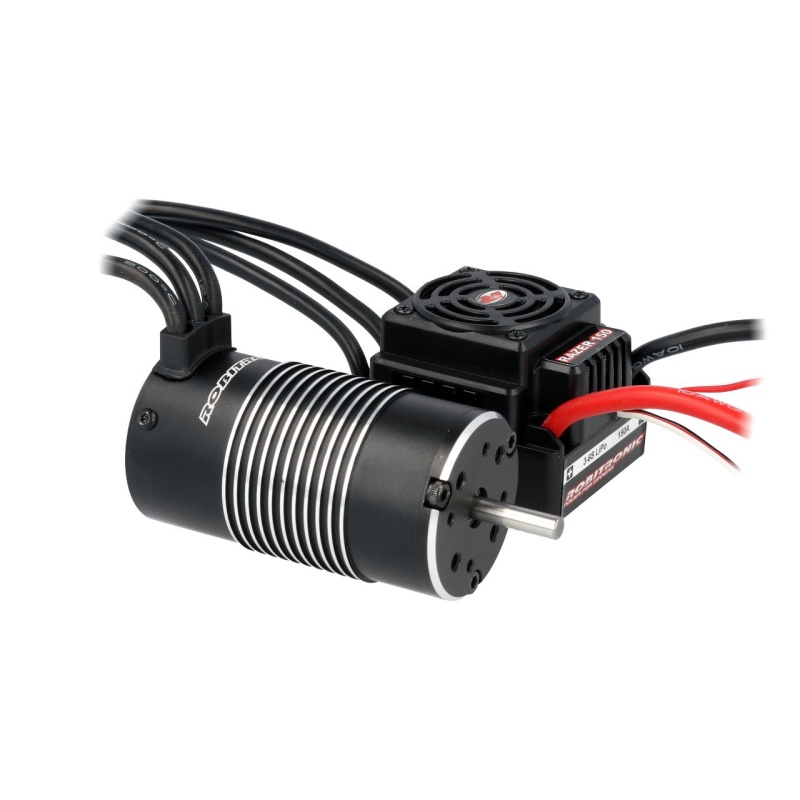

Robitronic Razer Eight Brushless Combo 150A 4268 1900kV

SKU: R01261
EAN: 4046032087387
Brand:
Unit: Set
In stock: 1
Price:
157,58 €
Qty.: - +
   - or -

The Razereight 150A controller has all the important features and setting options on board that an ambitious 1/8 pilot would like. The outstanding quality gives you a controller with the highest reliability and best efficiency for use in all 1/8 classes.

All cables are already wired ready for connection to the controller, no soldering required.
Battery connection: T-plug,
Motor connection: 4mm sockets

Characteristics:

    Fully waterproof and dustproof
    ON / OFF switch with setup button
    S-BEC with 6V and 5A peak current
    Plug and play, battery and motor connector already soldered
    Multiple protection devices: undervoltage shutdown, thermal protection and protection against signal loss.
    Easy programming using the setup button
    Separate programming port, easy connection of the LED program card (optional)

Technical specifications:
Constant / peak current: 150A / 950A
Type: Sensorless
Motor limit: 4s LiPo: 4274 motor, <= 3000KV
6s LiPo: 4274 motor, <= 2400KV
Internal resistance: 0.00035 ohms
LiPo / NiMH battery pack: 3-6s LiPo / 8-18 cells MiMH
S-BEC: 6V / 5A
Programming port: yes
Dimensions LxWxH: 59.5x48x42mm
Weight: 178g
Application: 1/8 on and off road


Razereight motor 4268 1900KV:

The Razereight is a high performance sensorless motor designed for maximum performance. High torque and perfect power delivery make the engine the first choice for your model.

Characteristics:

    4-pole rotor design for high torque and quick response
    CNC machined, high-strength aluminum housing for optimal heat dissipation
    Motor winding made of pure, double insulated copper wire
    Precision ball bearings for smooth running and durability
    Highly flexible silicone connection cable with soldered 4mm plugs
    High-strength and polished 5mm rotor shaft made of steel

Technical specifications:
Article no .: R01241
Idle speed: 1900KV
LiPo cells: 2s-6s
Pole: 4
Shaft diameter / length: 5mm / 18mm
Dimensions D / L: 42mm / 68mm
Weight (including cable) 348g
Application: 1/8 buggy, truck, monster truck


Scope of delivery:

1x controller fully wired with battery connector and motor connection
1x motor ready for connection with 4mm plug
1x instructions
