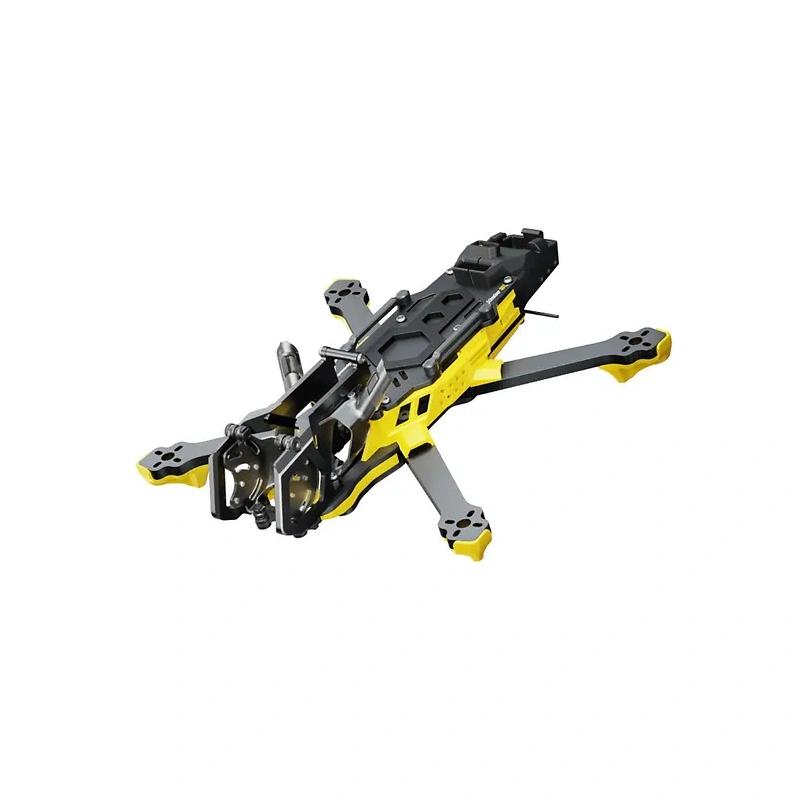

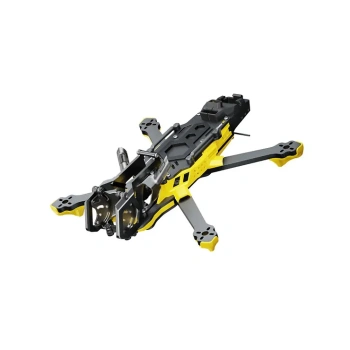

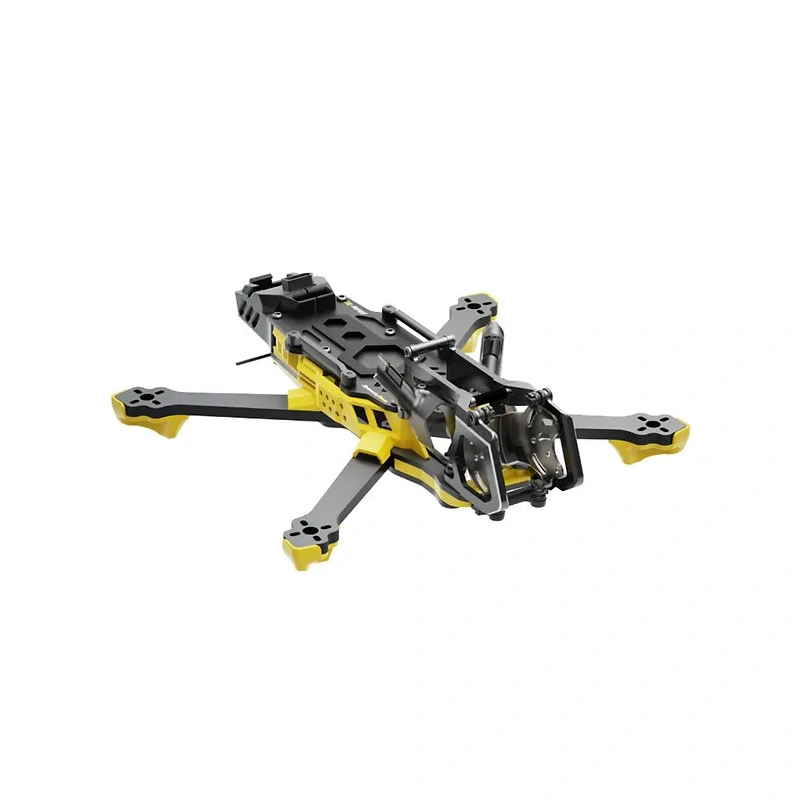

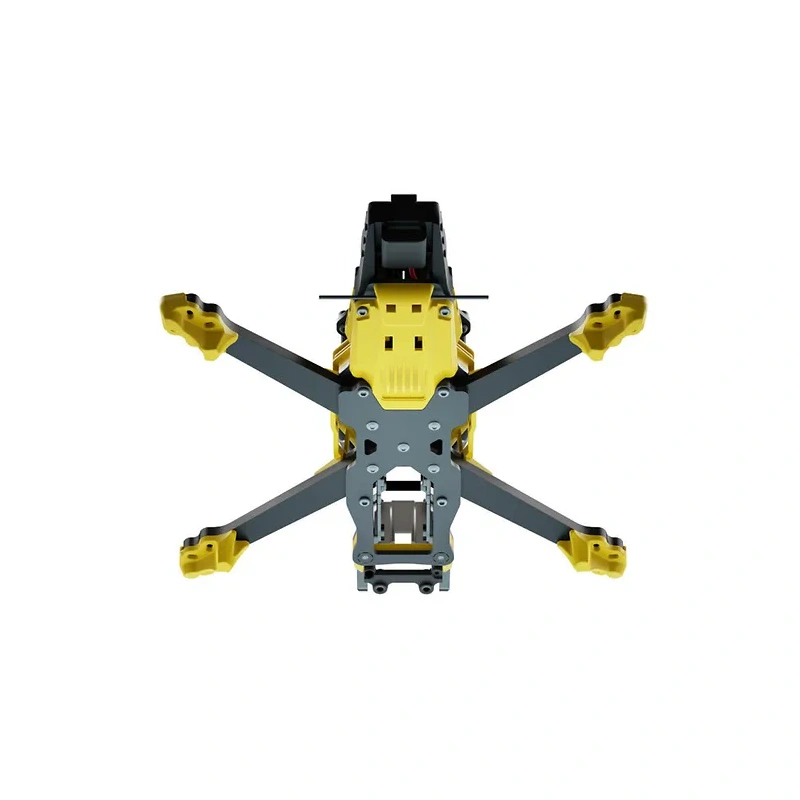

SpeedyBee Master3X V2 3-inch O4 Pro FPV Frame
SKU: SB-MASTER3X-FRM-O4P-N
EAN: 4262556461582
Brand:
Unit: pc
In stock: Temporarily out of stock.
EAN: 4262556461582
Brand:
Unit: pc
In stock: Temporarily out of stock.
Price:
55,00 €
Product description
The Master 3X Modular Frame offers the classic modular system in a refined form—the standalone VTX unit with a modular design reduces your costs, is compatible with the Bee25 and other models, and provides more design freedom than ever before! The unique, balanced head mount ensures a clear propeller path, so you can fly safely without any contact; the new X-Frame with a low center of gravity is stable, responsive, and offers excellent control!
Specifications
- Frame: SpeedyBee Master3X frame

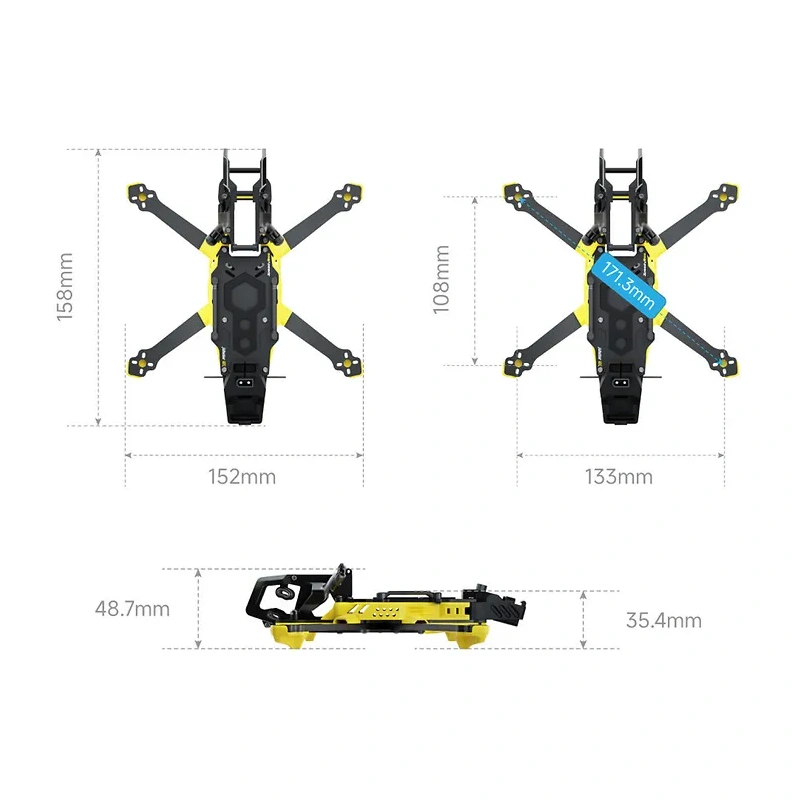

- Wheelbase: 171 mm
- Carbon plate thickness:
- Top plate: 2.0 mm
- Middle plate: 2.0 mm
- Bottom plate: 2.0 mm
- Arm: 4.0 mm
- Camera mounting distance: 19 / 20 mm
- Stack installation height: 11 mm
- Stack mounting holes: 25.5 × 25.5 mm
- Compatible VTX: O4 Pro aluminum alloy head (O4Pro)
- Propeller size: 3–3.6 inches
- Motor mounting holes: 9–12 mm
- Weight: 87 ± 2 g (without head)
- Recommended motor: 1507 / 1804 / 2004 / 2006 / 2105.5
- Recommended KV: 4S 3000–3600 kV / 6S 2200–2750 kV
- Maximum supported battery size: 67 mm (L) × 31 mm (W) × 40 mm (H)
- Recommended battery: 4S LiPo / LiHv 750 mAh–1100 mAh / 6S 650–850 mAh
- Supported GPS size: 18.1 × 18.1 mm (other sizes require replacement of 3D printed parts)
Scope of delivery
- 1× SpeedyBee Master3X V2 3-inch O4 Pro FPV Frame
