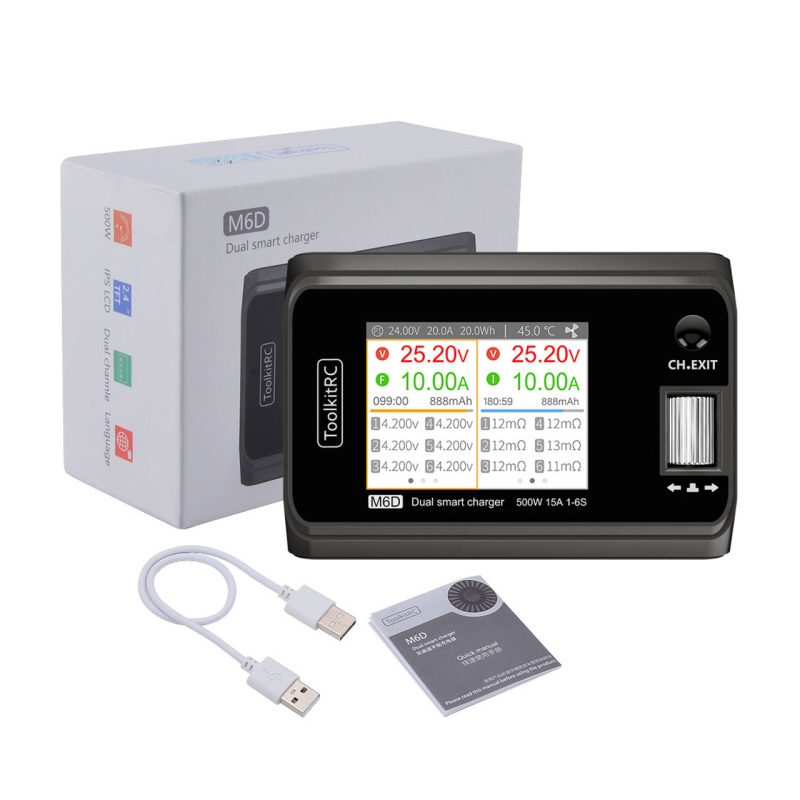

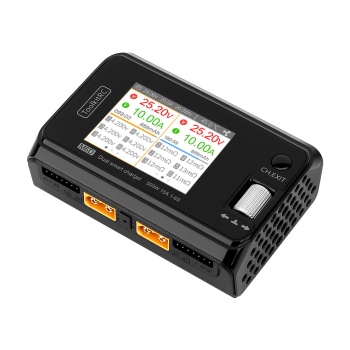

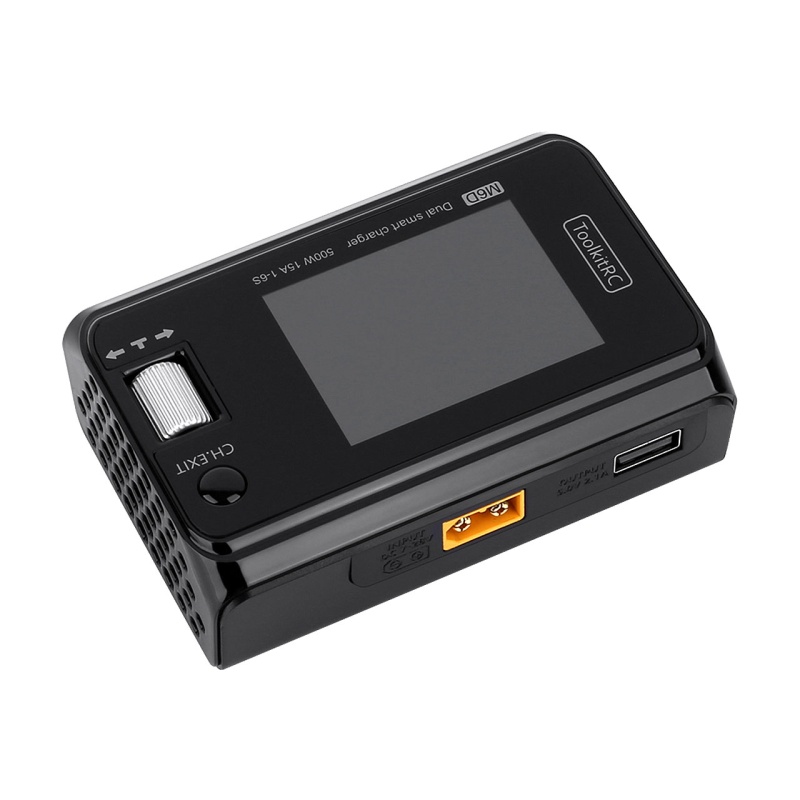

ToolkitRC M6D LiPo 1-6S 15A Duo Charger DC 7-28V
EAN: 6972969830001
Brand:
Unit: pc
In stock: 1
The M6D charger is smaller, lighter and almost as powerful as the M6DAC charger. With the two available charging channels and the helpful features for discharging, cyclic charging and general settings, You can hardly go wrong with this smart dual device. Due to the special design, the charger is even able to not only supply two batteries with new energy. This charging process can take place both synchronously and asynchronously with the M6D and that is what makes this charger so versatile.
This means that if, for example, two batteries are charged in synchronous mode, the actual charge is the same and the charger can thus provide the maximum charging current of up to 25A. In asynchronous mode, on the other hand, both batteries are charged separately and therefore only a current of max. 15A is possible here.
Features:
- Up to 500W charging power and maximum 25A charging current
- Max. 250W discharge power
- Including DC input (7-28V)
- Simple usage with scroll wheel and one button
- Multilingual user interface including voice output
- Upgradeable via USB
- Various security controls
Technical Specifications:
| Input Voltage: |
DC 7-28V, max. 30A
|
| Charge Power: | 0.1-15A, 250W x2 (Asynchrone Mode) 0.1-25A, 500W (Synchrone Mode) |
| Discharge Power: | 0.1-15A, 250W x2 (Recycle Mode) 0.1-3A, 12W x2 (Normal Mode) |
| Charging Accuracy: | <0.005V |
| USB C: | 2.1A, 5V (or Upgrade) |
| Balance Current: | 800mA, 2-6S |
| Cells LiPo/LiFe/LiIon/LiHV | 1-6S |
| Cells: NiMH/NiCd | 1-16S |
| Pb Battery Voltage: | 1-10S |
| Voltage: | 1.0V-5.0V, 1-6S |
| Display: | IPS 2.4'' 320x240px LCD |
| Dimensions: | 98x68x35mm |
| Weight: | 220g |
Delivery:
1x M6DAC Charger
1x Power cable
1x USB to USB-C cable
1x Display protection
1x Manual (English)
