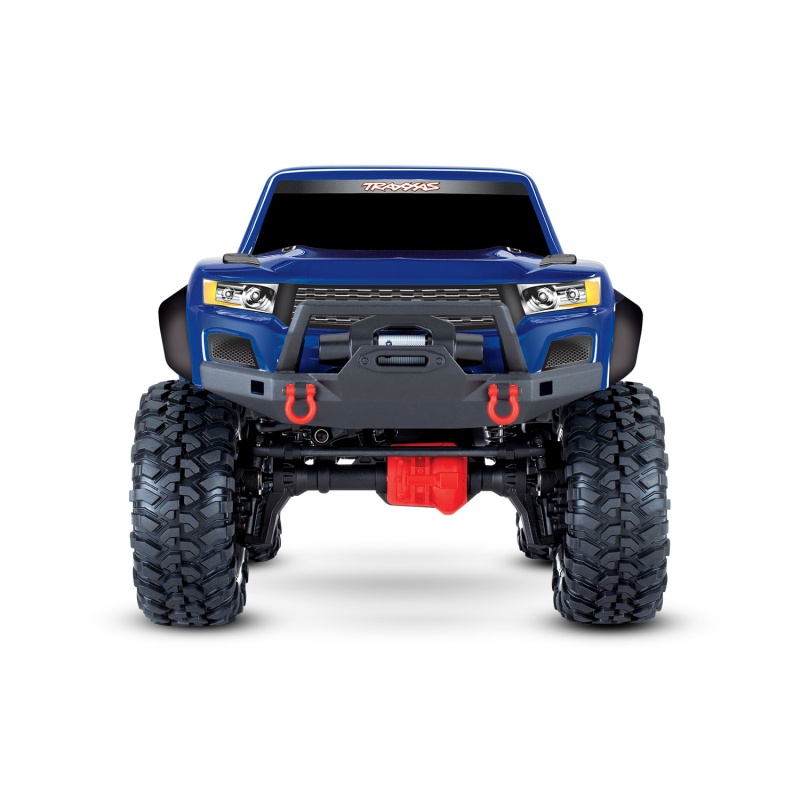

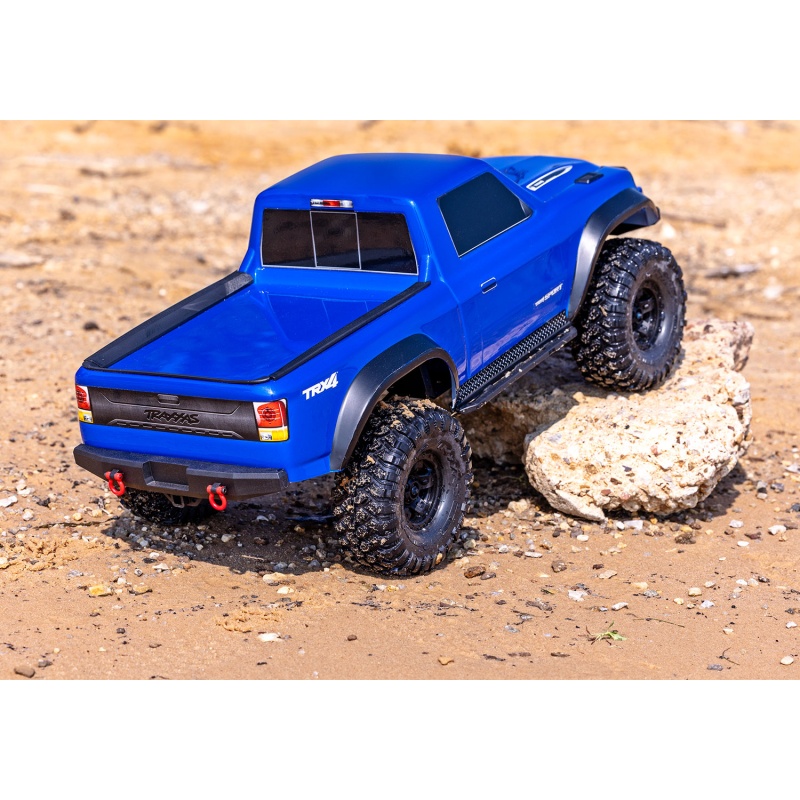

Traxxas TRX-4 SPORT Clipless, Blue (w/o battery and charger)

SKU: TRX82224-4BLUE
EAN: 020334019714
Brand:

Unit: Set
In stock: 1

kuumaks al. 32,22 €

Price:

379,00 €

Video

Description

Specs

Length:	21.93 inches (557mm)
Front Track:	9.78 inches (249mm)
Rear Track:	9.78 inches (249mm)
Ground Clearance:	3.14 inches (80mm)
Weight:	5.79lb (2.63kg)
Height:	9.47 inches (241mm)
Wheelbase:	12.28 inches (312mm)
Approach Angle:	58.82°
Departure Angle:	45.83°
Breakover Angle:	58.93°
Front Shock Length:	3.54 inches (90mm)
Rear Shock Length:	3.54 inches (90mm)
Front Wheels:	1.9 x 1.02 inches (49 x 26mm)
Rear Wheels:	1.9 x 1.02 inches (49 x 26mm)
Front Tires:	4.64 x 1.89 inches (118 x 48mm)
Rear Tires:	4.64 x 1.89 inches (118 x 48mm)

Hex Size:	12mm
Speed Control:	XL-5 HV
Motor (electric):	21T Reverse Rotation
Transmission:	Single Speed
Gear Pitch:	32P
Differential Type:	Spool (no differential)
Chassis Structure / Material:	Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft Driven 4WD
Steering:	Chassis Mounted Servo
Servo:	2075X Metal Gear
Transmitter:	TQ™ 2.4GHz 2-Channel Transmitter
Receiver:	6519
Skill Level:	2
Battery Tray:	158.75 L x 47 W x 23/26mm H

What’s In The Box:

TRX-4, Ready-To-Drive® model
XL-5 HV waterproof electronic speed control
Titan™ 21T reverse rotation motor
TQ™ 2.4GHz radio system
High quality maintenance tools

What You’ll Need:

Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Features
- Tough, Lightweight Pickup Truck Body
  - Low profile bumpers for increased clearance
  - Red differential covers and D-rings
- Trail-Tuned XL-5 HV Waterproof Electronic Speed Control

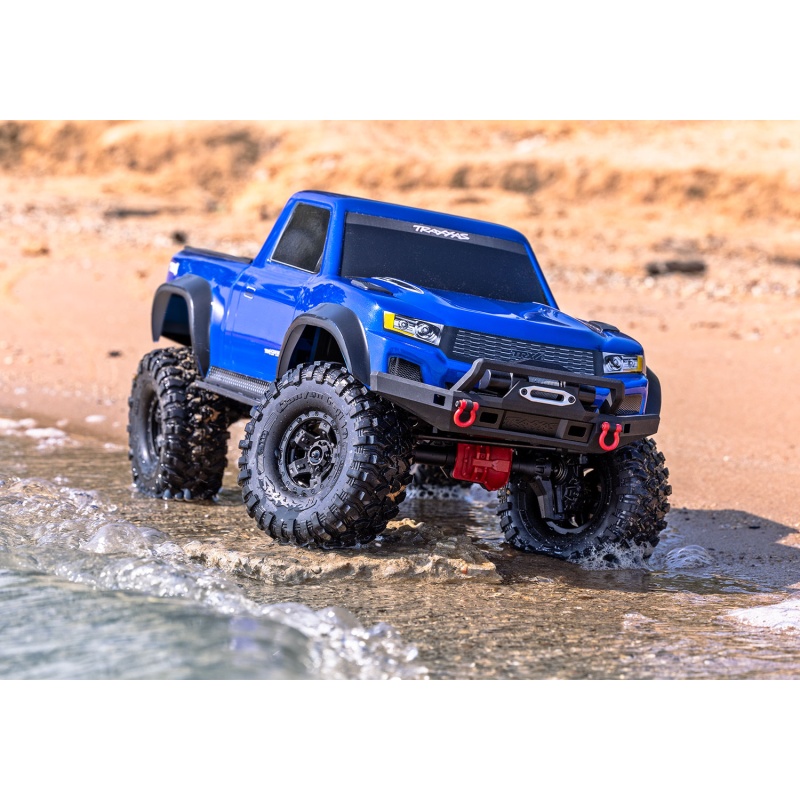

  - Fully waterproof design
  - Five drive profiles
    - Sport Mode — forward / brake / reverse
    - Race Mode — forward / brake / no reverse
    - Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
    - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
  - Traxxas EZ-Set® one-button setup
  - Large, efficient heat sink
  - Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
  - Two stage low voltage protection (LVD)
- Motor
  - Powerful Titan™ 21T reverse rotation motor with internal cooling fan
  - Precise preset gear mesh adjustments
  - Motor retention separate from gear mesh

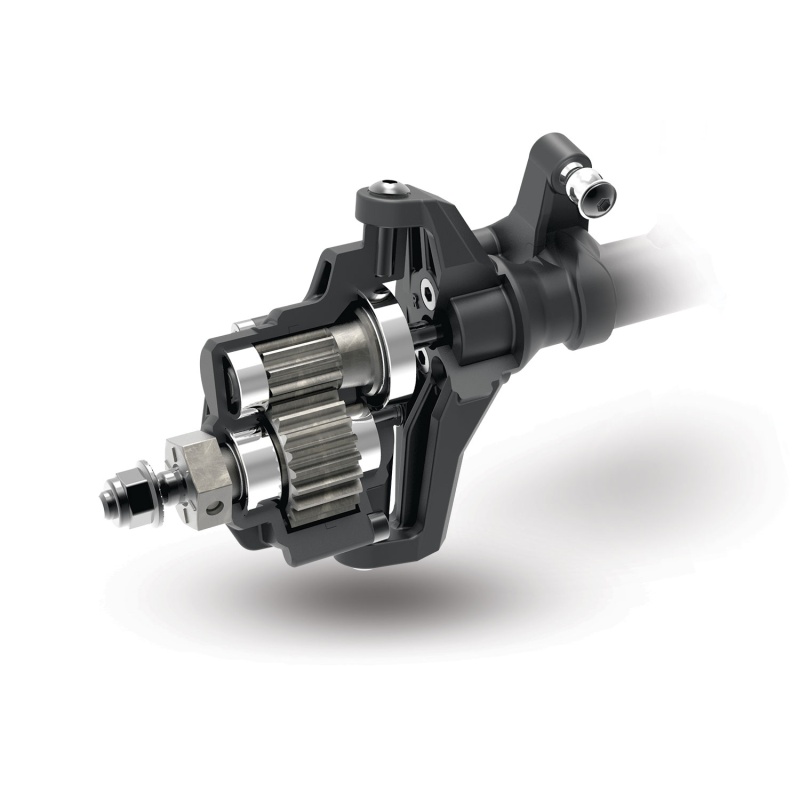

- Portal Axles
  - Increase ground clearance
  - Eliminate torque twist
  - Steel gears
  - Improve axle geometry and reduce strain on driveshafts

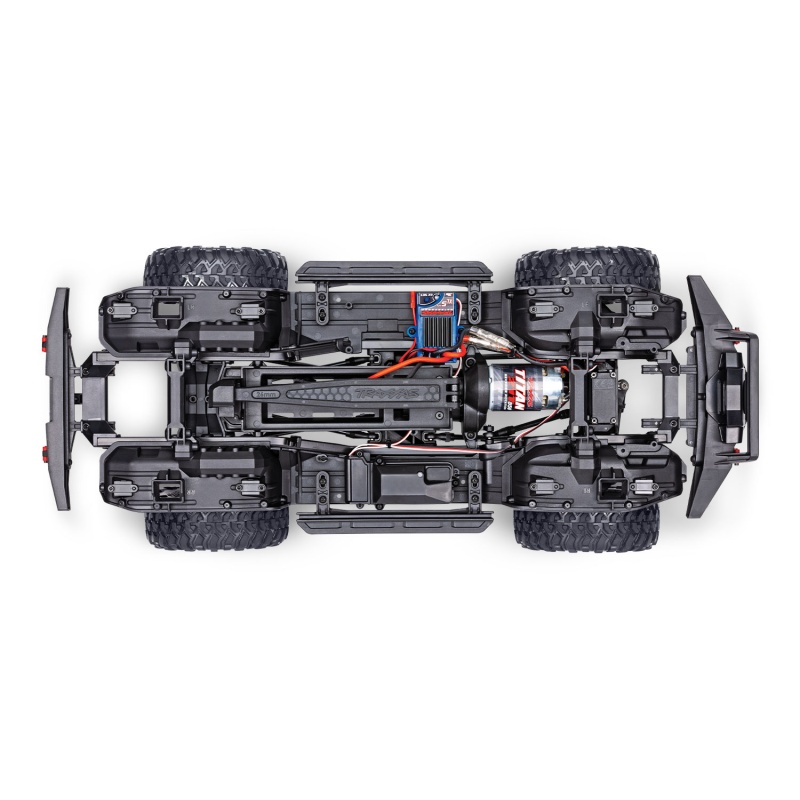

- Rigid Steel Frame
  - 1.5mm thick steel frame rails increase torsional rigidity

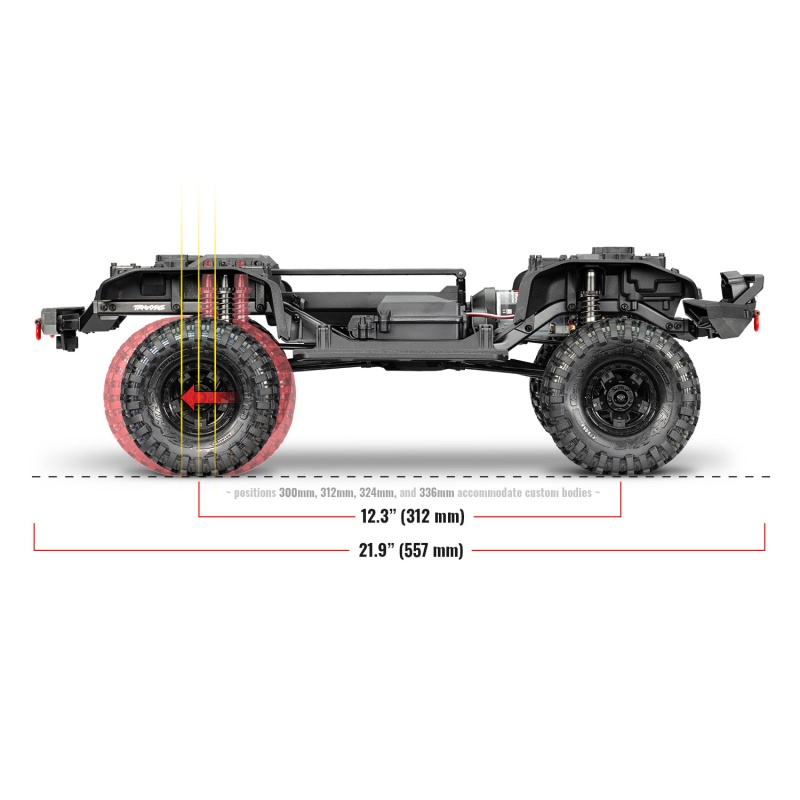

  - Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
  - Adjustable rear shock tower positions for SWB and LWB configurations
  - Bumpers adjust fore and aft
  - Rugged rock rails adjust for width
  - Wire routing clips integrated into frame rails
- Drivetrain
  - Full-time shaft driven 4-wheel drive
  - Tough 6mm stub axles
  - Steel front CV driveshafts
  - Hardened steel rear axle shafts
  - Spool-locked front and rear differentials
  - Steel gear transfer case
- Innovative Battery Compartment
  - Hinged battery strap allows quick and easy battery access
  - No pins to lose
  - Accommodates different height batteries
  - Accepts full-size long battery packs
  - Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

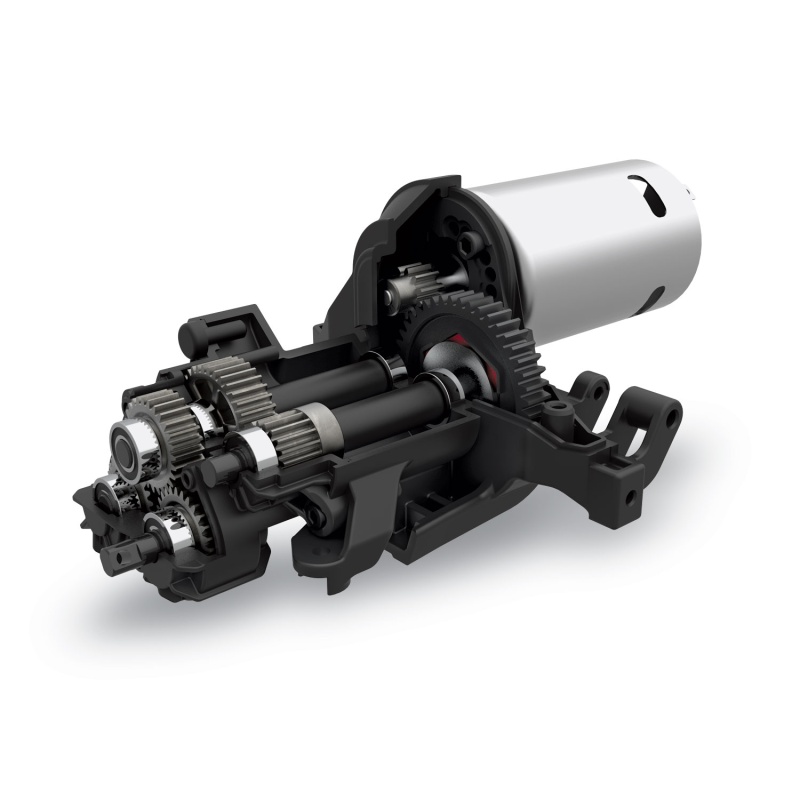

- Transmission
  - Single-speed with steel gears
  - Dual horizontal shafts
  - Twin friction plate slipper clutch
  - Easily removed for servicing
- Steering
  - Chassis mounted 2075X metal gear digital servo
  - Superior 45° steering angle
  - Direct steering (no servo saver)
  - Steering geometry corrected for bump steer
- Suspension
  - Front — 3 link with panhard
  - Rear — triangulated 4 link
  - Heavy-duty rod ends with steel hollow balls
  - 5mm diameter steel link rods with 4mm threaded ends

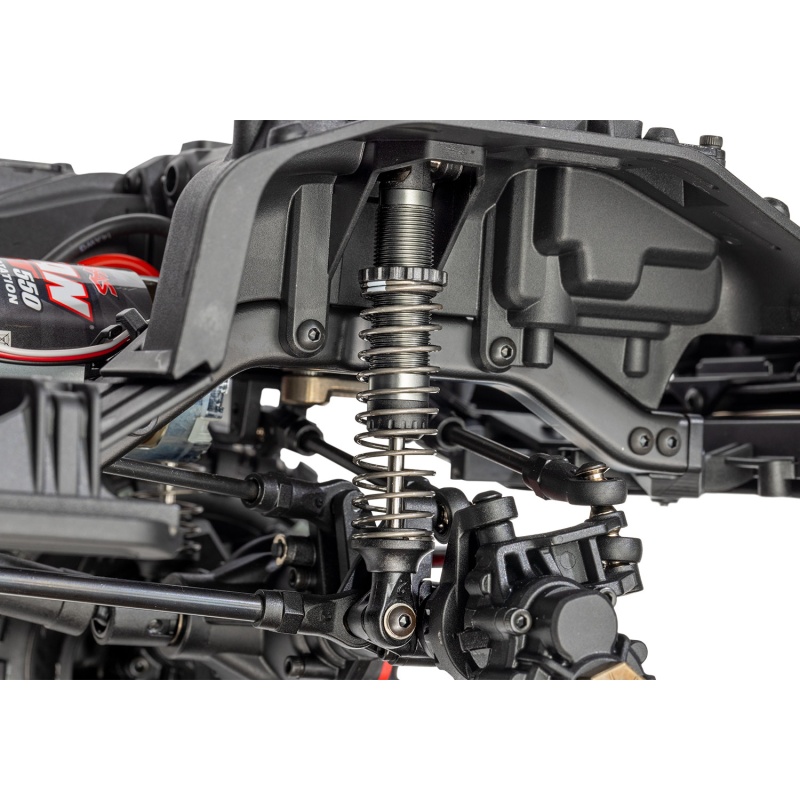

- Aluminum GTS Shocks
  - Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  - Silver-anodized aluminum bodies
  - Threaded bodies with collars easily adjust ride height
  - Silky smooth damping for the toughest trails
  - O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
  - Rugged black 5-spoke wheels
  - Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
  - Trail tuned S1 rubber compound
  - 12mm steel hex
- TQ™ 2.4GHz 2-channel transmitter
- Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
