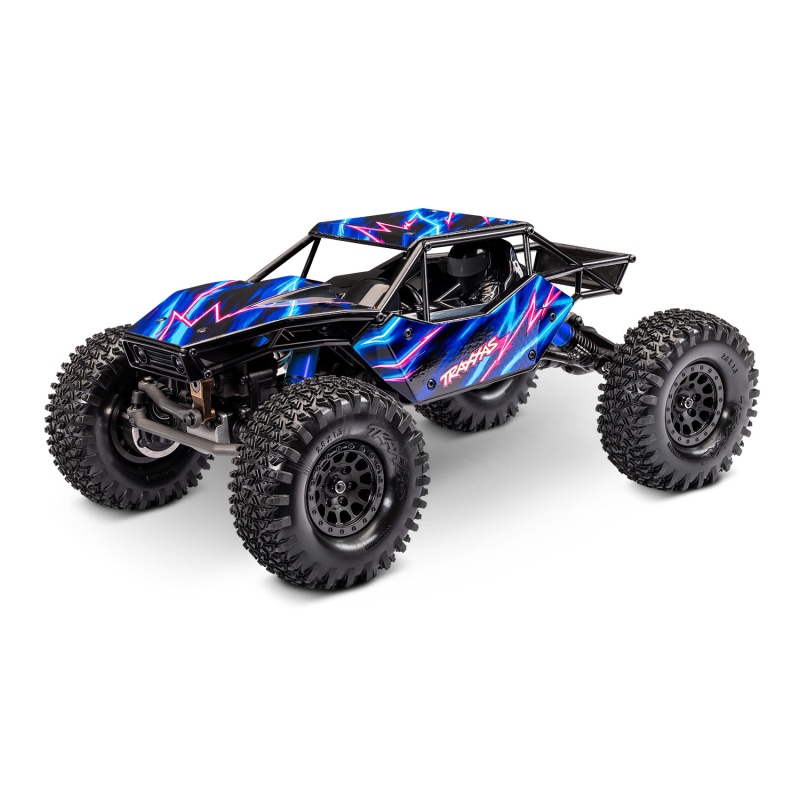

TRAXXAS TXC-4M Extreme Crawler 1/18 RTR Brushless, with 3S battery and charger (colour options)

The Traxxas TXC-4M Extreme Crawler redefines 1/18 scale RC crawling with an all-new, ground-up monocoque chassis. This innovative design allows the electronics and suspension to be positioned for optimal weight distribution (60% front bias) and impressive ground clearance. Equipped with a capable 3S brushless system, portal axles, and premium components, it delivers competition-level performance and extreme driving thrills in a compact package. The model comes fully assembled and Ready-To-Drive® straight from the box.

Powerful 3S Brushless Power

An extreme crawler demands extreme power—the TXC-4M utilizes an 11.1V brushless 3S LiPo system. This enables a high-reduction drivetrain that provides ultra-precise throttle control and massive torque. Crawling speeds can be modulated so low that the rig appears stationary on the rocks, while a high-RPM 3350 Kv brushless outrunner motor delivers surprising top speed out on the trail.

Rigid Monocoque Chassis and Exemplary Weight Distribution

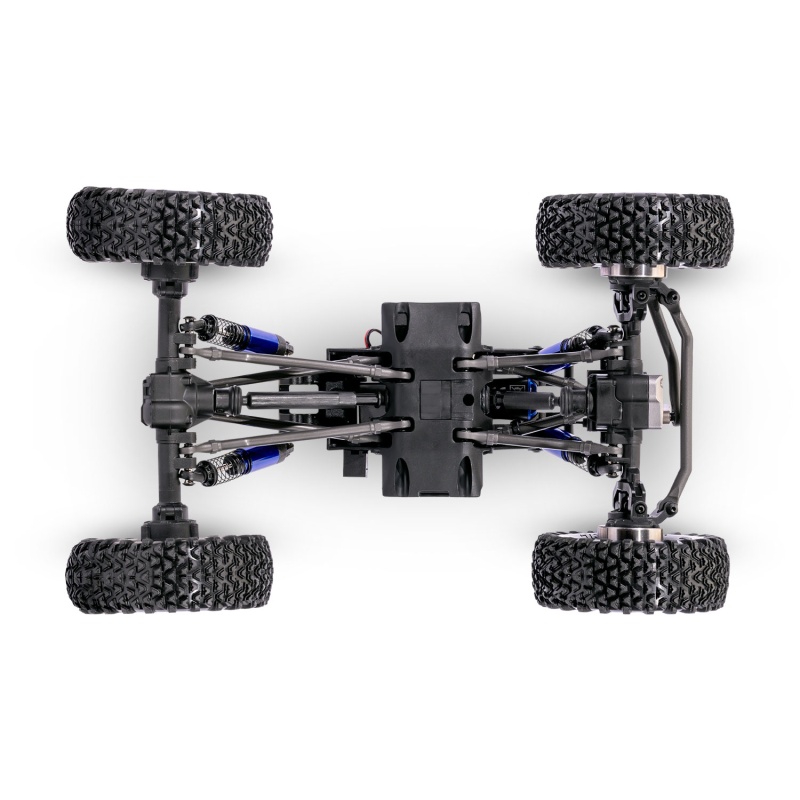

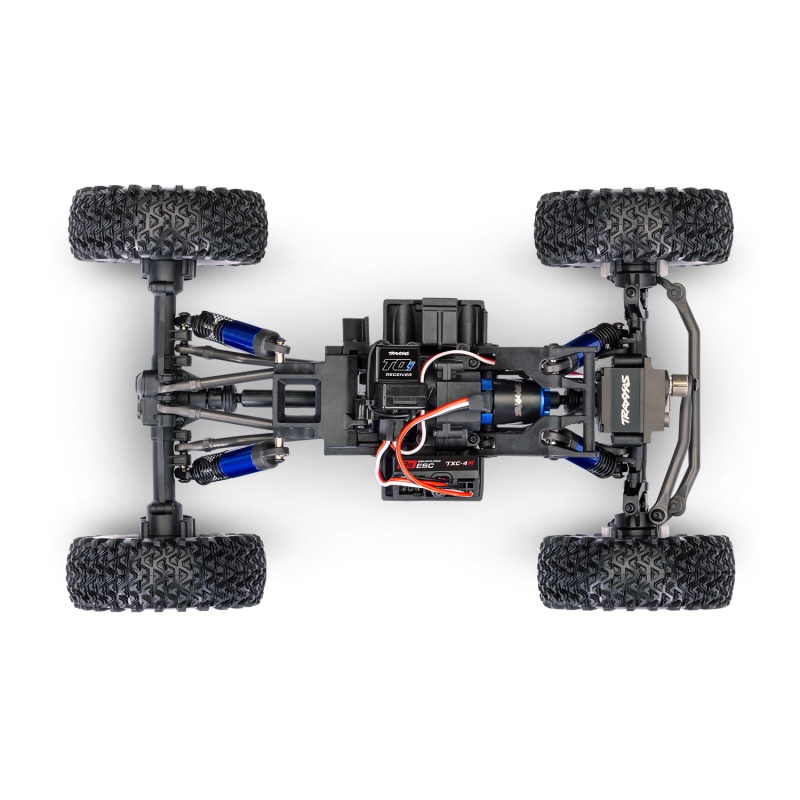

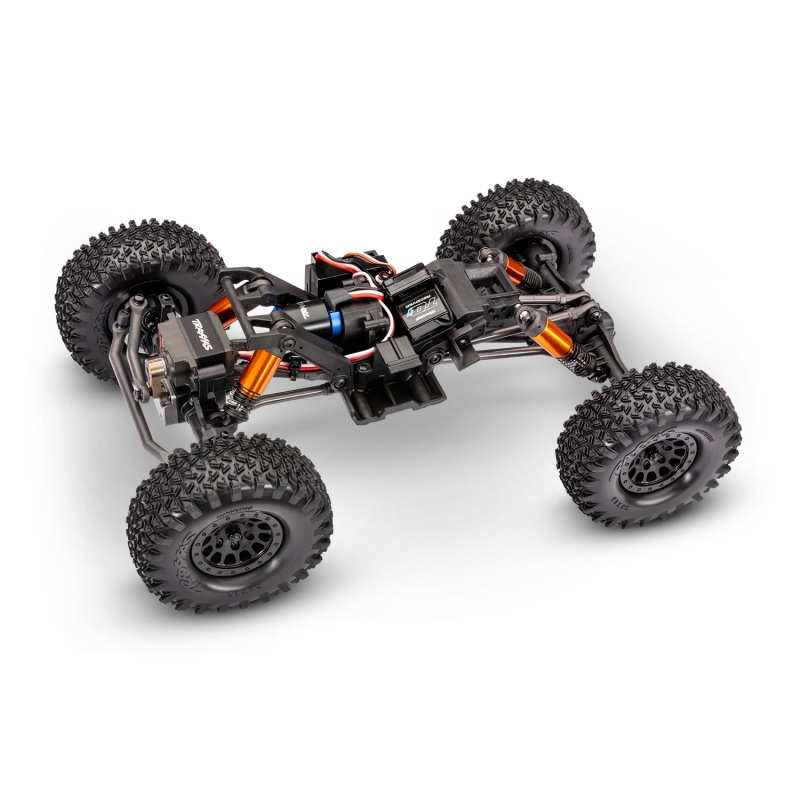

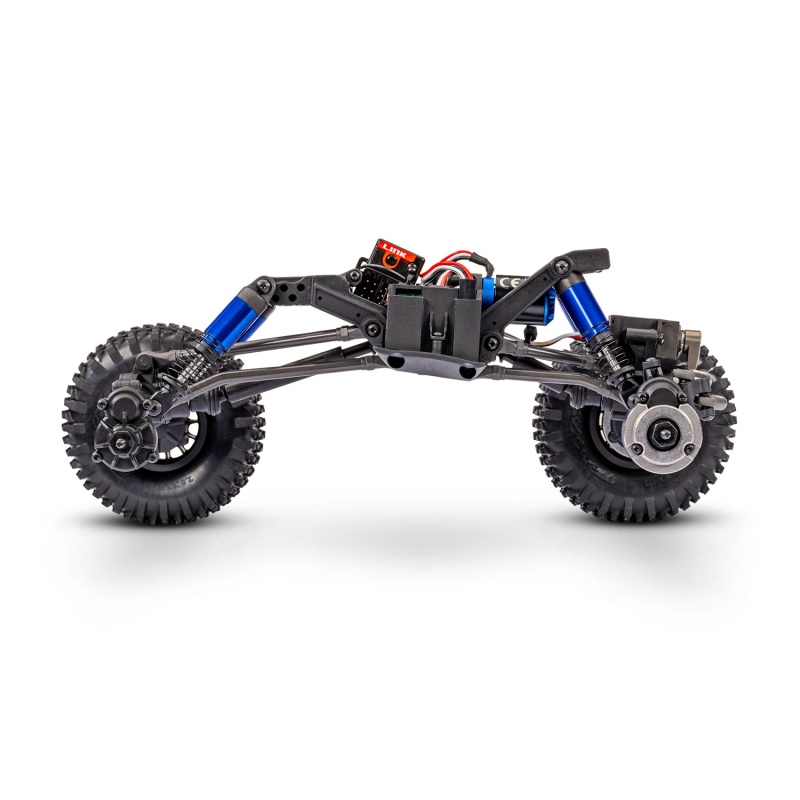

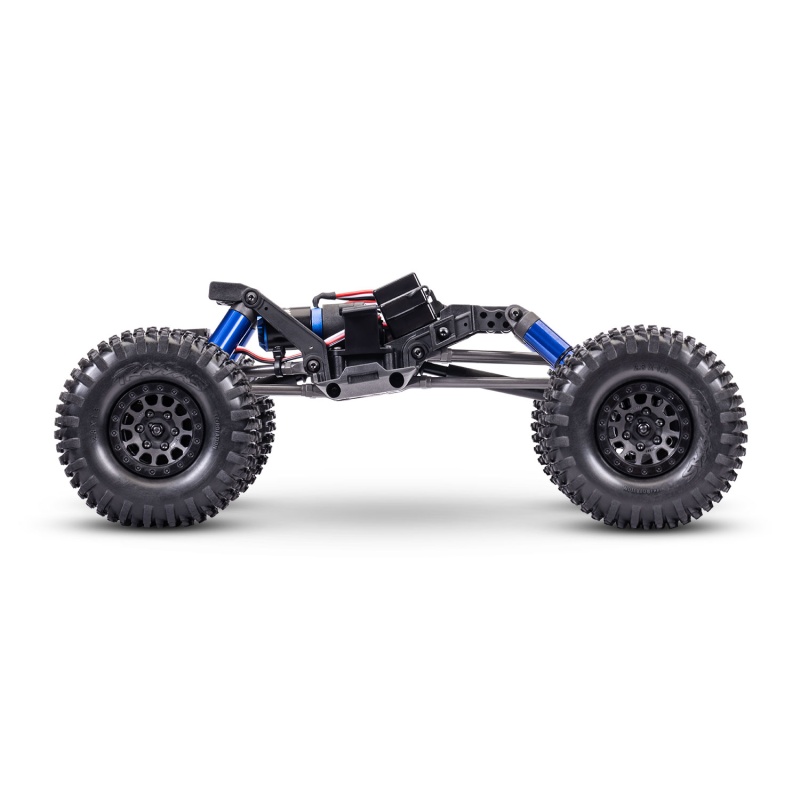

The composite monocoque frame of the TXC-4M is significantly lighter and stiffer than traditional ladder frames. The absence of chassis flex ensures the model maintains its line and precise handling even during the most extreme axle articulation. The battery and Electronic Speed Control (ESC) are mounted low and forward to drop the center of gravity and ensure stability. The weight distribution is optimized to a 60/40 front bias, maximizing front-tire grip on steep inclines and when scaling obstacles.

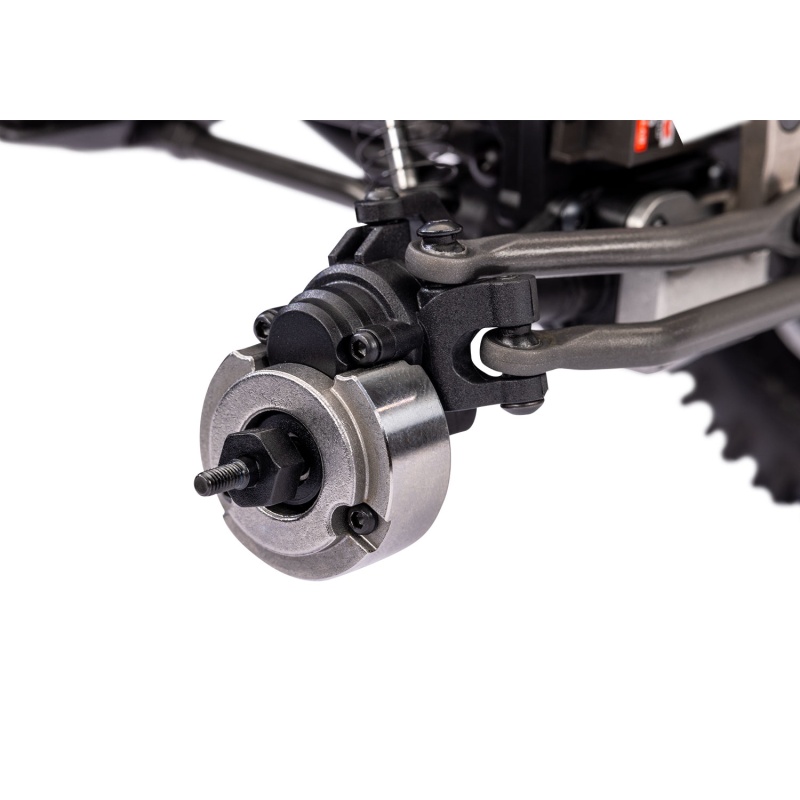

Portal Axles and Competition-Grade Steering

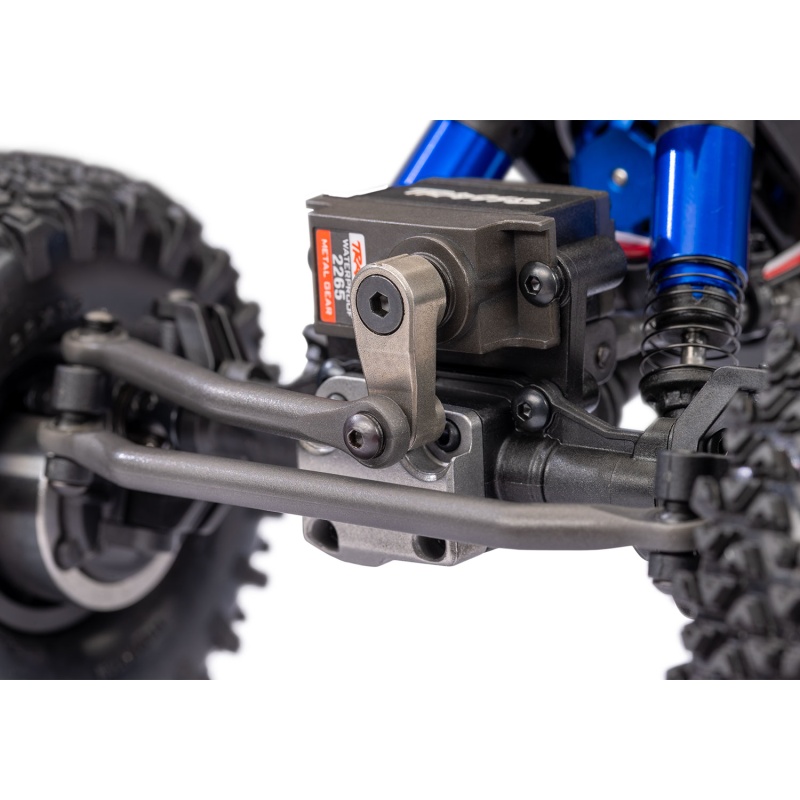

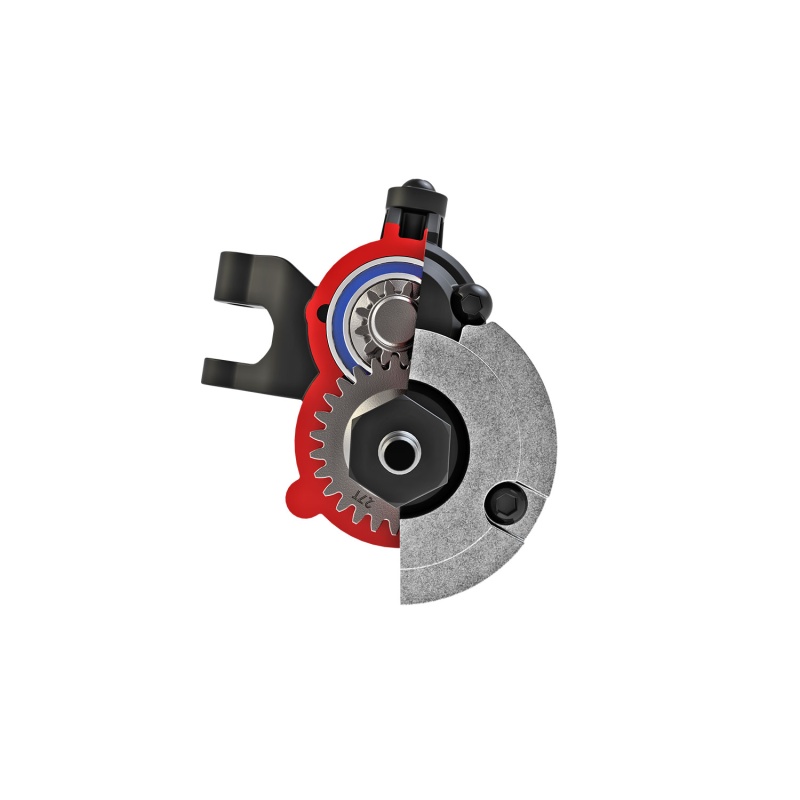

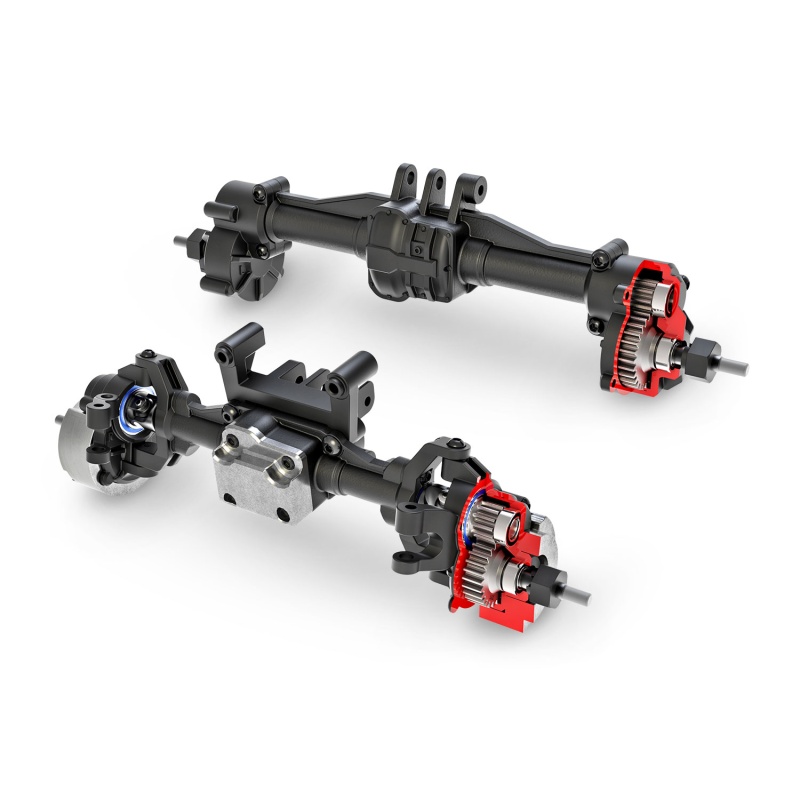

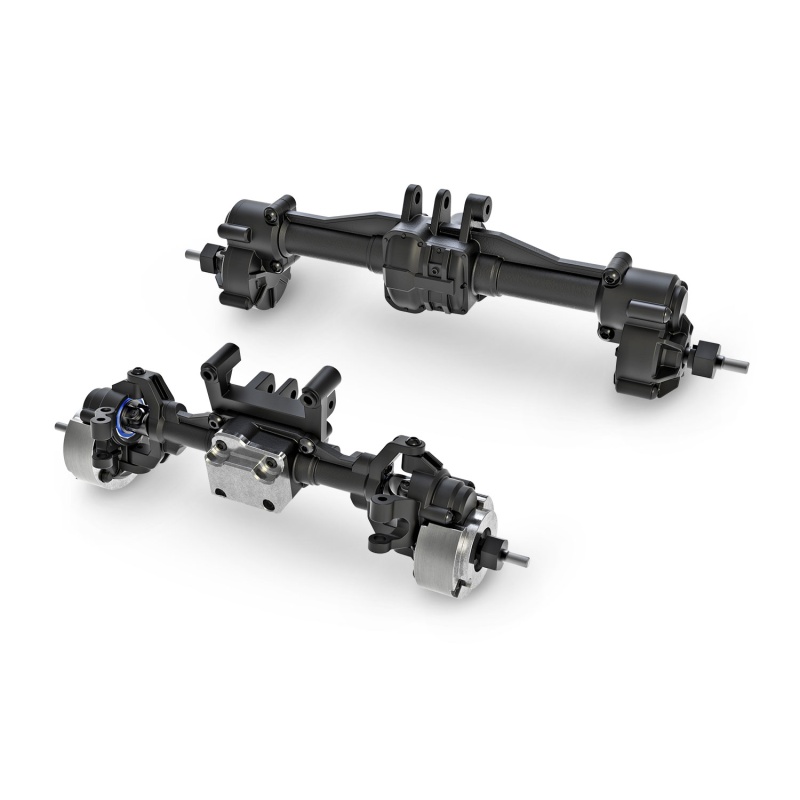

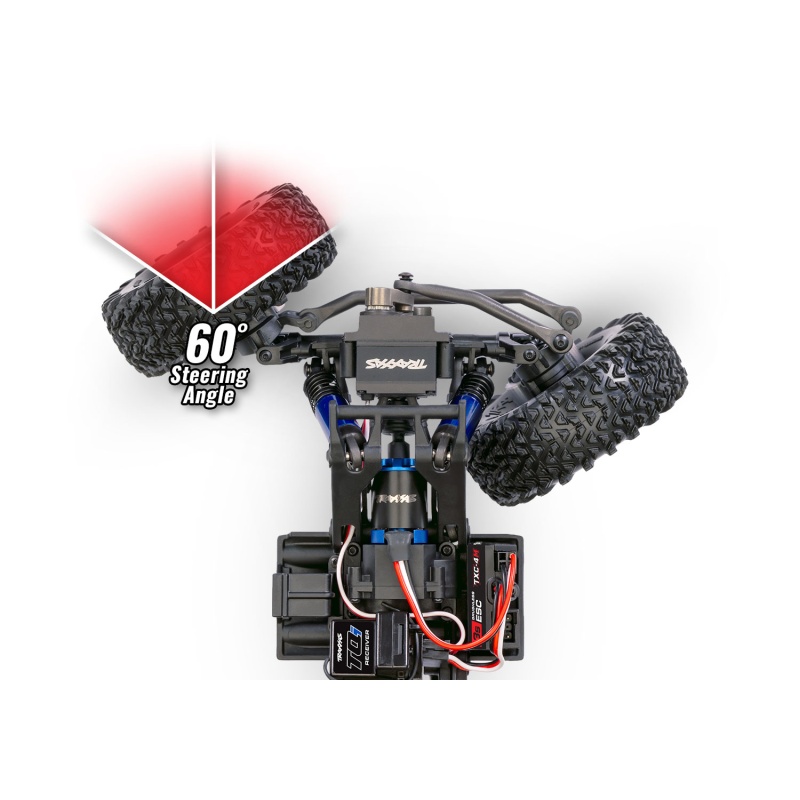

Portal axles lift the model's ground clearance directly at the wheels, leaving significantly more room under the differential housings. Additionally, portals reduce torque twist by shifting the gear reduction into the hubs and away from the differentials. The model delivers a class-leading steering angle of up to 60°, allowing for incredibly sharp turns on technical courses. Steering is handled by the Traxxas 2265R waterproof, full-metal-gear high-torque servo, pushing out 75 oz-in of torque (more than double the power of standard micro servos).

Advanced Suspension, Scale Details, and 3 Drive Modes

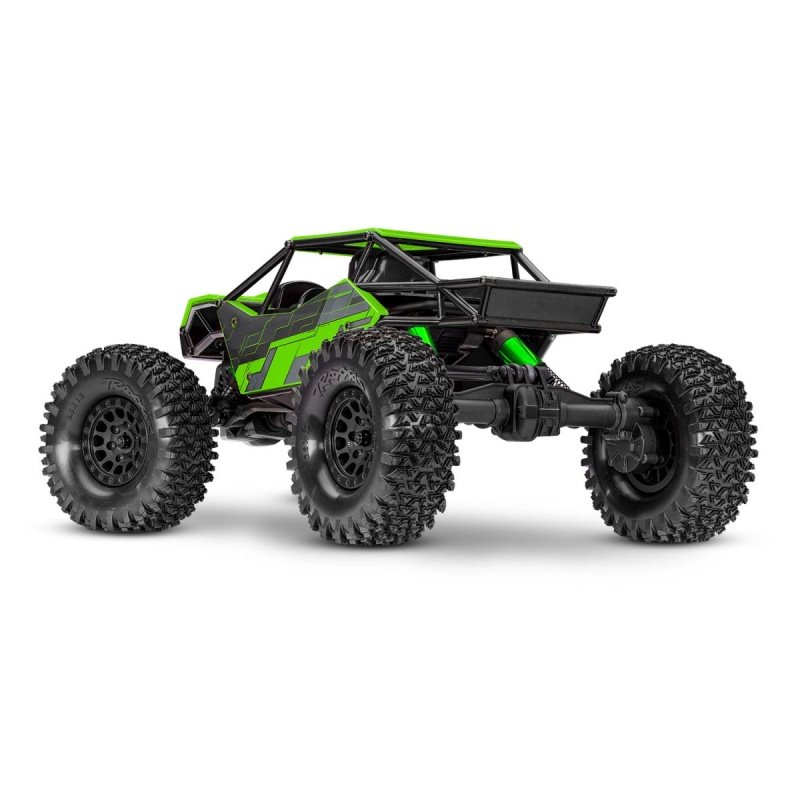

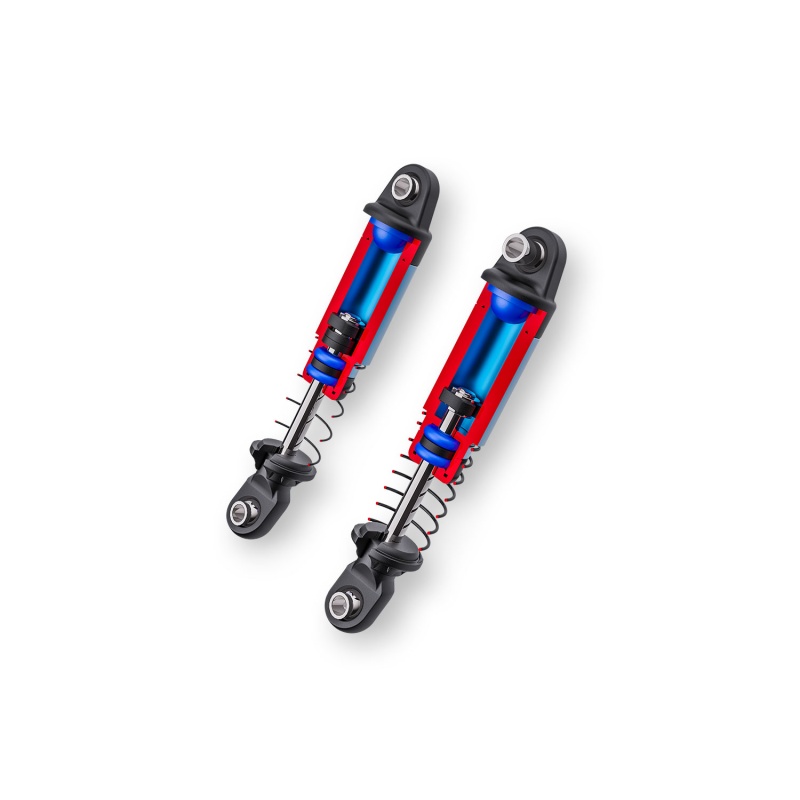

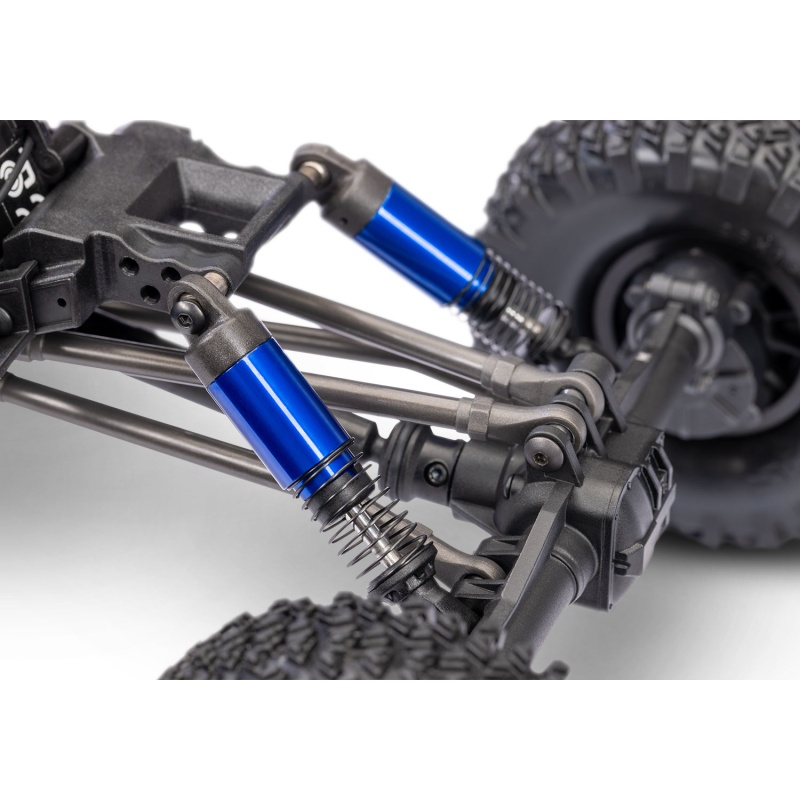

The model’s lightweight tube-frame body keeps the center of gravity low and provides maximum wheel clearance. The body panels are removable, and the rig features a full detailed interior with a driver figure. The suspension utilizes horizontally mounted, oil-filled aluminum GTM Pro shocks that offer superb articulation.

The standalone 3S Electronic Speed Control (ESC) features 3 customizable driving profiles:

• Sport Mode (Forward / Brake / Reverse)
• Trail Mode (Forward / Brake / Reverse / Electronic drag brake in neutral)
• Crawl Mode (Forward / Immediate Reverse and 100% hill-hold brake for maximum grip on rocks)

The model comes equipped with functional 1.3-inch Method Race Wheels® 105 beadlock wheels (7 mm hex) and specialized Stone Claw™ tires, featuring a soft compound and stepped tread pattern that bite into rocks with unprecedented traction.

Key Features

• Fully assembled and Ready-To-Drive® straight from the box
• 3S Brushless system (11.1V 3350 Kv outrunner motor and standalone ESC)
• Lightweight and ultra-rigid monocoque chassis with optimal 60/40 front weight bias
• Portal axles for increased ground clearance and reduced torque twist
• Exceptional 60-degree steering angle and strong metal-gear 2265R servo (75 oz-in)
• Aluminum, oil-filled GTM Pro Shocks in a horizontal configuration
• Full-metal transmission gears, steel axle shafts, U-joints, and locked spools
• 3-piece Method Race Wheels® 105 beadlock wheels and soft-compound Stone Claw™ tires
• Fast and convenient clipless body mounting system

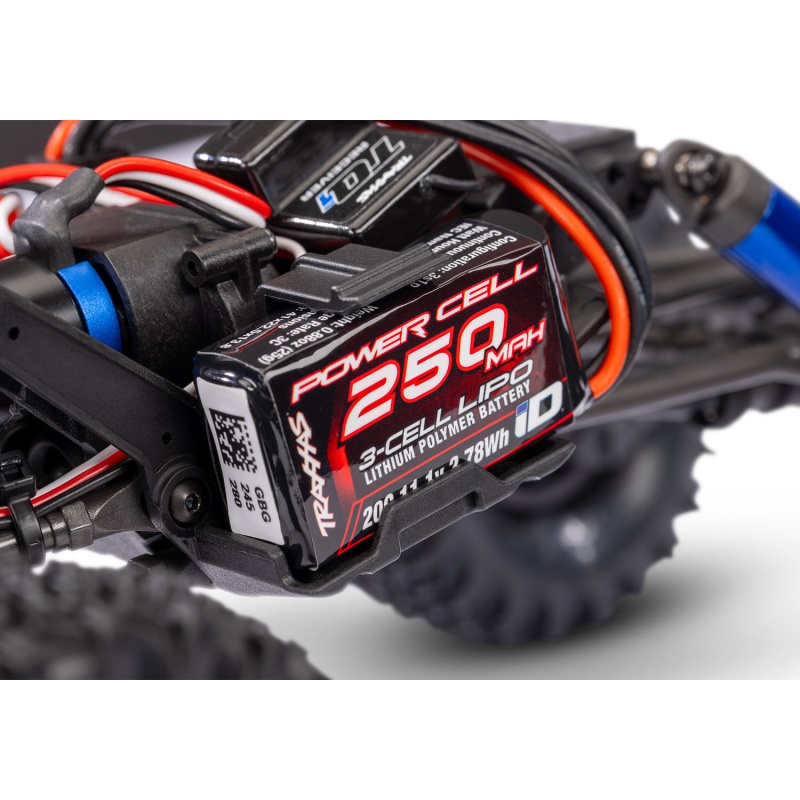

• Included 3S LiPo battery (250 mAh) and USB fast charger featuring Traxxas iD® safety technology
• High-quality hex hardware and sealed ball bearings throughout the drivetrain

Technical Specifications

• Scale 1/18
• Type Trail / Rock Crawler

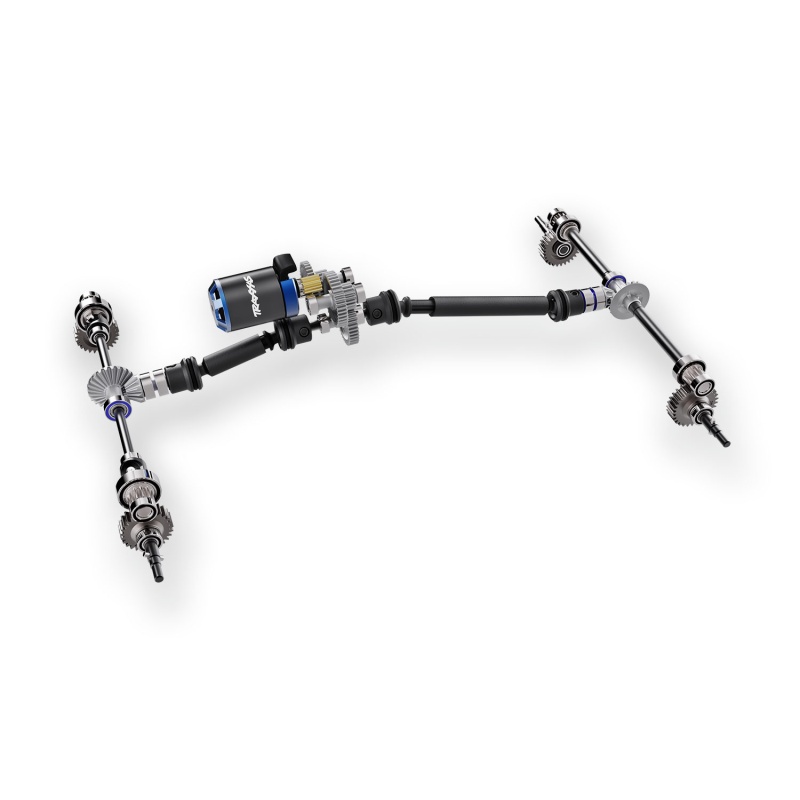

• Drivetrain Continuous shaft-driven 4WD
• Motor 3S sensorless brushless outrunner (3350 Kv, weight 18 g)
• Speed Control (ESC) 3S Brushless, 6V BEC, 3 driving profiles
• Differentials Locked (Steel spool gears), 25% front axle overdrive

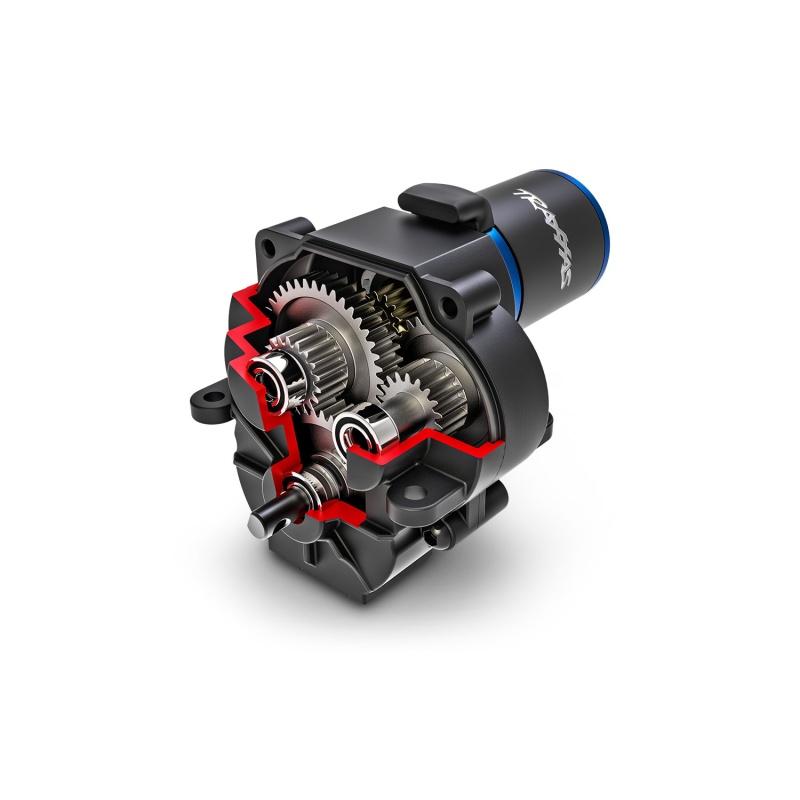

• Transmission Single-speed, full-metal gears, fully ball-bearing supported
• Internal Gear Ratio 74.1:1
• Steering System 60° steering angle, direct-drive (no servo saver), horizontal servo layout
• Steering Servo Traxxas 2265R (Waterproof, metal gears, aluminum center case, 75 oz-in)

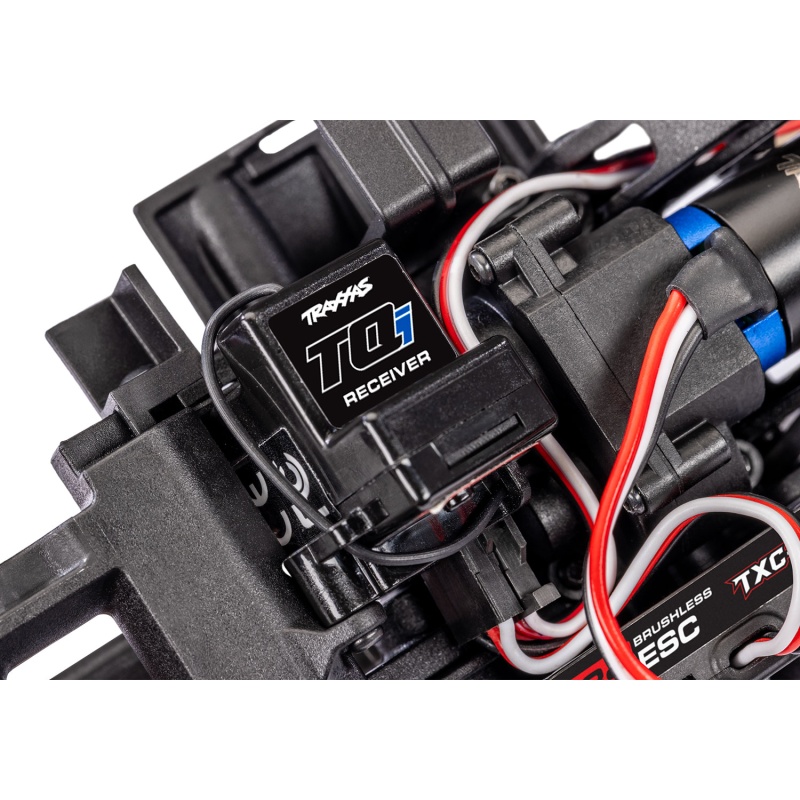

• Radio System TQ Compact 2-channel 2.4 GHz transmitter + TQi receiver
• Battery Compartment Dimensions Length 41 mm, width 22 mm, height 14 mm
• Model Length 234 mm (9.22 inches)
• Model Width / Track 149 mm (5.86 inches)
• Model Height 107 mm (4.2 inches)
• Wheelbase 168 mm (6.6 inches)
• Ground Clearance (Center) 43 mm (1.7 inches)
• Weight 467 g (1.03 lbs)

What's in the Box

1x Traxxas TXC-4M Extreme Crawler (fully assembled model)
1x Clipless tube-frame body with removable panels and detailed interior
1x TQ Compact 2.4 GHz radio transmitter
1x Traxxas 11.1V 250 mAh 3S LiPo battery with iD® connector
1x USB-A fast charger featuring iD® technology
1x Set of high-quality maintenance tools

What You'll Need (Required for Operation)

For the transmitter: 4x AA alkaline batteries
For the charger: A USB-A power source (minimum 5V / 2A recommended)
