AGF-RC B44DLM V2 LP Servo 0,18sek/14kg@7,4V

AGFRC new product B44DLM V2 15.0KG torque affordable low-profile programmable DC servo are designed with plastic and CNC case, and their good airtightness can prevent dust and splashes. The high-precision titanium gears and smooth dual ball bearings keeps the servo stable and smooth during operation. 8.4V high voltage and 0.17Sec speed are very suitable for 1/10 1/12 drift car competition, Touring car, On Road, Pan car, etc. If you need parameter programming, you can use it with the AGF-SPV2 or AGF-SPV3 programming card.

Feature

High Performance Low Profile Digital Servo
High Precision Titanium Gear
High Quality DC motor

Dust And Splash Proof

Smooth Dual Ball Bearing
Aluminium Middle Case Design

Ideal For 1/10, 1/12 Touring, Drift Car, Boat, Aircraft, Robot.

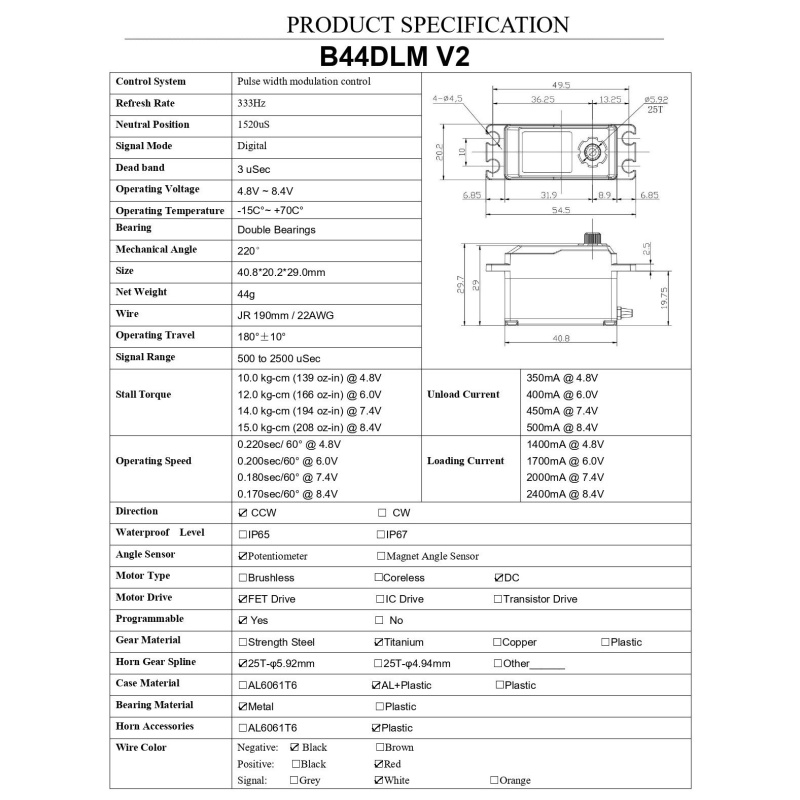

Specification

Item name: B44DLM V2

Operating Voltage: 4.8-8.4 V

Operating speed: 0.220sec/60° @ 4.8V

Operating speed: 0.200sec/60° @ 6.0V

Operating speed: 0.180sec/60° @ 7.4V

Operating speed: 0.170sec/60° @ 8.4V

Stall Torque: 10.0 kg-cm (139 oz-in) @ 4.8V

Stall Torque: 12.0 kg-cm (166 oz-in) @ 6.0V

Stall Torque: 14.0 kg-cm (194 oz-in) @ 7.4V

Stall Torque: 15.0 kg-cm (208 oz-in) @ 8.4V

Gear: Titanium

Motor: DC

Size: 40.8*20.2*29mm (1.60 x 0.79 x 1.14 in)

Weight: 44g

Connector Wire: JR 190mm /22AWG
