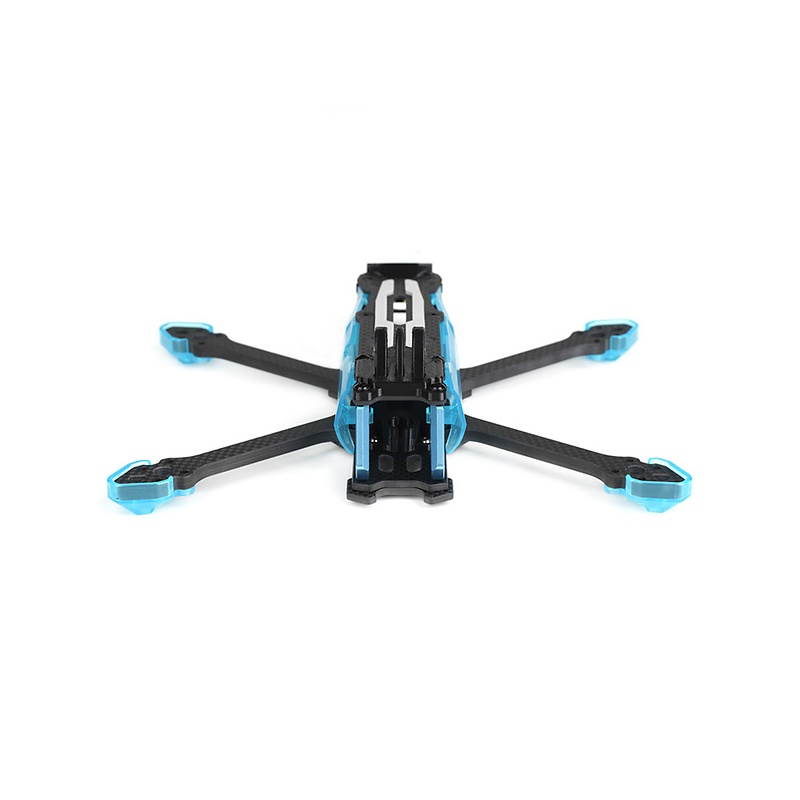

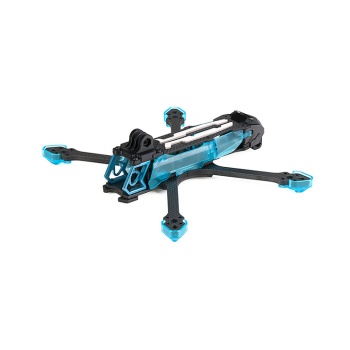

Axisflying Manta 5 SE V2 X 5 Inch FPV Frame Kit

Product description

The Axisflying Manta 5 SE V2 Frame Kit is the perfect foundation for high-performance 5-inch FPV drones and is aimed at pilots seeking maximum stability and flexibility in their builds. With a choice of Squashed-X or Deadcat design, the frame offers precise handling and an unobstructed camera view with no props in the field of view.

Made from high-quality T700 carbon in combination with CNC-machined aluminum parts, the frame kit impresses with high stiffness, durability and crash resistance – ideal for freestyle, bando and demanding applications.

Thanks to its well-designed layout and versatile compatibility (e.g., for DJI O3/O4 or analog systems), the Manta 5 SE V2 is perfect for individual DIY setups. The combination of performance, easy assembly, and excellent value makes it a top choice in the 5-inch segment.

Specifications

• Product Name: MANTA 5 SE V2 Squashed X Frame
• Wheelbase: 223 mm
• Supported propeller size: max. 5.1 inches
• Mounting spacers: 20 mm (M3) & 30.5 mm (M3)
• Motor mount: 16 mm × 16 mm / M3
• Camera mount: 14–20 mm
• Height of the electronics deck: 20 mm
• Carbon fiber plate: T700
• Thickness of the top plate: 2 mm
• Thickness of the middle plate: 3 mm
• Thickness of the bottom plate: 3 mm
• Arm thickness: 5.5 mm
• VTX mount: 20mm & 25.5mm (M2)
• Frame weight: 155 ± 5 g (including printed parts)
