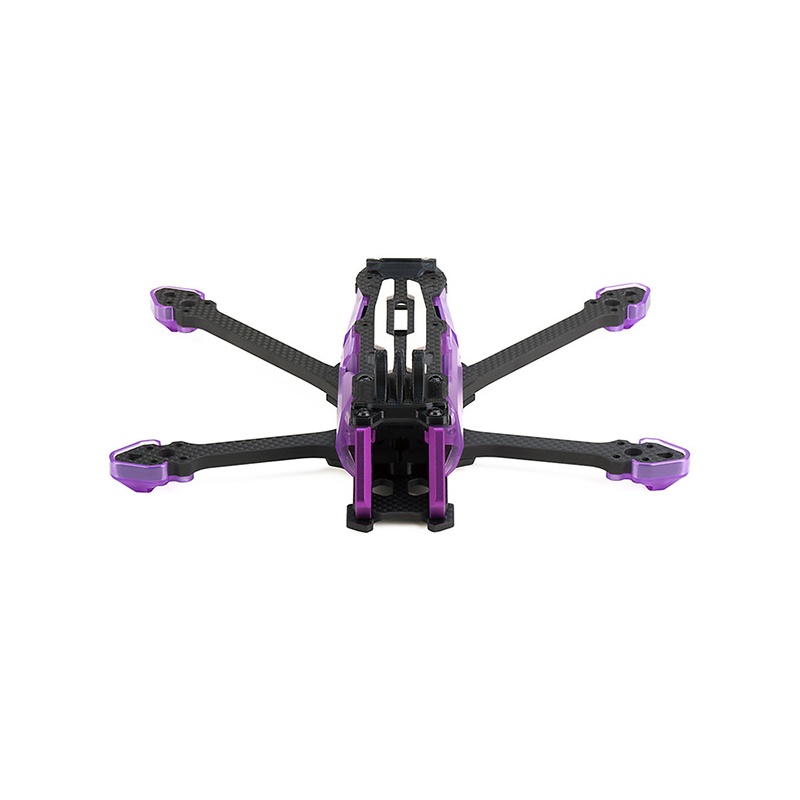

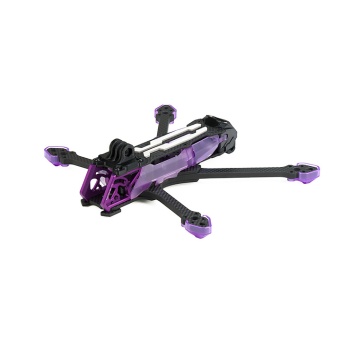

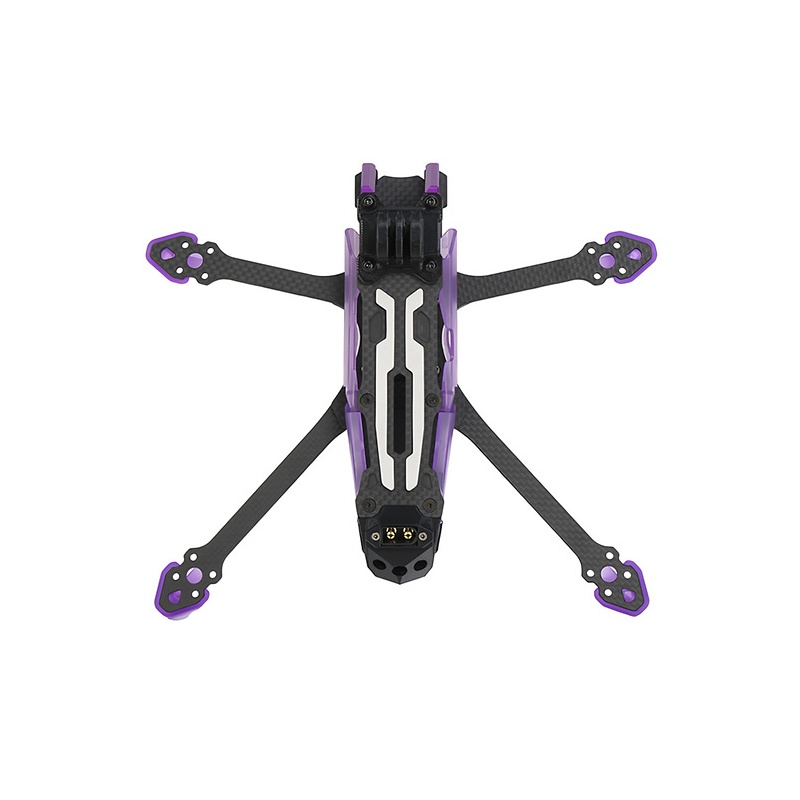

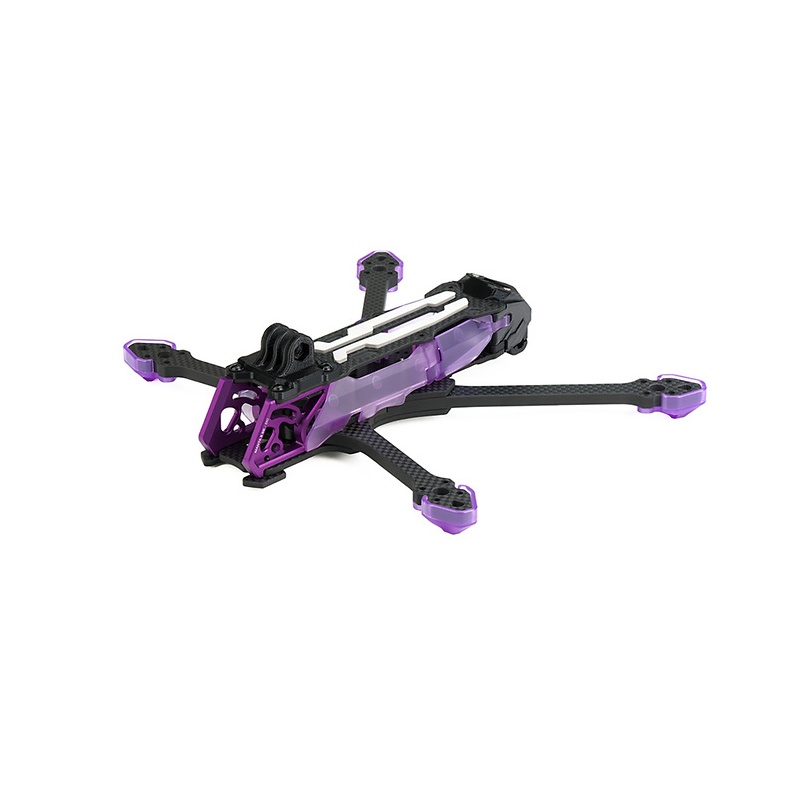

Axisflying Manta 5 SE V2 Deadcat 5 Inch FPV Frame Kit

SKU: AXI-A01020008
EAN: 4262556461728
Brand:

Unit: pc
In stock: 1

kuumaks al. 5,02 €

Price:

59,00 €

Description

Product description

The Axisflying Manta 5 SE V2 Deadcat is a premium 5-inch FPV frame kit engineered specifically for high-quality cinematic capturing and extreme freestyle missions. Its Deadcat geometry offsets the front arms further to the sides, ensuring a completely prop-free view in your FPV feed. This makes it the ideal companion for high-definition digital video transmitters like the DJI O4 Pro or Walksnail, where pristine, uncompromised onboard HD recording is crucial.

Built from high-grade T700 carbon fiber, the frame features ultra-rigid 6mm thick arms to minimize resonance and survive heavy crashes in harsh environments like bandos. The camera is securely enclosed within CNC-machined aluminum side plates and integrated rubber dampening pads, isolating the sensor from high-frequency motor vibrations to eliminate jello. A thoughtful split-deck layout provides generous room for your internal electronics while routing the XT60 power cable cleanly out the rear to stay safe from spinning props.

Highlights:

Deadcat (DC) Geometry: Guarantees a fully unobstructed camera view with absolutely no propellers in sight.
Premium T700 Carbon Fiber: Robust 6mm thick arms deliver peak structural rigidity and long-lasting durability.
CNC Aluminum Camera Cage: Anodized metal brackets paired with rubber isolation pads for elite impact and vibration protection.
Universal Component Mounting: Multi-hole placement supports 20×20mm and 30.5×30.5mm stacks, alongside standard analog and HD digital VTX layouts.
Integrated Protections: Equipped with high-quality injection-molded side shield panels, landing skids, and a pre-molded GPS pocket.

Technical specifications

Manufacturer: Axisflying
Product Name: Manta 5" SE V2 Frame Kit - Deadcat (SKU: A01020008 / A01010076)
Wheelbase: 226 mm
Arm Thickness: 6 mm
Bottom Plate Thickness: 3 mm
Top & Center Plate Thickness: 2 mm
Material: T700 Carbon Fiber & Precision CNC Aluminum
Weight: approx. 172 g (including printed/molded parts)
FC Stack Mounting: 20×20 mm / 30.5×30.5 mm (M3)
VTX Mounting: 20×20 mm / 25.5×25.5 mm (M2)
Camera Compatibility: 14 mm to 20 mm width variants
Motor Mounting Pattern: 16×16 mm (M3)

In the box

1 × Axisflying Manta 5 SE V2 Deadcat Frame Kit
1 × CNC Aluminum Camera Cage with isolation grommets
1 × Complete Injection-Molded & TPU Parts Set (arm guards, landing skids, antenna mounts, GPS mount)
1 × Anti-slip Battery Pad & Durable Battery Straps
1 × Full Screws and Mounting Hardware Package

Build Ideas and Recommendations (English)

Video System (HD): DJI O4 Air Unit Pro Digital FPV System – Provides crystal-clear 1080p live feeds and stabilized 4K/120fps onboard recording without needing an external camera. The frame's aluminum side plates isolate the camera module from high-frequency mechanical noise.
Motors (6S): 2207 or 2207.5 size brushless motors ranging between 1750KV and 1960KV (such as the GEPRC SPEEDX2 2207 or iFlight XING2 series).
Electronics Setup (Stack): An F7 Flight Controller (FC) paired with a minimum 50A–60A ESC optimized for 5-inch 6S platforms using a standard 30.5×30.5 mm mounting pattern. Note: The T-Motor Velox F7 + V70A 8S stack in our stock is primarily optimized for larger 7–10" long-range rigs, but can be safely used on these 5" frames if you desire an extreme power overhead.
Propellers: 5-inch 3-blade props (such as the Gemfan Hurricane 51433, HQProp Freestyle 5X4.3X3V2S, or Gemfan Hurricane MCK 51466).
Radio Link: RadioMaster ExpressLRS (2.4GHz) transmitter and receiver setup.
Batteries: 6S LiPo packs with a capacity ranging from 1000mAh to 1700mAh (such as the Tattu R-Line 6.0 series) equipped with an XT60 connector.
