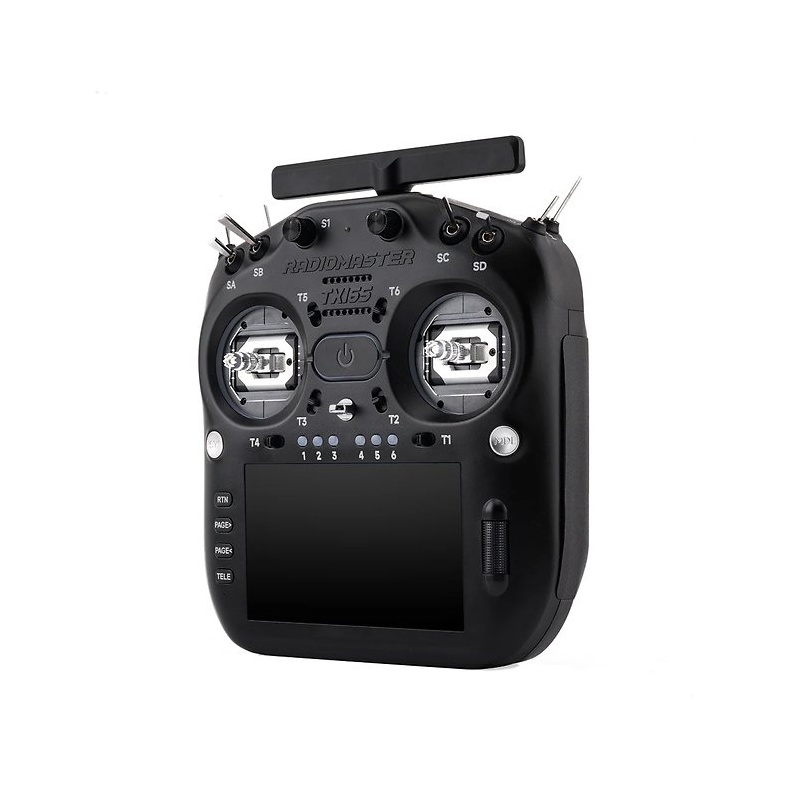

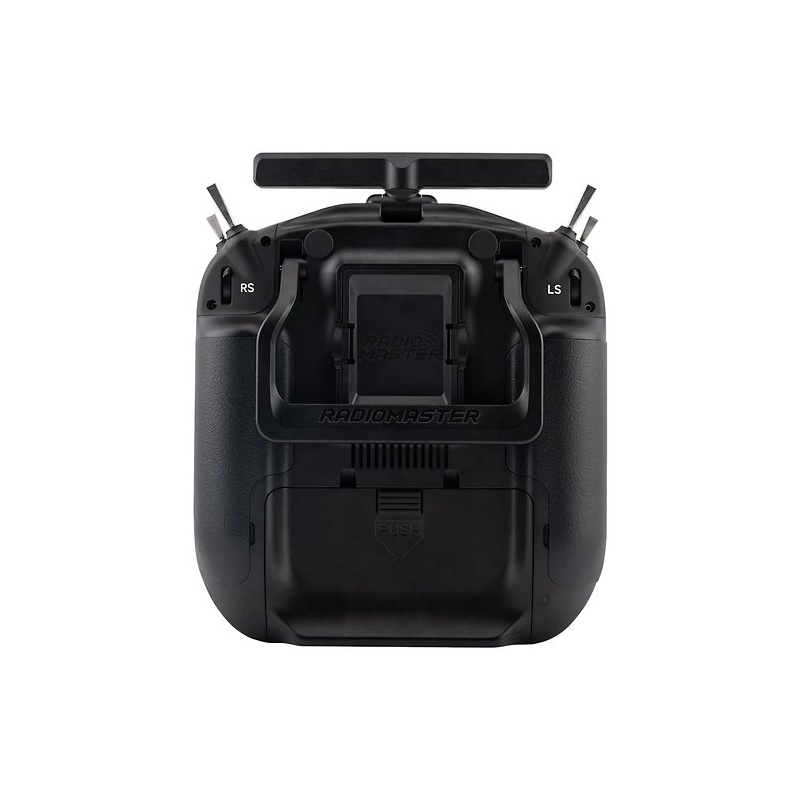

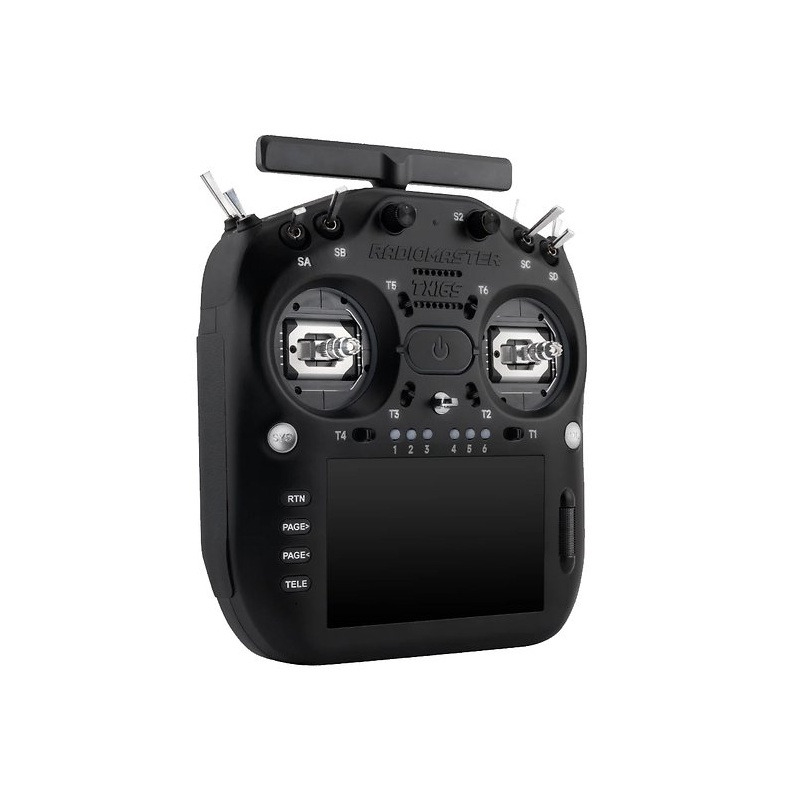

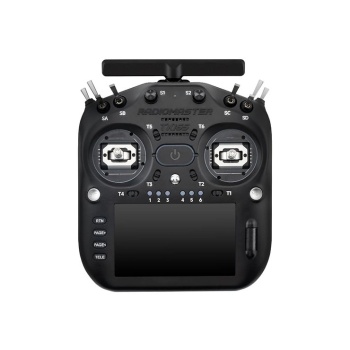

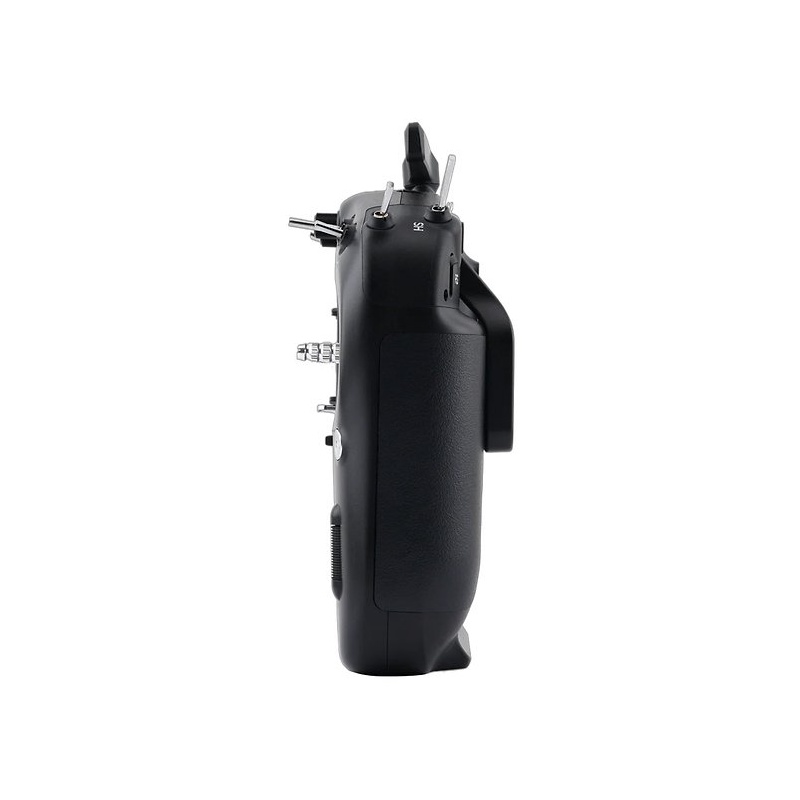

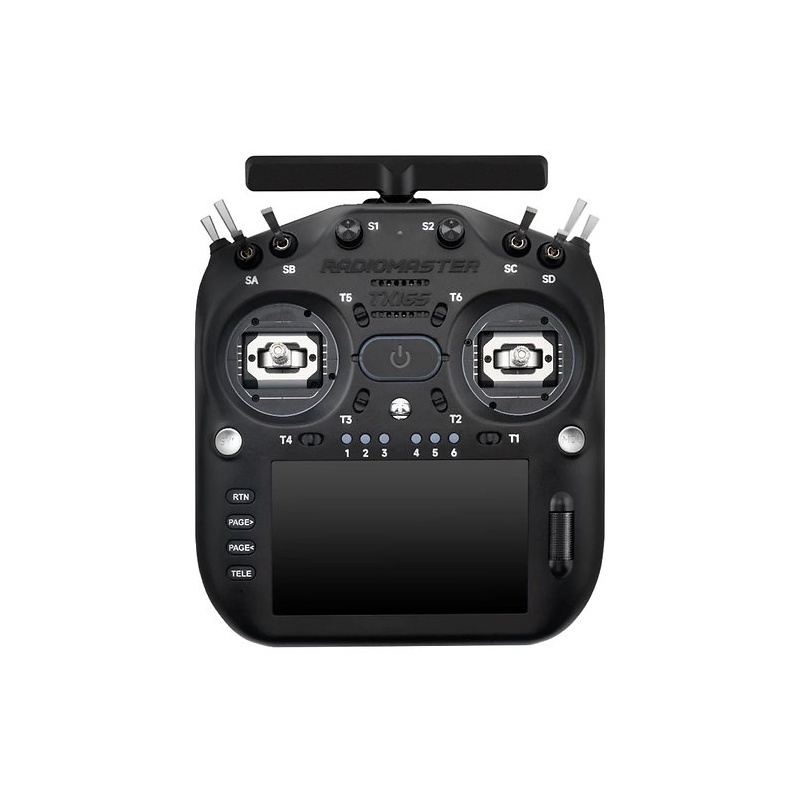

RadioMaster TX16S MK3 V6 Hall Gimbals 2.4 GHz ELRS FPV remote control

The RadioMaster TX16S MK3 is the latest evolution of one of the world's most popular FPV remote controls. Equipped with a powerful STM32H7 processor, state-of-the-art ExpressLRS dual-band technology (2.4GHz + 900MHz) and high-precision V6 Hall gimbals, it delivers maximum performance, extremely low latency and maximum reliability.

The brilliant 5-inch IPS touch display ensures a perfect overview in any lighting situation. Thanks to the EdgeTX operating system, models, telemetry, switches and logics can be configured extremely flexibly. The integrated RGB gimbal light rings are freely programmable and can be used as visual status indicators - practical and stylish at the same time.

With an active cooling system, smart battery management, foldable antennas and modular switch design, the TX16S MK3 is an uncompromising professional remote control for FPV, fixed-wing models, helis and simulators.

Product highlights

• Powerful STM32H7 high-performance MCU
• Dual-band ExpressLRS: 2.4GHz & 900MHz (Gemini system)

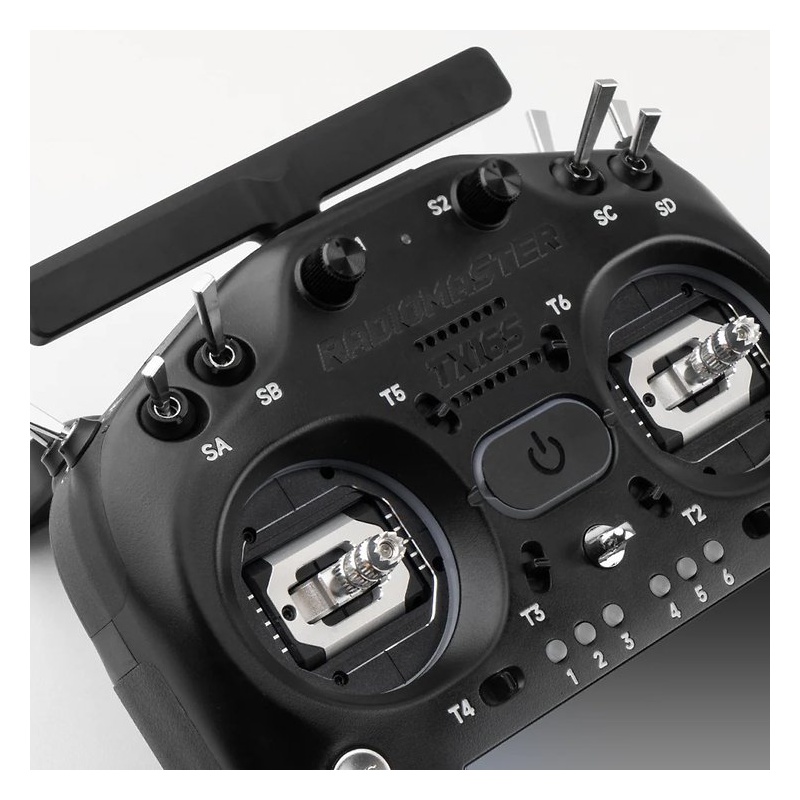

• V6 Hall gimbals with quad ball bearings
• Freely programmable RGB gimbal light rings
• Large 5" IPS touch display (800×480)
• EdgeTX operating system
• Active cooling system with aluminum heat sink
• Foldable dual antennas for optimum reception
• Motion sensor for control functions
• Modular switch panels
• Internal memory + MicroSD support
• Simulator-capable via USB & Bluetooth
• JR module slot for external modules

Technical Specifications

• Model: RadioMaster TX16S MK3
• Colors: Black
• Operating voltage: 6.6 - 8.4V DC
• Current consumption: approx. 1.10A at maximum transmission power
• Firmware: EdgeTX (from version 3.0.0)
• RF module: ExpressLRS dual band (2× LR1121)
• Frequency ranges: 2.4GHz & Sub-G 900MHz
• Channels: up to 16
• Gimbals: V6 Hall sensor, quad-mounted
• Display: 5" IPS touchscreen, 800×480 pixels
• Internal memory: 4GB Flash
• MicroSD slot: available (card not included)

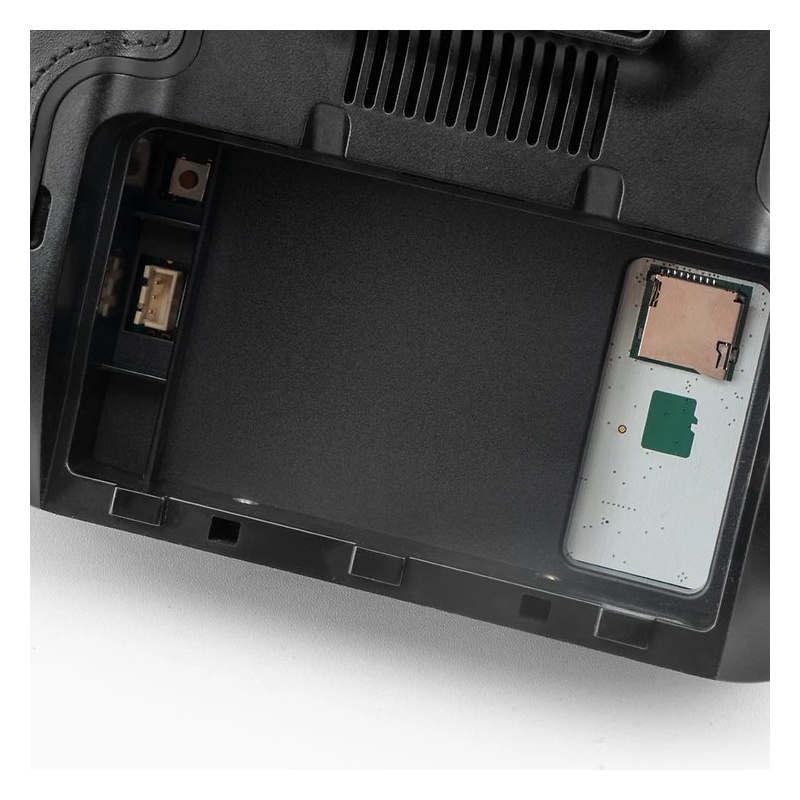

• Battery options
  • 2× 18650 Li-Ion
  • 21700 Li-Ion 5000mAh
  • 2S 7.4V 6200mAh LiPo
    (batteries not included)
• Update: USB & EdgeTX Companion
• Module slot: JR compatible
• Dimensions: 200 × 178 × 88 mm
• Weight: approx. 813 g (without battery)

• 1× RadioMaster TX16S MK3 radio controller (or transmitter)

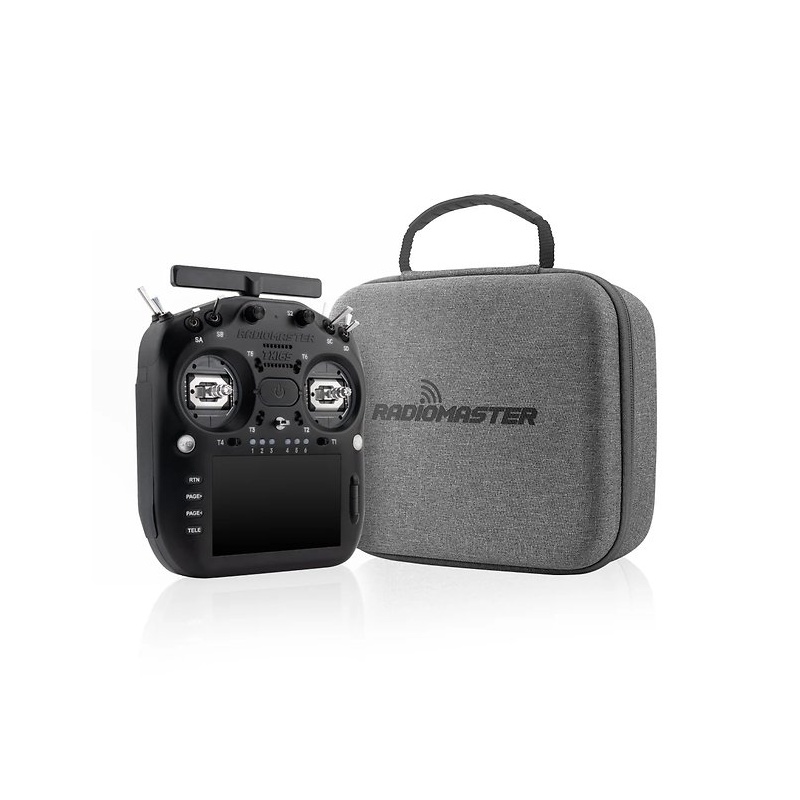

• 1× Signature carrying case (or transport case)
• 1× 18650 battery tray (or holder)
• 2× Replaceable shoulder panels
• 1× USB-C cable
• 1× Screen protector
• 1× 1.5mm Allen key (or hex wrench)
• 4× Soft gimbal springs
• 2× Gimbal stick ends (or screws)
• 1× Neck strap (or lanyard)
• 1× RadioMaster sticker set
• 1× User manual (in English)
• 1× Inventory card
