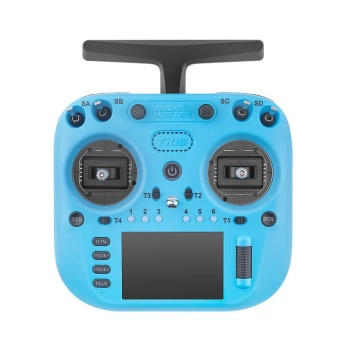

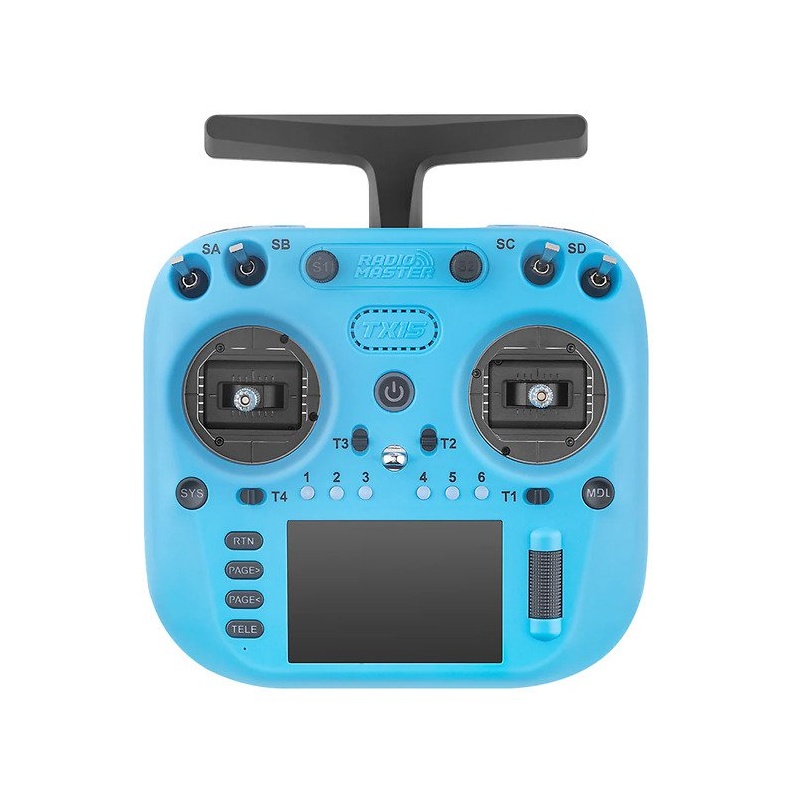

Radiomaster TX15 ELRS FPV remote control Iceberg Blue

The new TX15 ELRS from RadioMaster brings together high-end performance, innovative features and stylish design in a compact, robust radio. With integrated ExpressLRS 2.4GHz/900MHz, an ultra-sharp 3.5-inch touchscreen and precise V5.0 Hall sensor gimbals, this remote control is the perfect tool for professional FPV pilots and ambitious hobby pilots.

The powerful STM32 H7 chip ensures lightning-fast responses, while an efficient cooling system with fan and aluminum heat sink keeps a cool head even on hot days. The foldable antenna, adjustable antenna power, interchangeable shoulder switches and support for external modules make the TX15 a real all-round solution - whether freestyle, racing or long range!

Features

• Integrated ELRS module (2.4GHz / 900MHz) for reliable and long-range connection
• 3.5" IPS touchscreen display (480x320) - brilliant colors & intuitive operation
• Lightning-fast performance thanks to STM32 H7 chip - the fastest radio in its class
• V5.0 Hall sensor gimbals - precise control with M4 sticks
• Compact foldable antenna (2dB gain) - space-saving & powerful
• Efficient cooling system with quiet fan and aluminum heat sink
• Smart Battery Circuit - optimizes efficiency and extends battery life
• 4GB internal flash memory + microSD slot (up to 32GB, FAT32)
• Interchangeable shoulder switches - ideally adaptable to your flying style
• USB-C connectivity & easy updates via UF2
• Optionally available in different colors

Technical specifications

• Model: TX15 Radio Controller
• Dimensions: 178 × 168 × 81 mm
• Weight: approx. 605 g (without battery)
• Frequency: 2.400GHz OR Sub-G 900MHz
• RF module internal: ExpressLRS 2.4GHz / Sub-G 900MHz
• Protocols: Supports ExpressLRS
• Maximum channels: 16 (depending on receiver)
• Firmware: EdgeTX (from version 3.0.0)
• Display: 3.5-inch IPS touchscreen (480 × 320 px)
• Power supply: 6.6-8.4 V DC
• Power consumption: Max. 875 mA
• Compatible batteries:
  • 2S LiPo (7.4 V) (not included)
  • 2× 18650 Li-Ion (not included)
• Gimbals: V5.0 Hall sensor gimbals (M4 sticks)
• Antenna power: 2 dB (adjustable)
• Memory: 4GB internal flash + MicroSD slot (up to 32GB, FAT32)
• Upgrade method: USB-C (UF2)
• Module slot: JR-compatible for expansion modules
• Cooling: Active cooling with fan & aluminum heat sink
• Connection options: USB-C

In the box

• 1 × RadioMaster TX15 ELRS FPV radio controller Iceberg Blue
• 1 × Signature carrying case
• 1 × Short 2-position latching shoulder switch
• 1 × Short 2-position momentary shoulder switch
• 1 × 18650 battery tray
• 1 × USB-C cable
• 1 × Screen protector
• 1 × 1.5mm Allen key
• 4 × High-tension gimbal springs
• 2 × Gimbal stick grub screws
• 1 × Sticker set
• 1 × User manual (in English)
• 1 × Inventory card
