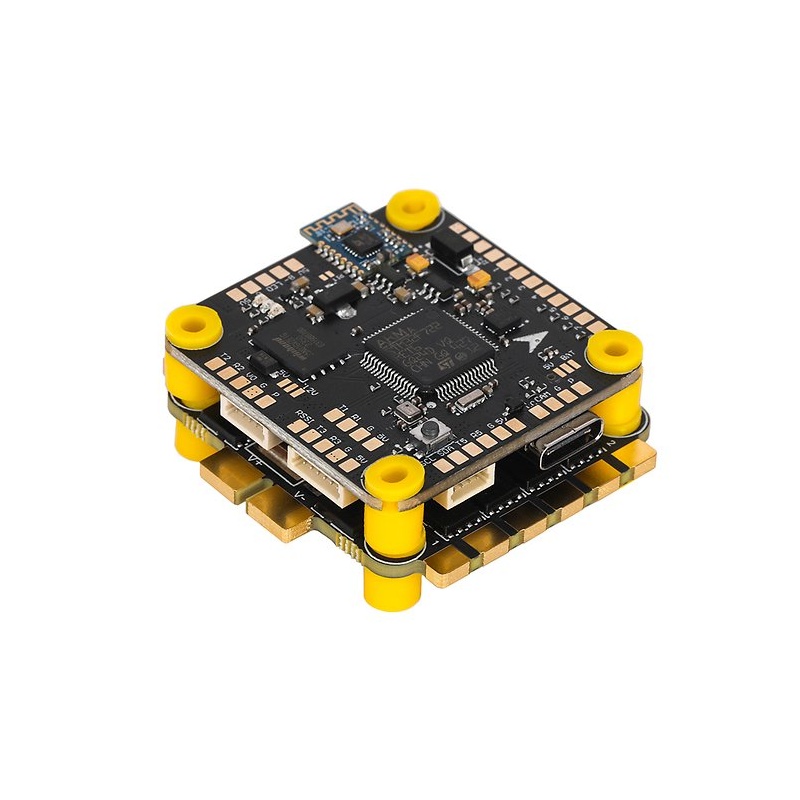

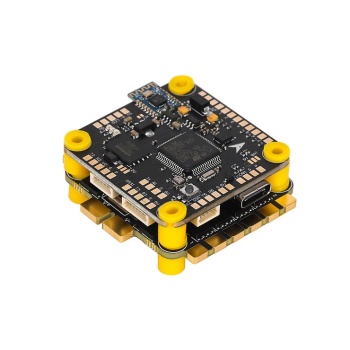

T-Motor Velox F7 SE +V70A 8S FC Flight Controller ESC Stack

Product description

The T-Motor Velox F7 SE + V70A 8S stack is the perfect choice for demanding FPV pilots who expect maximum performance, stability and reliability. Designed for powerful 8S setups, this stack system offers an impressive combination of state-of-the-art flight controller technology and an extremely resilient 70A 4-in-1 ESC.

Equipped with an STM32F722 processor, high-quality ICM42688P gyro and integrated Bluetooth, the Velox F7 SE enables precise control, easy configuration and reliable performance - even under extreme conditions. The integrated 128MB black box allows detailed log analysis for perfect tuning.

The V70A 8S ESC delivers brute power with 70A continuous current and 75A burst, ideal for large propellers, heavy builds and long-range setups. Thanks to AM32 firmware, you benefit from faster response, more efficient operation and optimum motor control.

This stack is ideal for 7-10 inch FPV drones, heavy-lift, long-range and high-speed builds.

Technical specifications

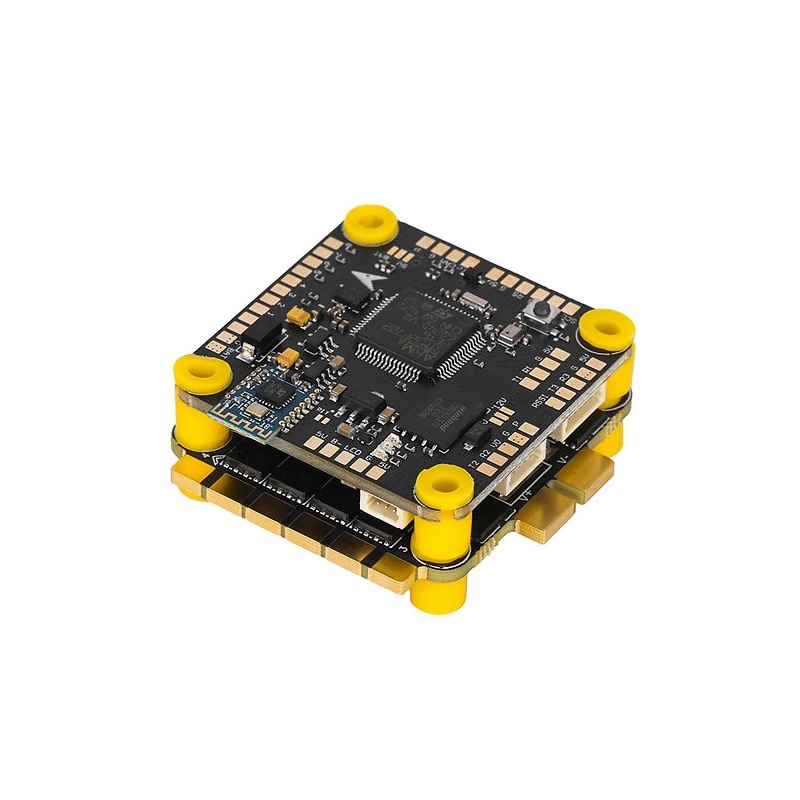

Flight Controller - Velox F7 SE

• Processor (MCU): STM32F722
• Gyroscope: ICM42688P
• Firmware: Betaflight
• Unified target: TMTR-TMOTORVELOXF7SE
• OSD: AT7456E (HD compatible)
• Blackbox: 128MB
• BEC: 5V 3A / 12V 3A
• Bluetooth: Yes
• UARTs: 5
• USB port: Type-C
• Input voltage: 4S - 8S LiPo
• Mounting: 30.5 × 30.5 mm / Ø4 mm
• Size: 38 × 38 × 7 mm
• Weight: approx. 8 g

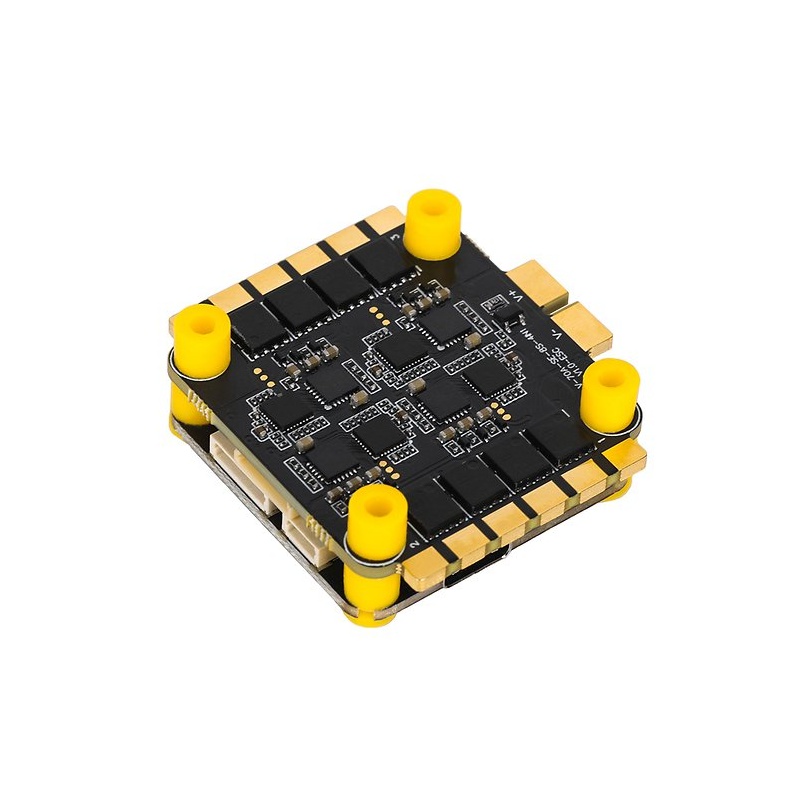

ESC - Velox V70A 8S 4-in-1

• Continuous current: 70A
• Peak current: 75A (5 seconds)
• Input voltage: 4S - 8S LiPo
• ESC MCU: AT32F421
• Firmware: AM32
• Protocols: DShot150 / 300 / 600
• Current sensor: Supported
• BEC: No
• Galvanometer Ratio: 150
• Mounting: 30.5 × 30.5 mm
• Size: 44.4 × 41 × 6 mm
• Weight: approx. 12.3 g
