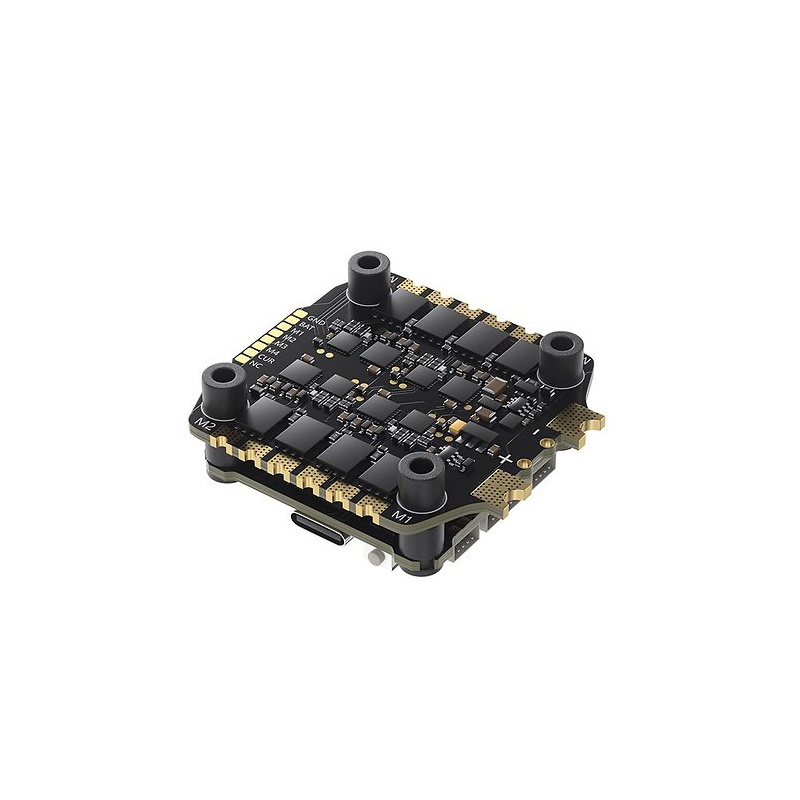

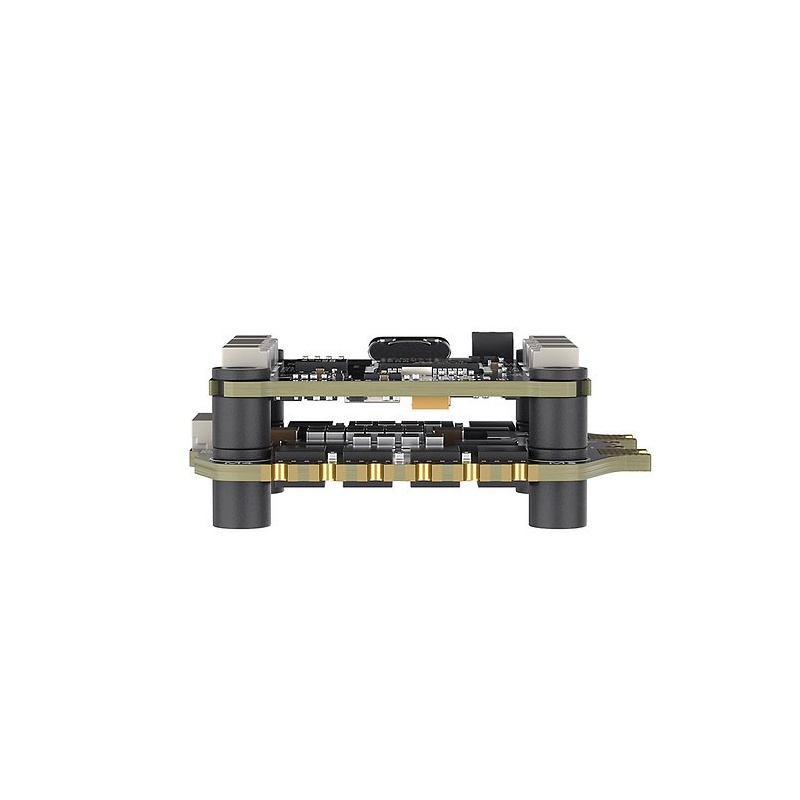

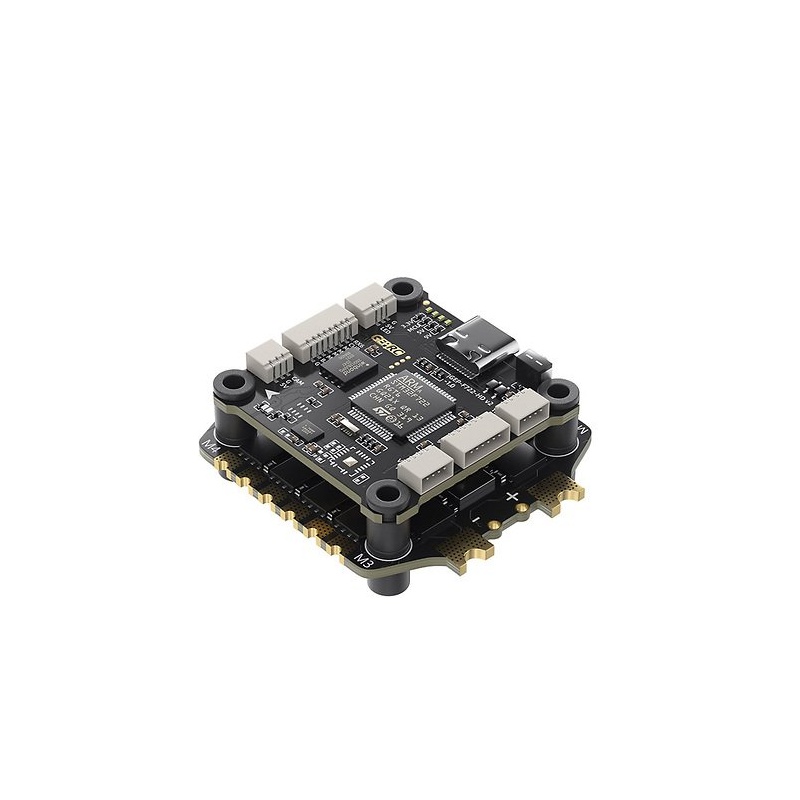

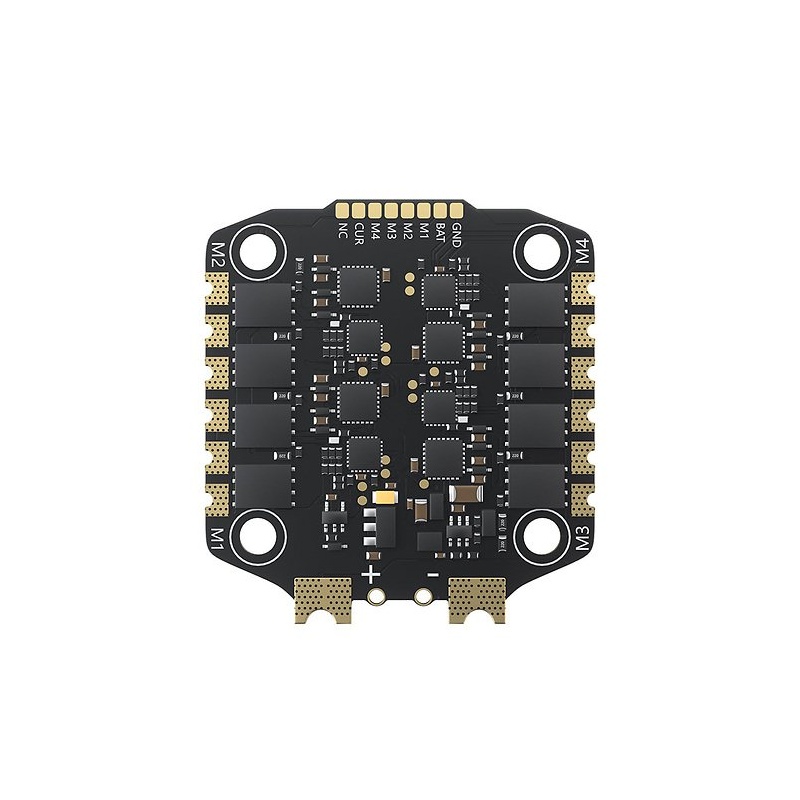

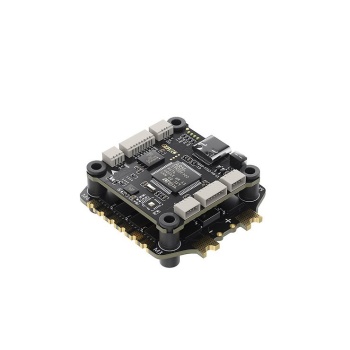

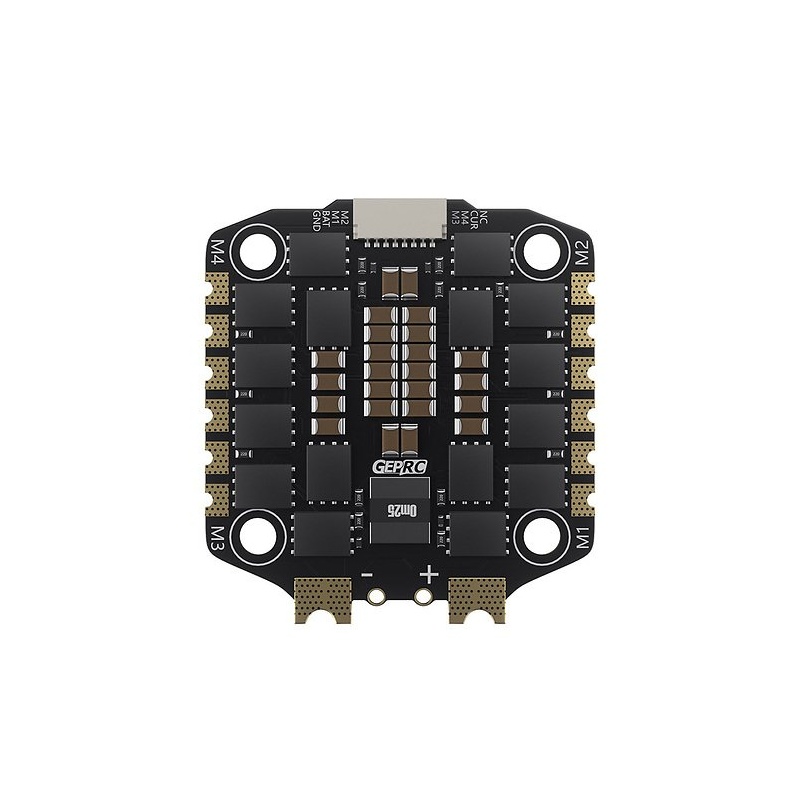

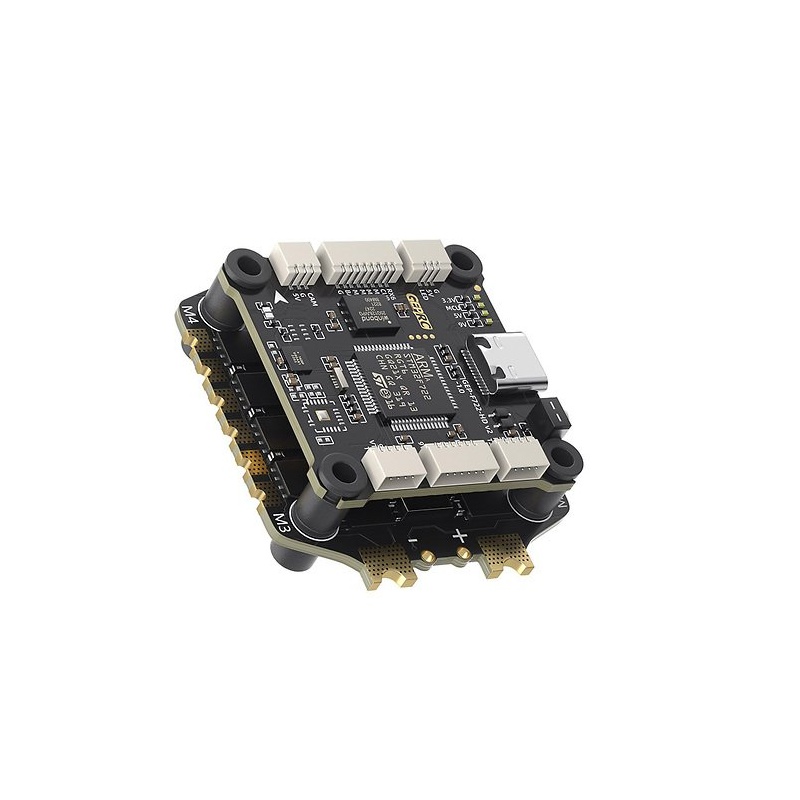

GEPRC Taker F722 BLS 60A V2 Stack

Product description

The GEPRC Taker F722 BLS 60A V2 Stack is a powerful and compact combination of a flight controller and a 4-in-1 ESC designed specifically for FPV drones. The stack is based on the STM32F722 chip and is equipped with an ICM42688-P gyroscope for precise flight control. The 4-in-1 ESC supports a continuous current of 60A and can deliver up to 65A for short periods. The stack is also DJI compatible and allows easy integration into FPV setups.

• STM32F722 chip for high computing power
• ICM42688-P gyroscope for precise control
• 16MB onboard black box memory
• Integrated LC filter for clean power supply
• Direct compatibility with DJI Air Unit
• USB-C interface

Specifications

• MCU: STM32F722
• IMU: ICM42688-P (SPI)
• Blackbox: 16MB
• OSD: BetaFlight OSD with AT7456E chip
• BEC: 5V@3A, 9V@3A dual BEC
• UART: 5
• Weight: 8.1g
• Size: 36.85 × 36.85 mm

• Input voltage: 3-6S LiPo
• Continuous current: 60A
• Burst current: 65A (5 seconds)
• Supported protocols: Dshot 150/300/600
• Weight: 14.9g
• Size: 42 × 45.7 mm

• 1 × Flight Controller
• 1 × ESC
• 1 × Capacitor
• 1 × DJI Air Unit adapter cable
• 1 × Flight Controller adapter cable
• 1 × XT60 power cable
• 4 × M3*30 screws
• 4 × M3*25 screws
• 8 × Nylon nuts
• 8 × Silicone grommets
• 2 × SH1.0 4-pin silicone cables
• 1 × Camera connection cable
