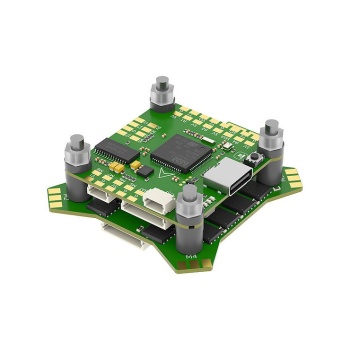

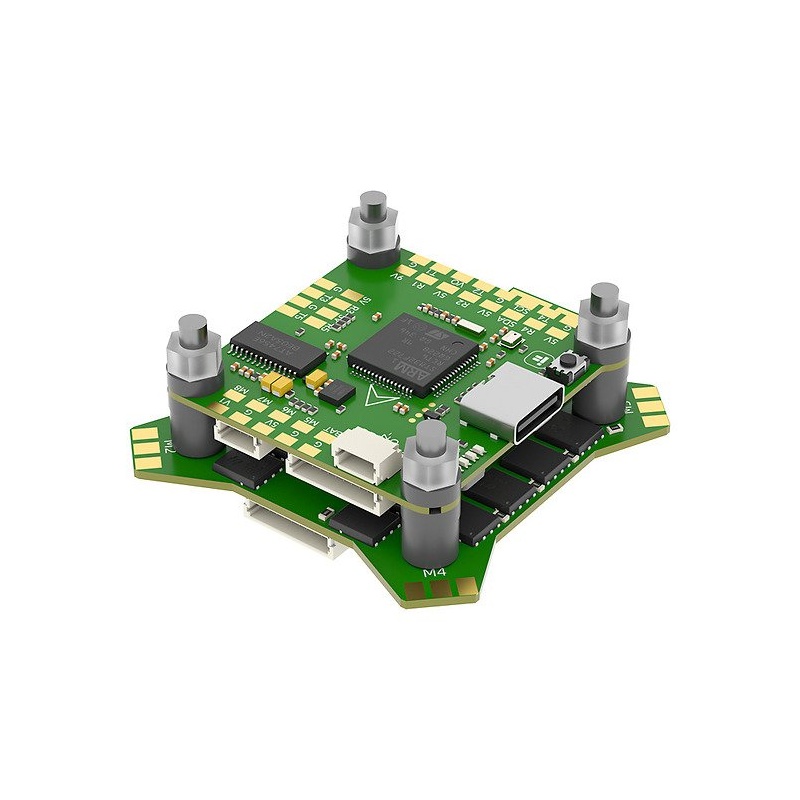

iFlight BLITZ F7 Stack E55S Flight Controller 4-in-1 ESC
SKU: IFL-BF18856
EAN: 4262556460318
Brand:
Unit: pc
In stock: Temporarily out of stock.
EAN: 4262556460318
Brand:
Unit: pc
In stock: Temporarily out of stock.
Price:
116,90 €
Product description
The iFlight BLITZ F7 Stack with the E55S 4-in-1 ESC is a high-performance electronics combo designed for large-scale FPV platforms and long-range drones. Powered by a fast STM32F722 processor and an ICM42688 gyroscope, it provides instant data loop times and top-tier flight filtering. The stack features integrated voltage debugging LEDs, an onboard LC filter for clean power delivery, and a dedicated, solder-free plug-and-play port for DJI Air Unit integration.
Note: This stack features a standard 30.5×30.5 mm mounting configuration. It is optimized for 7-inch long-range platforms (like the Chimera7 V2) and spacious 5-inch frames, but will not fit tight, narrow 5-inch frames requiring a 20×20 mm mini layout.
Specifications

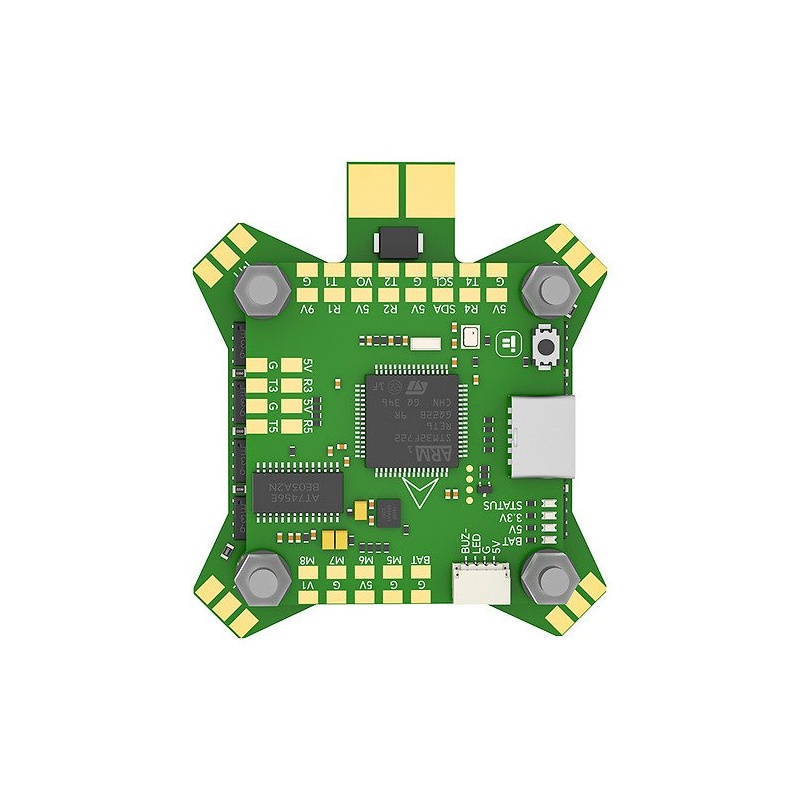

BLITZ F7 V1.2 Flight Controller:
- MCU: STM32F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD: AT7456E
- Blackbox: 32MB Flash
- UARTS: 6
- BEC: 5V 2.5A / 9V 2A
- Mounting Pattern: 30.5 × 30.5 mm / φ4mm
- Dimensions: 36.5 × 35 mm

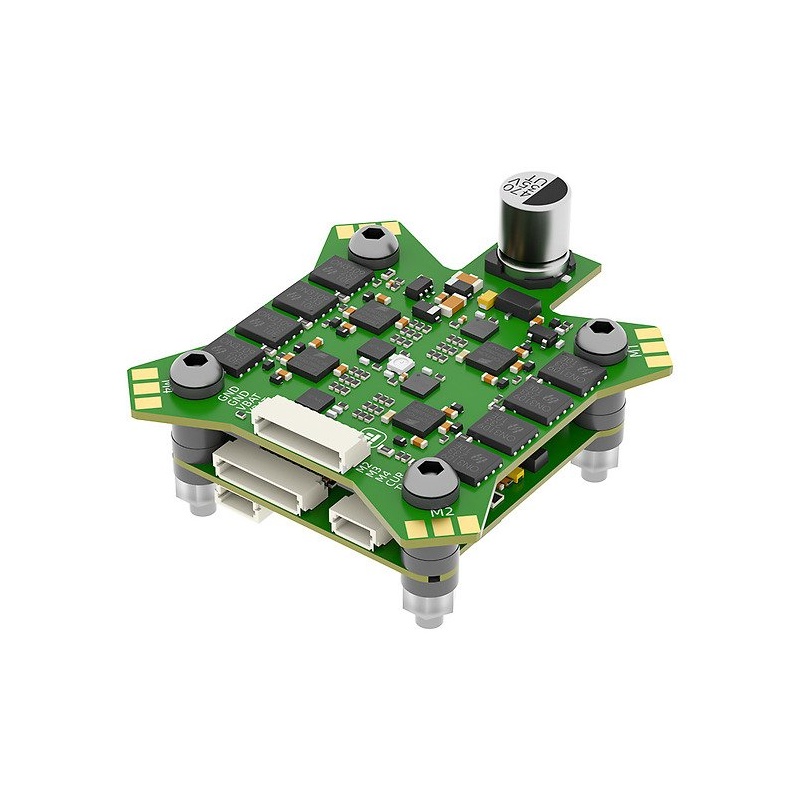

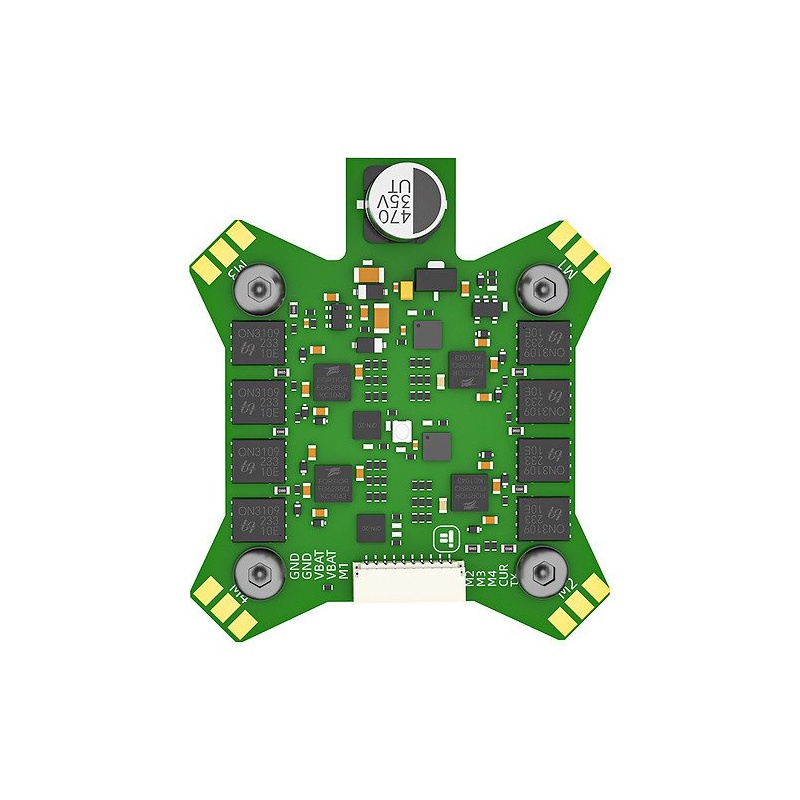

BLITZ E55S 4-IN-1 ESC:
- Input Voltage: 2-6S LiPo
- Constant Current: 55A
- Burst Current: 65A (5 seconds)
- MCU: BB21
- Telemetry & Current Sensor: Yes (Scale 200)
- Protocols: DShot 150/300/600
- Mounting Pattern: 30.5 × 30.5 mm / φ4mm
Packing List
- 1 × BLITZ F7 V1.2 Flight Controller
- 1 × BLITZ E55S 4-IN-1 ESC
- 1 × Silicon grommet set
- 1 × Solderless wire harness
