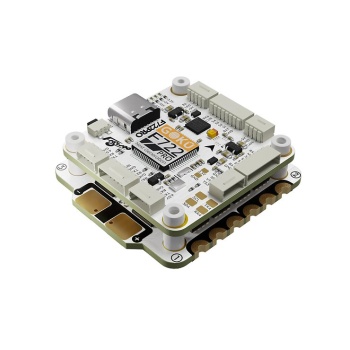

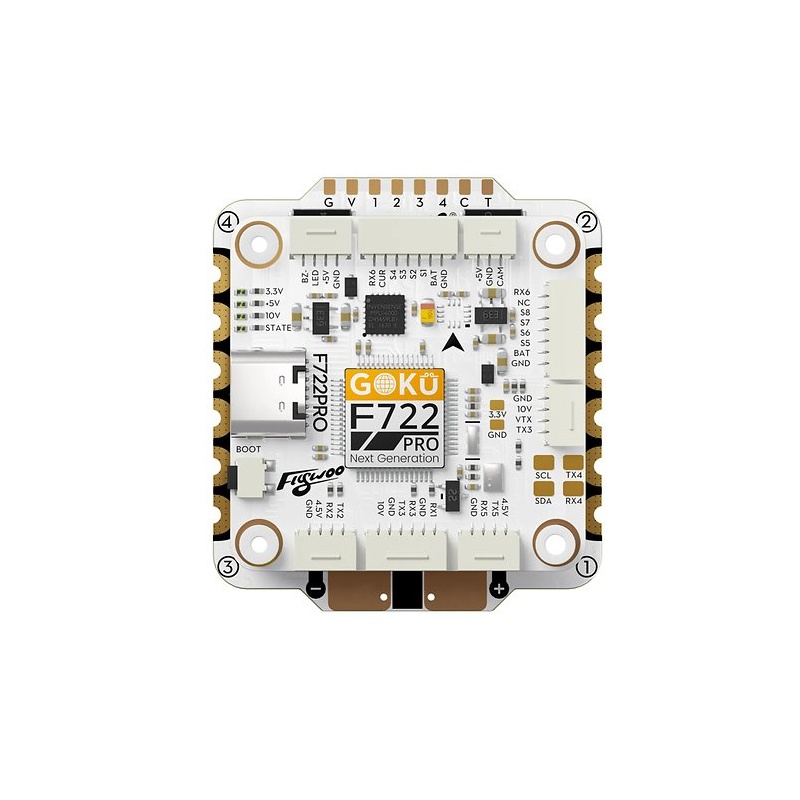

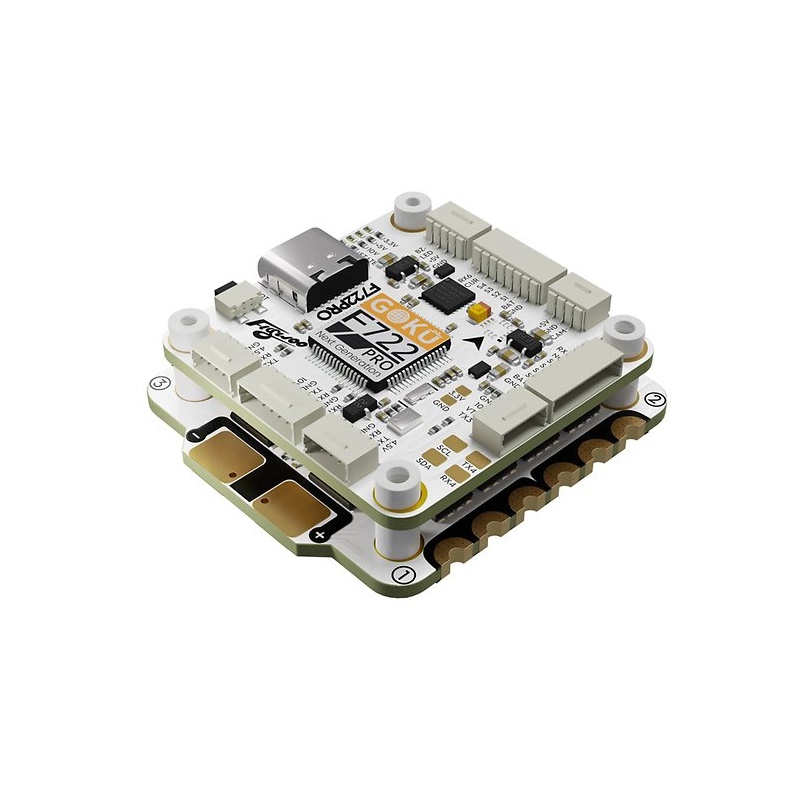

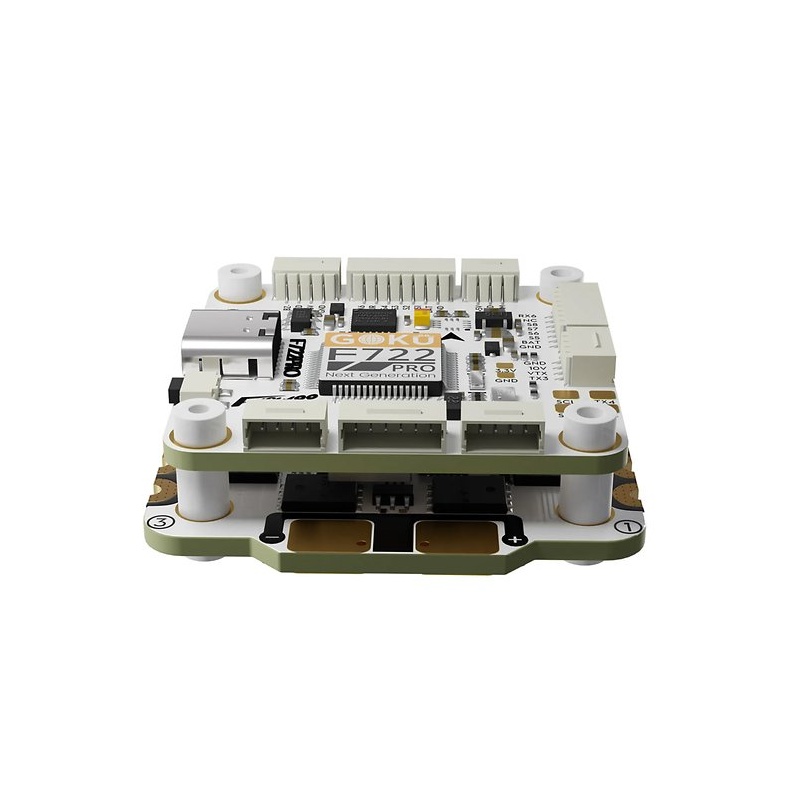

Flywoo GOKU F722 Pro V2 55A 32Bit 128K 30X30 Stack

Product description

The FLYWOO F722 PRO V2 Flight Controller is the perfect choice for FPV pilots who demand the highest performance and versatile connectivity. With a powerful STM32 F722 processor, a precise ICM42688 gyroscope and support for up to 8 motors, this flight controller offers everything you need for an unparalleled flying experience. Thanks to the well thought-out plug-in design, all components can be connected effortlessly and without soldering, making installation and maintenance much easier. With the plug-and-play function for the DJI O3 Air Unit, integrating HD video systems has never been easier.

Product specifications

• Model: GOKU F722 PRO V2 Flight Controller
• Firmware for Betaflight: FLYWOO F722PRO
• Firmware for INAV: FLYWOO F722PRO
• Processor: STM32F722 with up to 216MHz
• Gyroscope: ICM42688 for precise control and stability
• OSD: AT7456E
• Barometer: DP310
• Black box memory: 16MB
• UARTS: 1/2/3/4/5/6
• Input voltage: 7.4V-26V / 2-6S LiPo
• BEC: 10V 3A and 5V 3A for stable power supply
• Size of the controller: 37mm x 37mm x 8mm
• Mounting holes: M3 30.5x30.5mm
• Weight: 9.9g

GOKU G55M BL32 / AM32 4in1 ESC

• Supported firmware: BL32 or AM32 (depending on version)
• Supported Dshot modes: Dshot300, Dshot600, Dshot1200
• PWM frequency: 24k-128k
• Input voltage: 3-6S LiPo
• Continuous current: 55A
• Firmware for BL32: GOKU_F4A32_PRO
• Firmware for AM32: AT32DEVF421
• Weight: 15g

In the Box

• 1× FC & ESC connecting cable
• 1× Buzzer connecting cable
• 1× GPS connecting cable
• 1× DJI O3 connecting cable
• 1× Receiver connecting cable
• 4× M3 anti-vibration damping balls
• 7× M3 rubber O-rings
• 1× Analog VTX connecting cable
• 1× Camera connecting cable
