Vifly ShortSafer V2 Smoke Stopper XT30 XT60

SKU: VFL-SHORT-SAF-V2
EAN: 0714676995217
Unit: pc
In stock: Temporarily out of stock.
Price:
15,00 €
Qty.: - +
   - or -
Product description

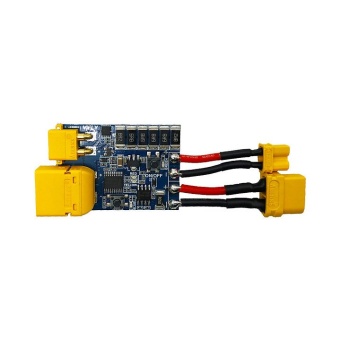

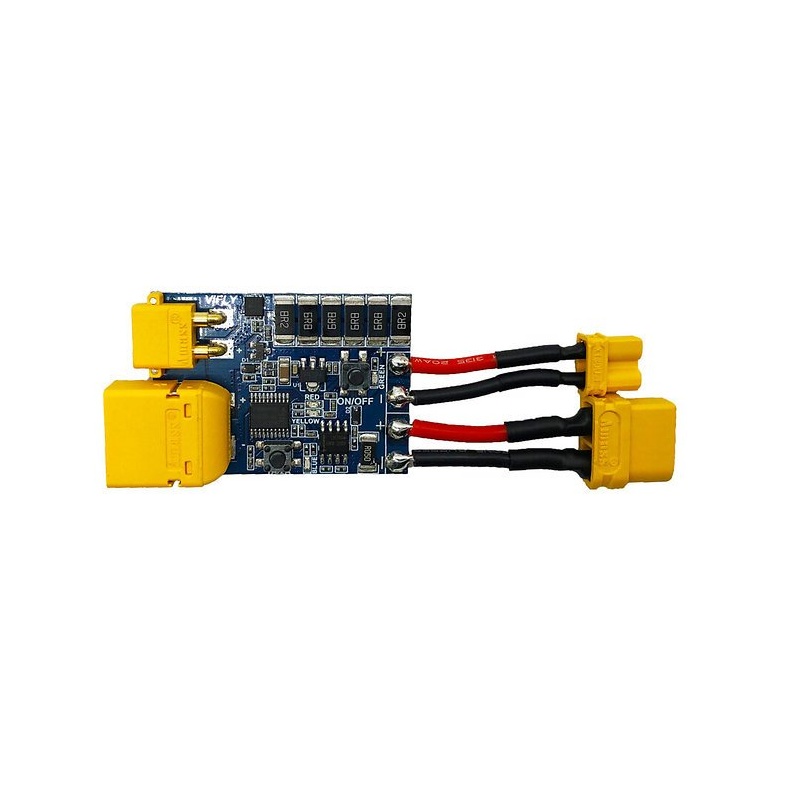

The VIFLY ShortSaver V2 is a smart electronic smoke stopper that serves as an essential safety tool for every FPV drone builder and RC enthusiast. Unlike traditional automotive light-bulb alternatives or resettable polyfuses that merely limit the current flow—allowing leakage current to potentially destroy sensitive hardware—the ShortSaver V2 utilizes an advanced digital electronic fuse architecture. Upon detecting a short circuit or wiring mistake, it cuts off the current flow completely within a blistering 3 milliseconds, saving your premium flight controllers, ESCs, and VTX modules from catastrophic "magic smoke".

The V2 iteration comes natively equipped with high-quality Amass XT30 and XT60 connectors on both input and output ends, providing ultimate convenience for testing micro whoops up to 5-inch rigs without needing intermediate power adapters. It features an integrated physical ON/OFF power switch, making it incredibly easy to cycle power without wearing down your battery leads—perfect for bench testing and receiver binding routines. A toggle switch allows you to seamlessly transition between a highly sensitive 1A threshold for smaller, lower-power micro builds and a robust 2A threshold for larger rigs running power-hungry components like digital HD video units.


Highlights:
  • True Electronic Fuse: Instantly snaps open to drop current to zero rather than letting damaging current leak through.
  • Ultra-Fast Trip Times: Shuts off power in ~3ms for short circuits and ~10ms for over-current states.
  • Dual Connector Layout: Built-in genuine Amass XT30 and XT60 configurations right on the PCB.
  • Dedicated Power Switch: Provides an easy way to enable or disable output during critical binding procedures.
  • Selectable Amperage Modes: Easily switchable 1 Amp or 2 Amp cut-off thresholds tailored to your rig's demands.

Technical specifications
  • Manufacturer: VIFLY
  • Model: ShortSaver V2 Smart Smoke Stopper
  • Dimensions: 42 × 30 × 10 mm
  • Connectors: XT30 & XT60 (Input and Output)
  • Current Thresholds: Selectable 1A or 2A
  • Trip Time: ~3ms (Short Circuit) / ~10ms (Over-current)
  • Input Voltage: 7V – 25V (2S – 6S LiPo compatible)
  • Weight: approx. 15g

In the box
  • 1 × VIFLY ShortSaver V2 Smart Smoke Stopper
