iFlight Xing E 2207 Pro 1800KV 6S Racing Motor

SKU: IFL-B006722
EAN: 4260449987959
Brand:
Unit: pc
In stock: Temporarily out of stock.
Price:
15,90 €
Qty.: - +
   - or -
Product description

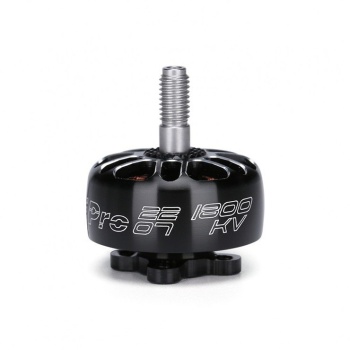

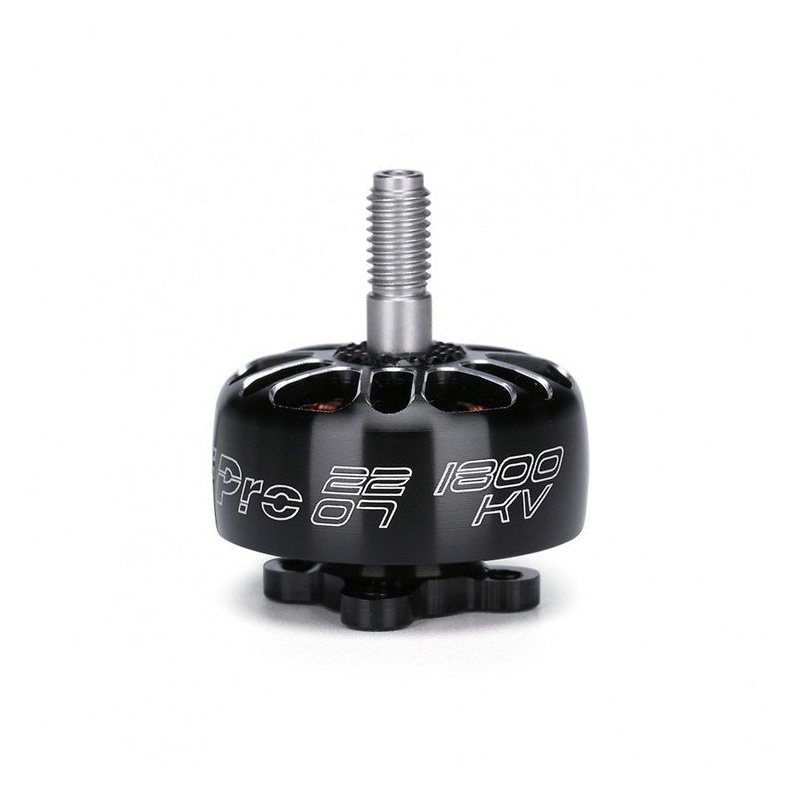

The iFlight XING-E Pro 2207 1800KV is the optimized and highly cost-effective "E" (economical) version of the legendary XING motor family, engineered to deliver top-tier flight dynamics and raw durability without stretching your budget. Specifically tailored for high-voltage 6S LiPo power configurations on 5-inch and 6-inch FPV drones, this 2207-sized power plant carries the well-known XING track record for unwavering flight performance.

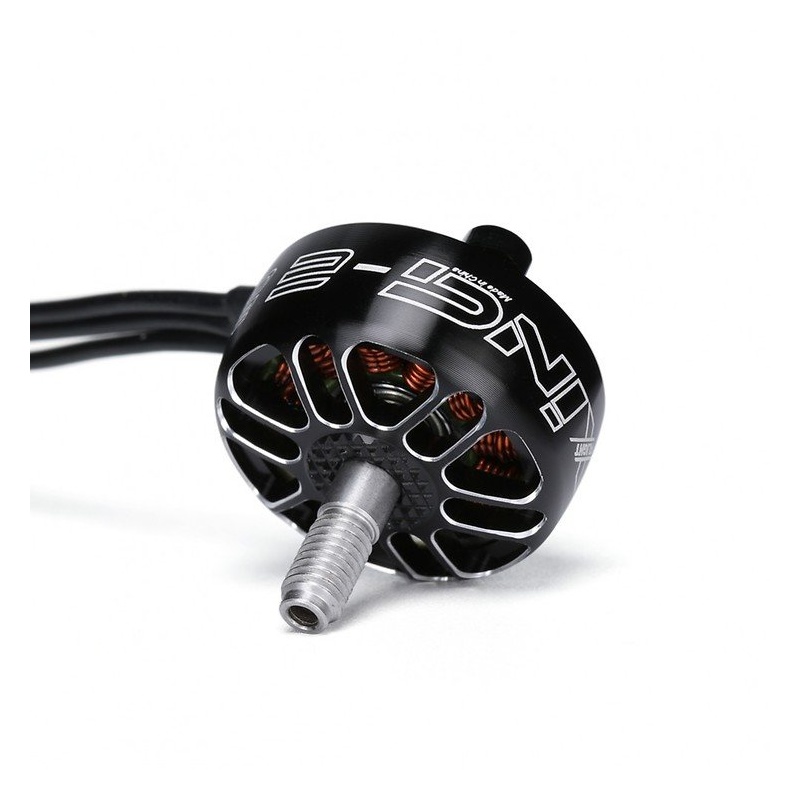

The Pro variant introduces a robust Unibell design (the motor bell is precision-machined from a single block of aluminum), vastly upgrading crash resilience in harsh bando environments and technical racing gates. Deviating from the titanium components of the premium tier, the XING-E Pro adopts a hardened, high-strength 5mm hollow steel shaft that stands up to severe bending forces and holds props tight under heavy braking loads. Power delivery is optimized via premium single-strand copper windings, high-temperature capable N52H arc magnets, and oversized, smooth-rolling Japanese NSK 9x4x4mm bearings. The result is a highly linear throttle response with an unmatched price-to-performance ratio.


Highlights:
  • Crash-Resistant Unibell Housing: One-piece structural bell limits damage from severe impacts.
  • 5mm Hollow Steel Shaft: Hardened steel shaft design engineered for maximum shear resistance.
  • N52H High-Temp Magnets & NSK Bearings: Maintains high torque output under heavy thermal loads with smooth bearing rotation.
  • Single Strand Copper Winding: Ensures efficient current conduction and superior thermal heat dissipation.
  • Hex Bolt Set Screw: Provides secure bell retention while allowing easy access for internal cleaning.

Technical specifications
  • Manufacturer: iFlight
  • Model: XING-E Pro 2207 (NextGen E-Series)
  • SKU / Target Target: B006722 / Pro874
  • KV Variant: 1800KV
  • Configuration: 12N14P
  • Input Cells (LiPo): 2S - 6S (Optimized for 6S setups)
  • Stator Dimensions: 22 mm diameter, 7 mm length
  • Overall Dimensions: φ28.5 × 33.1 mm
  • Shaft Options: 5mm diameter prop shaft (13.5mm protruding length)
  • Max Continuous Power (W) 60s: 845.3 W
  • Peak Burst Current: 35.22 A
  • Internal Resistance (Rm): 81.5 mΩ
  • Weight (including wires): 33.8 g
  • Motor Lead Length: 150 mm / 20AWG wire

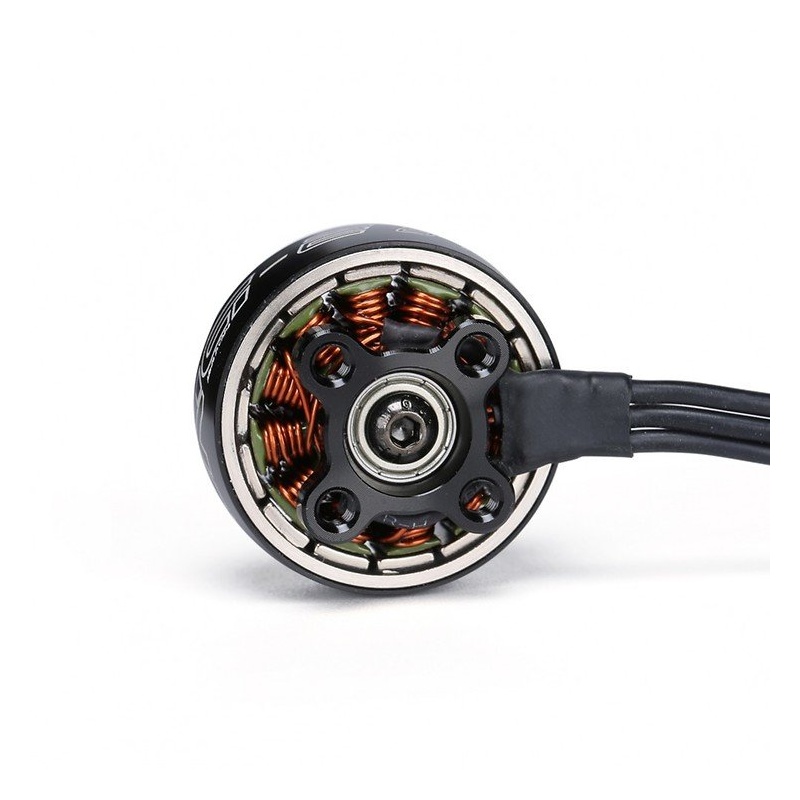

  • Base Mounting Pattern: 16 × 16 mm (M3 sizing)

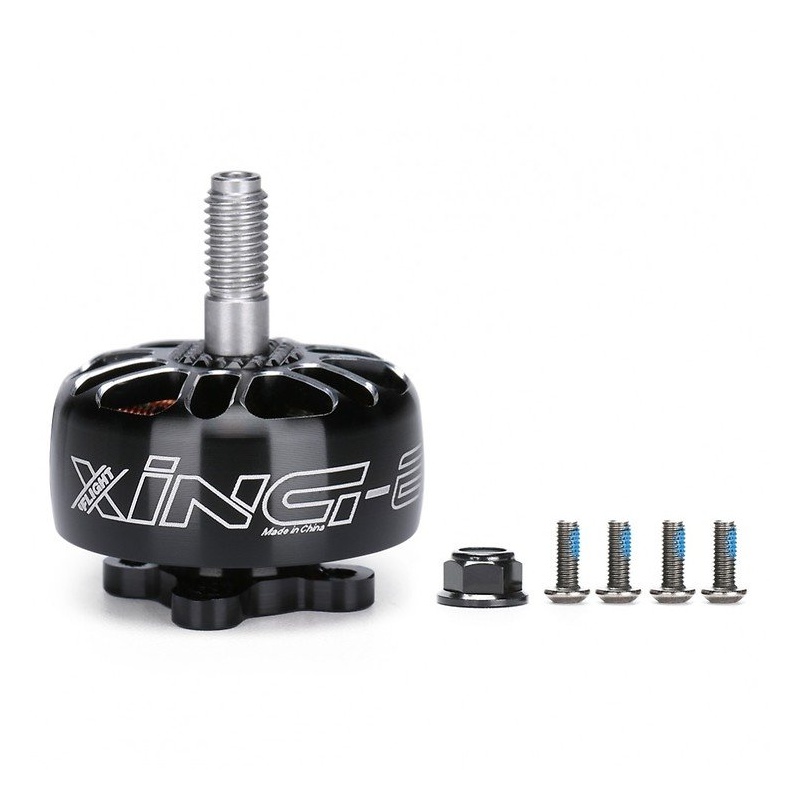

In the box
  • 1 × iFlight XING-E Pro 2207 1800KV Brushless Motor
  • 4 × M3×8 mm hex mounting screws
  • 1 × M5 Flanged Nylon-Insert Lock Nut
