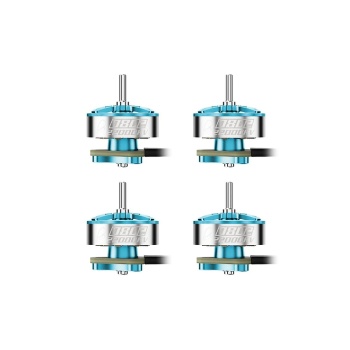

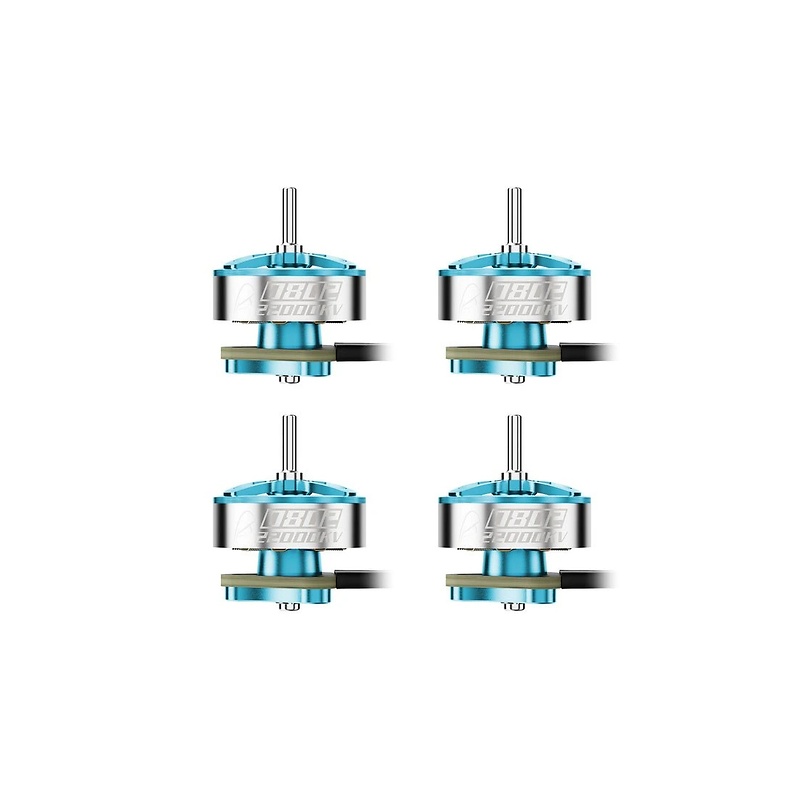

BetaFPV 0802 22000KV FPV Motor Freestyle 4 pieces
Price:
49,90 €
Product description
The BetaFPV 0802 22000KV Freestyle brushless motors are specially designed for ultra-smooth, precise, and efficient micro-FPV flights. This brushless motor is optimally matched to the freestyle version of the modern Air75 II platform, providing exceptionally smooth and linear torque precisely at low RPMs. Thanks to this, pilots achieve highly precise altitude hold, fluid transitions between maneuvers, and stable flight behavior – making it the ideal choice for controlled flight lines and indoor cinematic FPV captures.
Key features include an industry-first ultra-thin 0.10 mm stator core that reduces magnetic losses and heat generation, alongside an optimized magnetic circuit for consistent power and low-end torque. For durability, it features a reinforced rotor housing and robust shaft construction, while weighing an ultra-light 1.88 g.
Technical specifications:
- Model: BetaFPV 0802 Freestyle
- KV value: 22000KV
- Maximum power: 22.73 W
- Maximum current: 5.9 A
- Rated voltage: 4.2 V (1S LiPo/LiHV)
- Bearing type: Brass bushings
- Stator core: 0.10 mm ultra-thin core
- Shaft diameter: 1.0 mm | Shaft length: 4 mm
- Wires: 30 AWG, 35 mm length
- Connector: JST-1.25 (3-pin)
- Mounting setup: 3 × M1.4 mounting holes (bolt circle Ø 6.6 mm)
- Weight: 1.88 g (per motor)
- Quantity: 4 pcs in a set (blue)
In the box:
- 4 × BetaFPV 0802 Freestyle 22000KV motors
- 12 × M1.4 × 3 mounting screws
