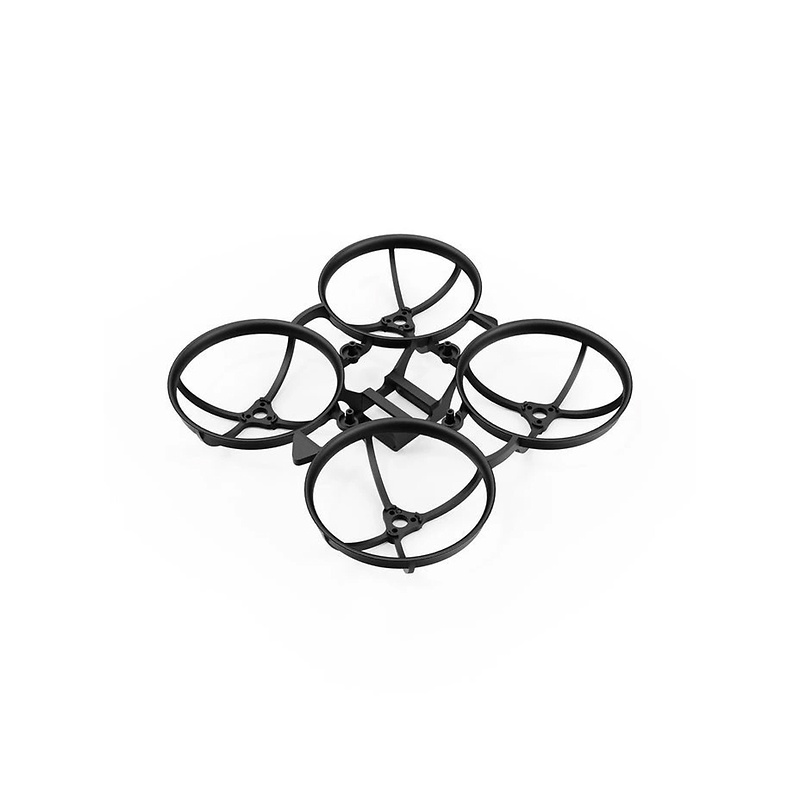

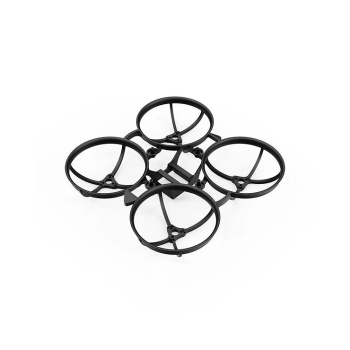

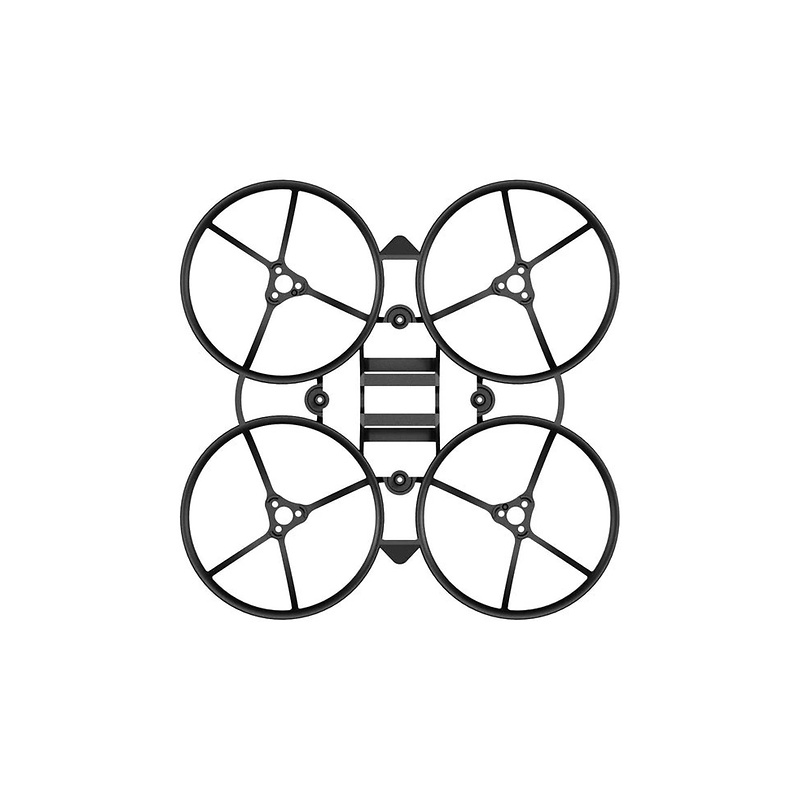

BetaFPV Air75 II Whoop Quadcopter Frame black

The BetaFPV Air75 II Whoop Frame is specifically designed to maximize the performance of micro FPV drones and Tiny Whoop racing builds. Weighing just 4g, this frame combines high stability, efficient aerodynamics and a particularly robust design - ideal for indoor racing, freestyle flying and fast micro FPV builds.

The frame is made of durable polypropylene (PP) and has been optimized together with the international FPV community. Thanks to the improved duct geometry (propeller channels) and the reduction of the arm struts from six to four, the weight has been reduced while the static thrust has been increased by around 11%. As a result, the drone reacts faster to control commands and delivers more precise PID performance.

The integrated shock-absorbing PP matrix absorbs impact energy during crashes and protects sensitive components. In addition, protected screw mounts, a lowered channel profile and larger 25.5 × 25.5 mm flight controller mounting points ensure easy installation and a durable construction.

With its 75 mm wheelbase, the Air75 II Frame offers an excellent balance between stability and agility. The aerodynamic design provides a more efficient airflow, making the frame particularly suitable for aggressive indoor racing, freestyle maneuvers and precise micro FPV flights.

Technical specifications

General specifications

• Model: BetaFPV Air75 II Brushless Whoop Frame
• Color: Black
• Material: Polypropylene (PP)

Frame dimensions

• Wheelbase: 75 mm
• Maximum size: 99.1 × 99.1 × 16.2 mm

Mounting

• Motor mounting: 3 × M1.4 (Ø 6.6 mm bolt circle)
• Flight controller mounting: 25.5 × 25.5 mm

Battery

• Battery compartment size: 16.3 × 6.3 mm

Weight

• Weight: 4.0 g
