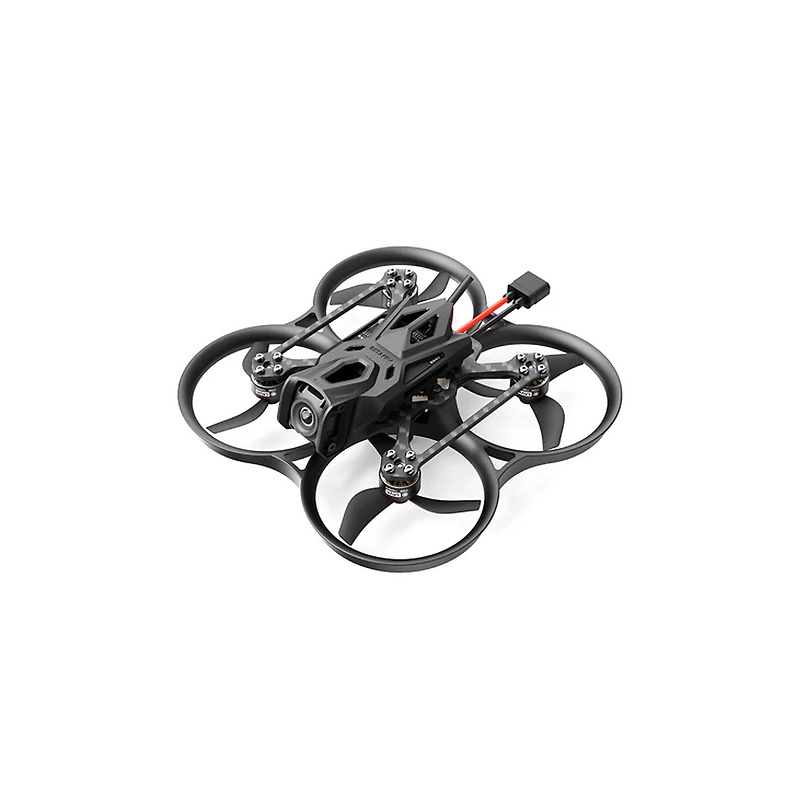

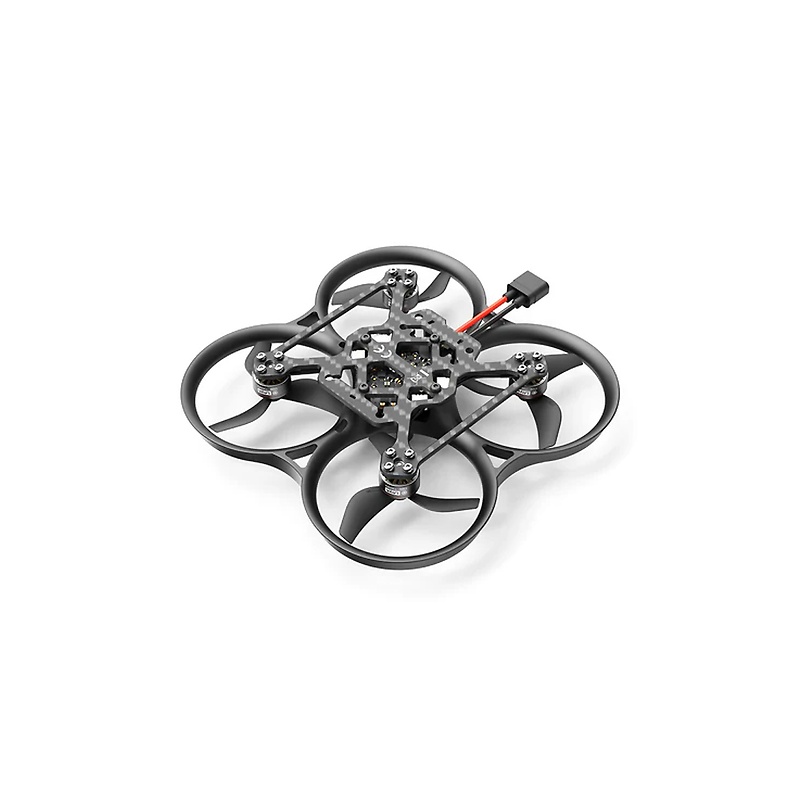

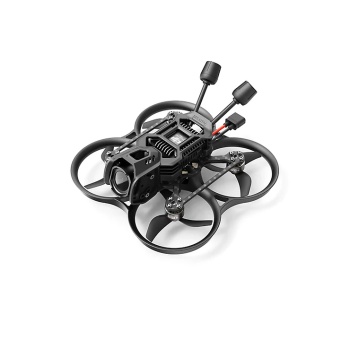

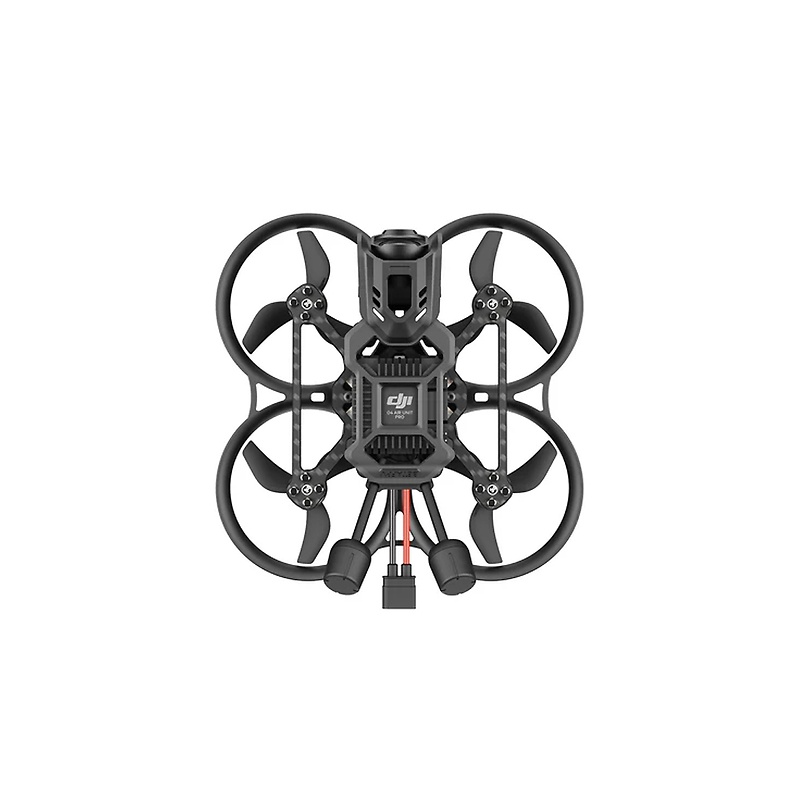

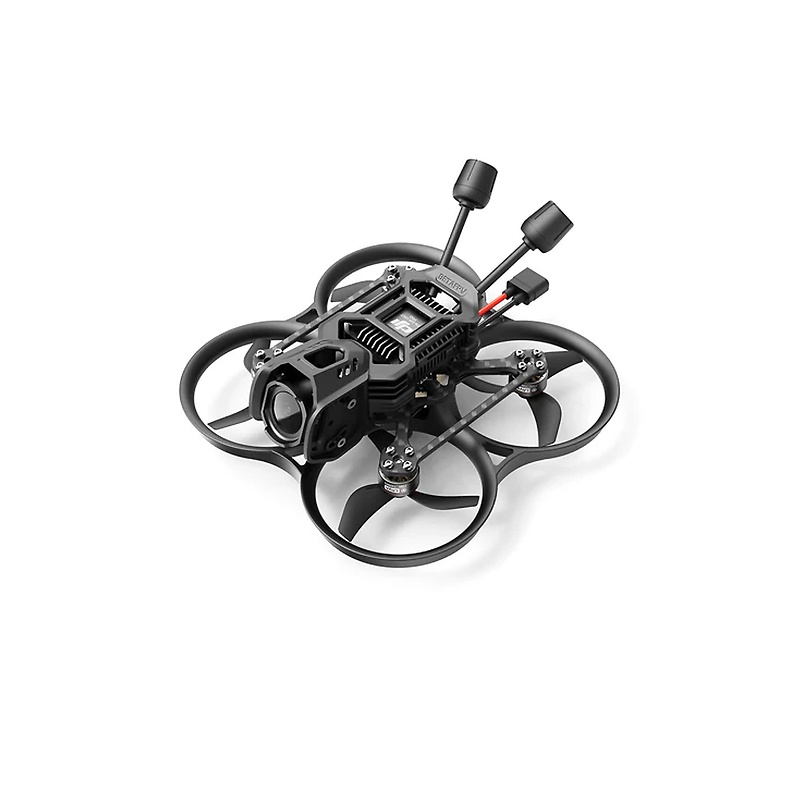

BetaFPV Pavo20 Pro II HD DJI O4 Pro FPV Whoop Quadcopter 2.4GHz ELRS

SKU: BET-01010048-1
EAN: 0795986632382
Brand:

Unit: pc
In stock: Temporarily out of stock.

kuumaks al. 41,57 €

Price:

489,00 €

Description

Product description

The BetaFPV Pavo20 Pro II HD is an advanced 2.2-inch cinewhoop designed specifically for high-quality HD footage and dynamic freestyle flights. With support for DJI O4 Air Unit and O4 Air Unit Pro, this FPV drone combines ultra-lightweight design with impressive performance and stable video quality.

Weighing only 107.7 g (including O4 Pro), the Pavo20 Pro II is one of the lightest HD cinewhoops in its class. The newly developed Pavo20 Pro II frame with reinforced structure and innovative 4-screw assembly ensures a particularly stable construction and at the same time facilitates assembly and maintenance.

The drone is powered by powerful LAVA 1104 7200KV brushless motors in combination with specially developed Gemfan 2218 3-blade propellers. This propulsion system delivers an impressive thrust ratio and enables fast acceleration, precise control and smooth freestyle maneuvers. The aerodynamic frame structure also provides an 8-11% increase in thrust compared to previous generations.

The specially developed O4 Air Unit Pro mount ensures stable video recordings, reducing vibrations and enabling smooth, high-quality HD recordings. In addition, the frame is compatible with ND and UV filters to enable perfect shots even in difficult lighting conditions.

The integrated F4 2-3S 20A AIO flight controller offers high processing power and fast response times for precise freestyle flights. The integrated BEC outputs provide stable voltages for the DJI O4 systems and external components.

Another highlight is the integrated NightFire RGB LED strip, which ensures better visibility when flying and at the same time offers impressive lighting effects. buttons can be used to select 10 different lighting modes and 7 colors.

With a flight time of around 6 minutes 30 seconds (with a LAVA 3S 550mAh battery), the Pavo20 Pro II is ideal for cinematic FPV recordings and dynamic freestyle flights.

Thanks to the integrated ELRS 2.4GHz receiver, you get a reliable control connection with low latency and long range.

Technical specifications

Model: BetaFPV Pavo20 Pro II Brushless Whoop
Wheelbase: 93.9 mm
Frame: Pavo20 Pro II Brushless Frame
Weight: 107.7 g (with DJI O4 Pro)

Electronics

Flight controller: F4 2-3S 20A AIO FC V1
ESC: 20A
Receiver: Serial ELRS
Battery connection: XT30

Video & Camera

Supported systems: DJI O4 Air Unit / DJI O4 Air Unit Pro (included)
HD VTX mount: O4 Air Unit Pro Bracket / O4 Air Unit Bracket II
Camera filter mounting: Vertical
Supported filters: ND filter for O4 Pro camera

Drive unit

Motors: LAVA Series 1104 - 7200KV Brushless
Propeller: Gemfan 2218 3-blade (1.5 mm shaft)

Lighting

RGB LED: NightFire RGB LED strip
Effects: 10 lighting modes, 7 colors

Power supply

Battery connection: XT30
Battery slot: 20 mm width (unlimited height)
Recommended batteries: LAVA II 3S 580mAh, LAVA II 3S 680mAh, LAVA 3S 450mAh 75C, LAVA 3S 550mAh 75C

Flight performance
