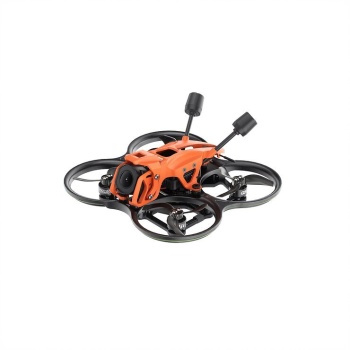

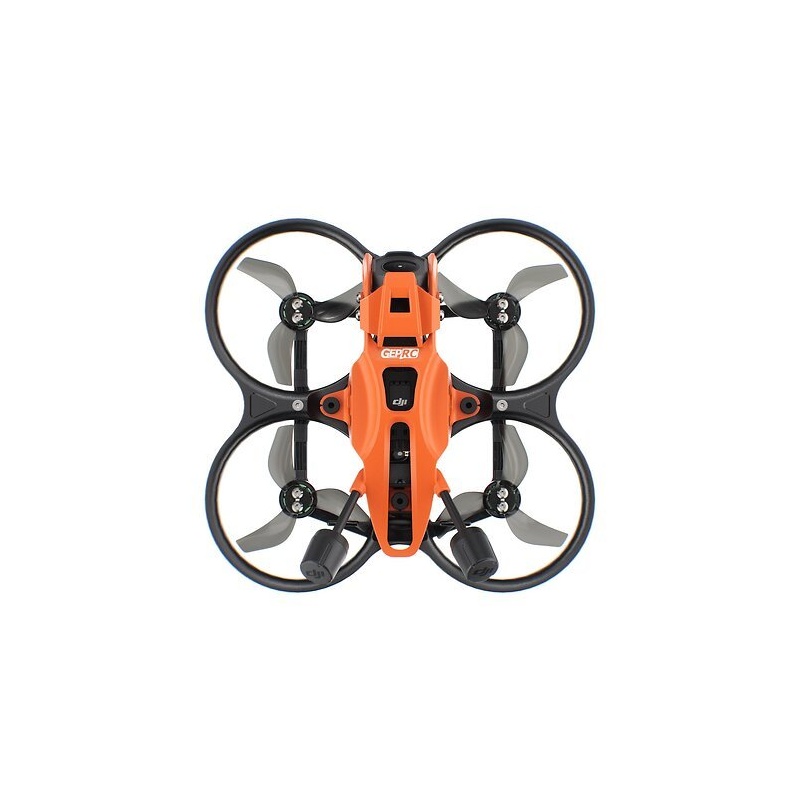

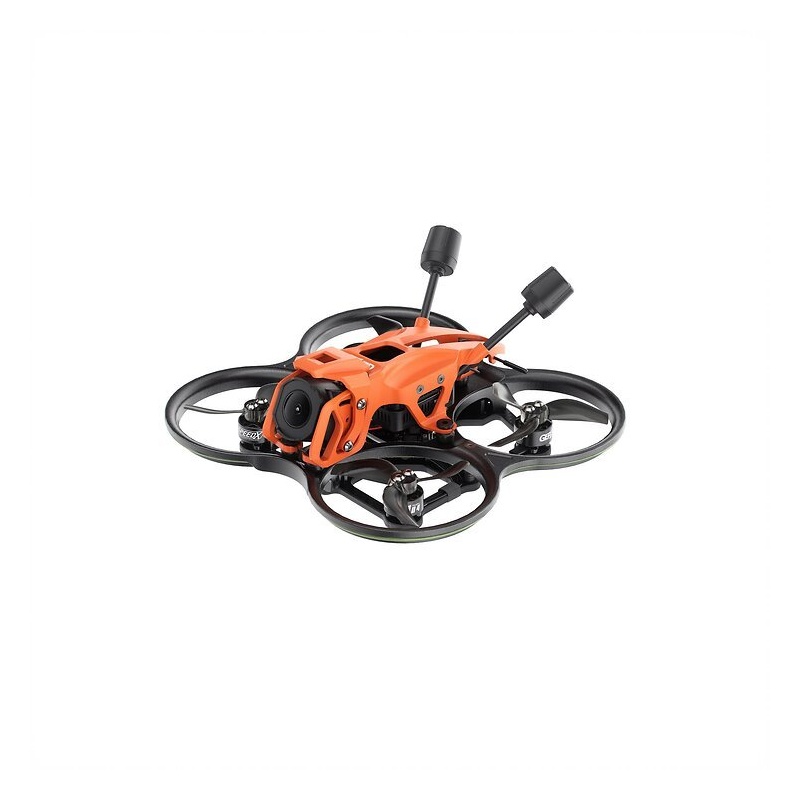

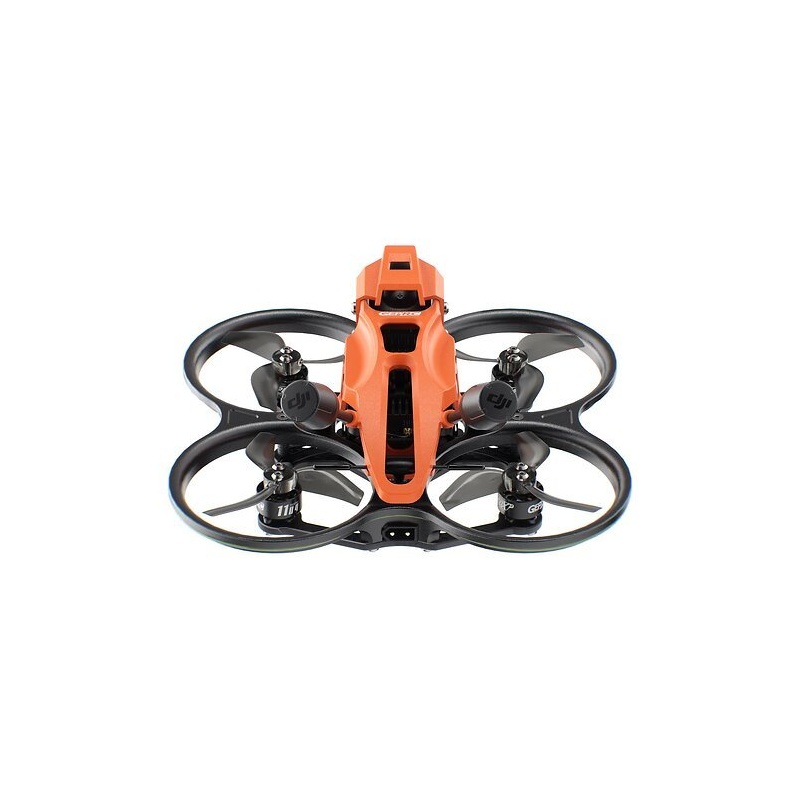

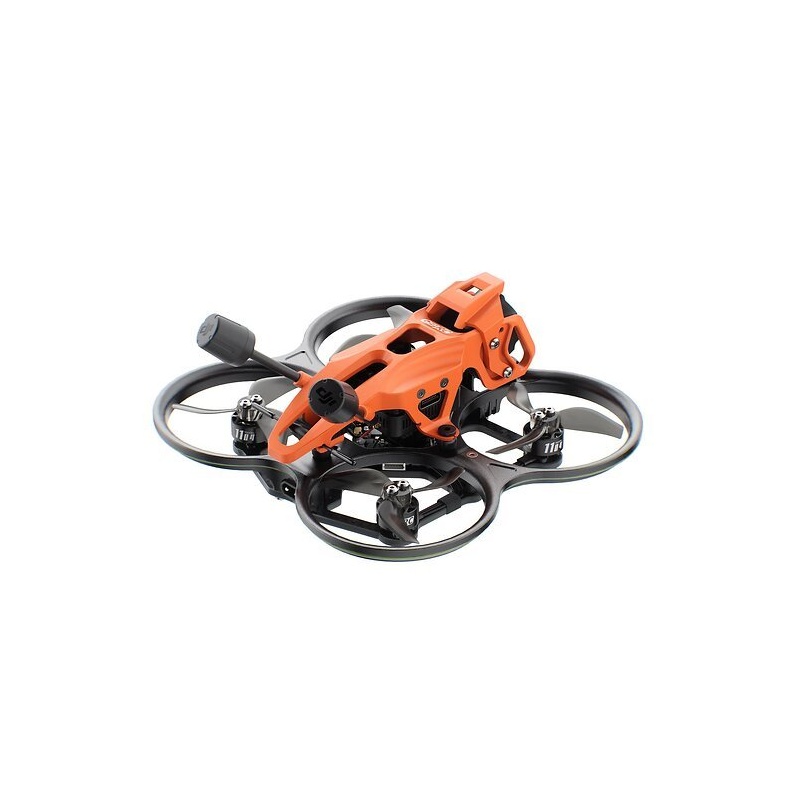

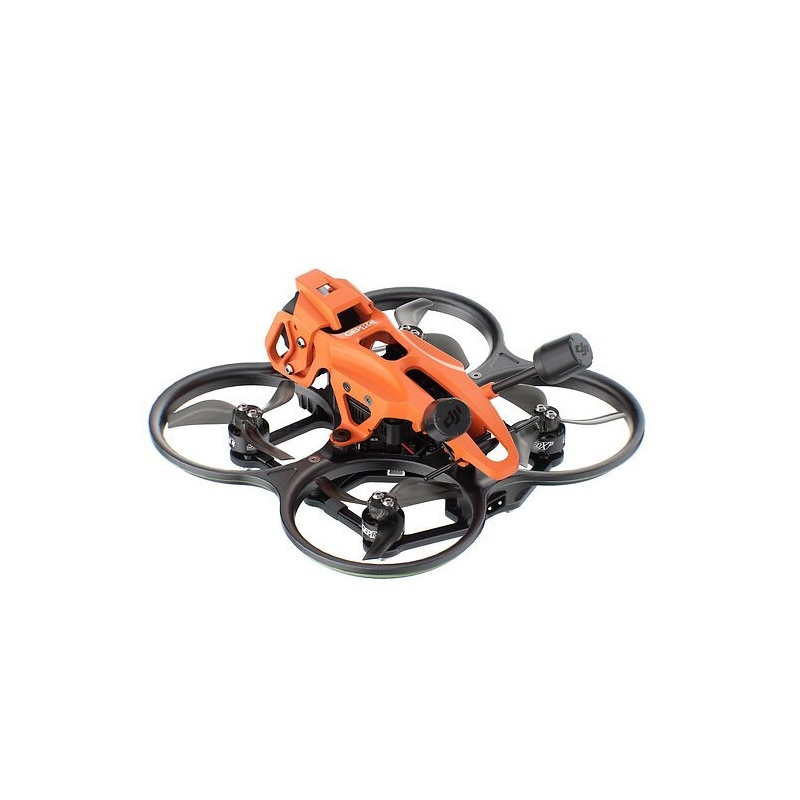

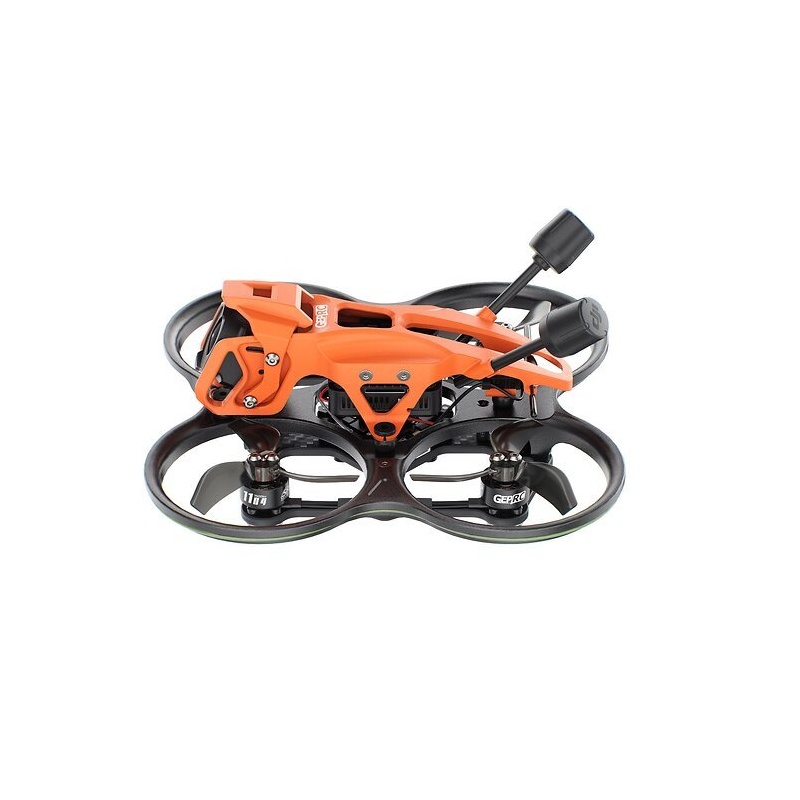

GEPRC DarkStar22 DJI O4 Pro CineWhoop Quadcopter 3S 2.4G ELRS

Product description

The GEPRC DarkStar22 DJI O4 Pro CineWhoop drone combines impressive performance, modern HD technology and a particularly compact, crash-resistant design. Equipped with the DJI O4 Air Unit Pro system, it offers razor-sharp HD transmission with extremely low latency and even supports 4K video recording at up to 120 fps - perfect for cinematic FPV shots in the smallest of spaces.

Technical specifications

• Model: GEPRC DarkStar22 O4 Pro
• Frame: GEP-DS22
• Wheelbase: 100 mm
• Main carbon fiber plate: 2.5 mm
• Flight Controller: TAKER F405 20A ELRS2.4 2-4S AIO
• MCU: STM32F405
• Gyro: ICM42688-P
• Firmware: GEPRC_TAKER_F405 AIO
• Flash memory: 16 MB
• ESC: 8-bit 20 A
• Motors: SPEEDX2 1104 7500KV
• Propeller: GEPRC × GEMFAN GP2219-3
• Power connection: XT30U-M
• VTX: DJI O4 Air Unit Pro
• Camera: DJI O4 Air Unit Pro camera module
• Antenna: DJI O4 Air Unit Pro antenna
• Receiver: ELRS 2.4 GHz
• Weight: approx. 126.8 g (ELRS version)
• Recommended battery (NOT INCLUDED): GEPRC Storm LiHV 3S 720 mAh
• Flight time: approx. 6 min 45 s (depending on flying style)

In the box

• 1 × GEPRC DarkStar22 Drone
• 1 × Propeller Guard
• 1 × Canopy
• 1 × Camera Cover
• 1 × Battery Pad
• 2 × Propeller Sets (Pairs)
• 1 × Battery Strap 10 × 120 mm
• 1 × L-shaped Hex Wrench 1.5 mm
• 1 × Battery Anti-slip Pad
• 1 × Tool for Damping Spheres
• 1 × Binding Pin
• 1 × USB Adapter Board
• 1 × 5-pin Terminal Cable
• Spare Screw Set (including damping spheres and screws)

Required separately to operate the drone

• FPV Goggles: Compatible DJI digital goggles (such as DJI Goggles 3 or DJI Goggles N3) to receive the DJI O4 Air Unit Pro HD video feed.
• Radio Transmitter: A remote controller running the ExpressLRS (2.4GHz) protocol (e.g., RadioMaster Pocket ELRS, TX15 ELRS, or TX16S MK3 ELRS).
• Batteries: 3S LiHV / LiPo batteries with a capacity of around 720mAh (such as GEPRC Storm LiHV 3S 720 mAh) equipped with an XT30 power connector.
• Battery Charger: A dedicated LiHV / LiPo balance charger featuring an XT30 port or an appropriate charge lead adaptor.
