ToolkitRC M8AC LiPo 1-8S 20A Charger AC/DC

SKU: TK14000
EAN: 6972969830698
Brand:

Unit: pc
In stock: Temporarily out of stock.

kuumaks al. 9,78 €

Price:

114,90 €

Description

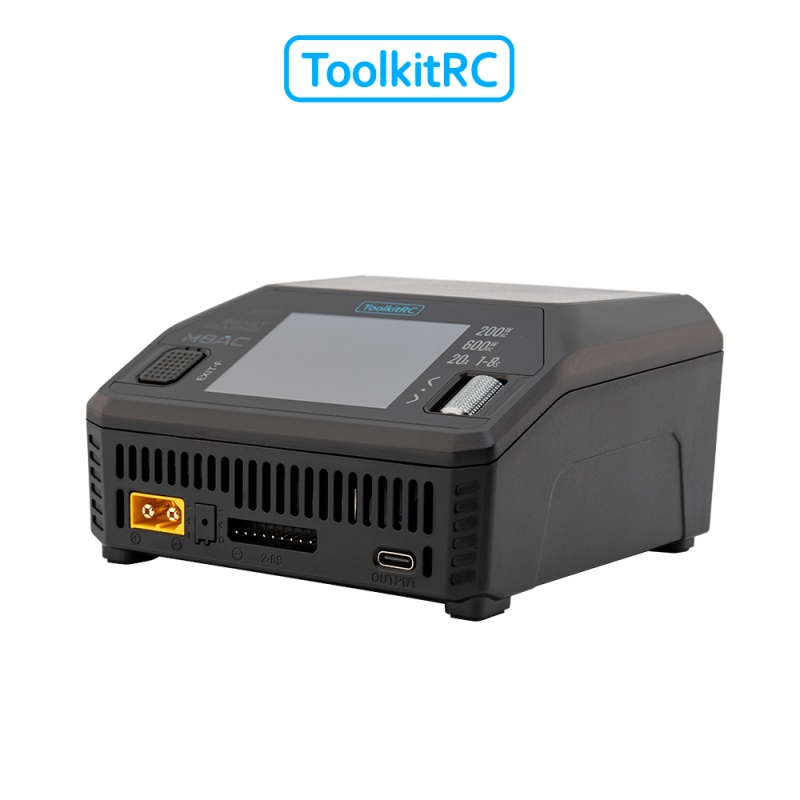

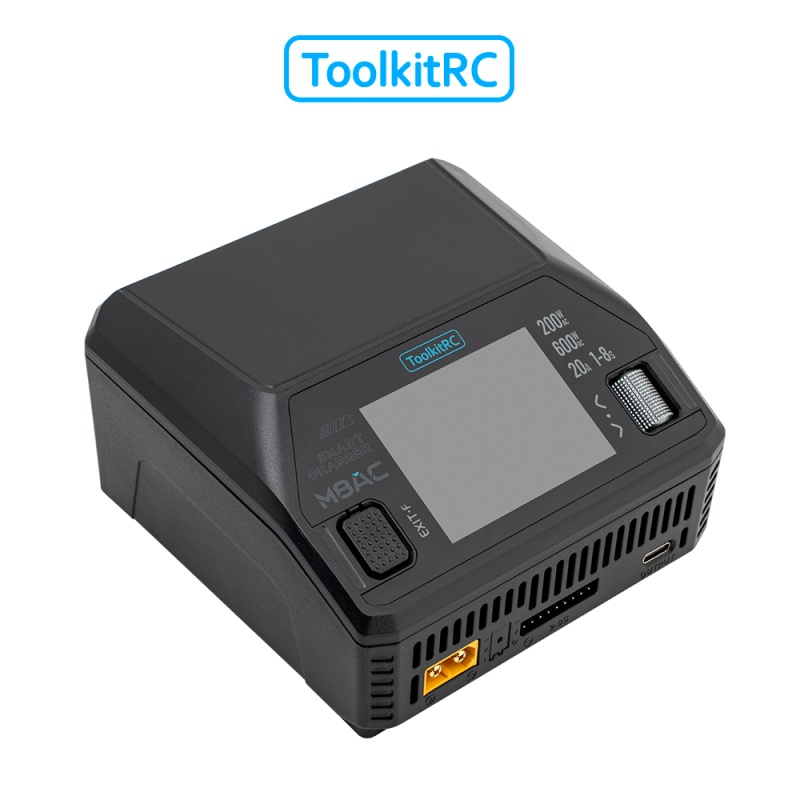

The ToolkitRC M8AC (TK14000) is a highly capable and ultra-versatile AC/DC smart balance charger designed for modern high-performance RC applications. Featuring an integrated internal power supply, it delivers up to 200W of charging power directly from a wall outlet (AC), or pins up to an impressive 600W / 20A when hooked to an external DC source, making it an absolute powerhouse both on the workbench and out in the field.

More than just a battery charger, the M8AC serves as a true multi-functional diagnostic station. It natively supports up to 8S Lithium packs and packs advanced features like an adjustable constant current/voltage (DC/CV) laboratory bench power supply, alongside built-in PWM, PPM, and SBUS signal testers for checking servos and radio gear. The sleek front panel also hosts a high-output 65W USB-C Power Delivery port capable of fast-charging laptops and mobile devices.

Technical Specifications:

Input Voltage: AC 100–240V / DC 7–35V
Charging Power: AC Max 200W / DC Max 600W
Charge Current: 0.1A - 20A
Discharge Power: Internal 20W (0.1-3A) / Recyclable external up to 600W
Battery Chemistry Compatibility: LiPo/LiHV/LiFe/Li-Ion/LTO (1-8S), NiMH/NiCd (1-20S), Pb (1-12S)
Balance Current: 1000mA @ 4.2V with accuracy < 0.005V
USB Ports: USB-C 65W (PD/QC/PPS) + USB-A
Display: 2.4" IPS Color LCD (320 × 240 pixels)

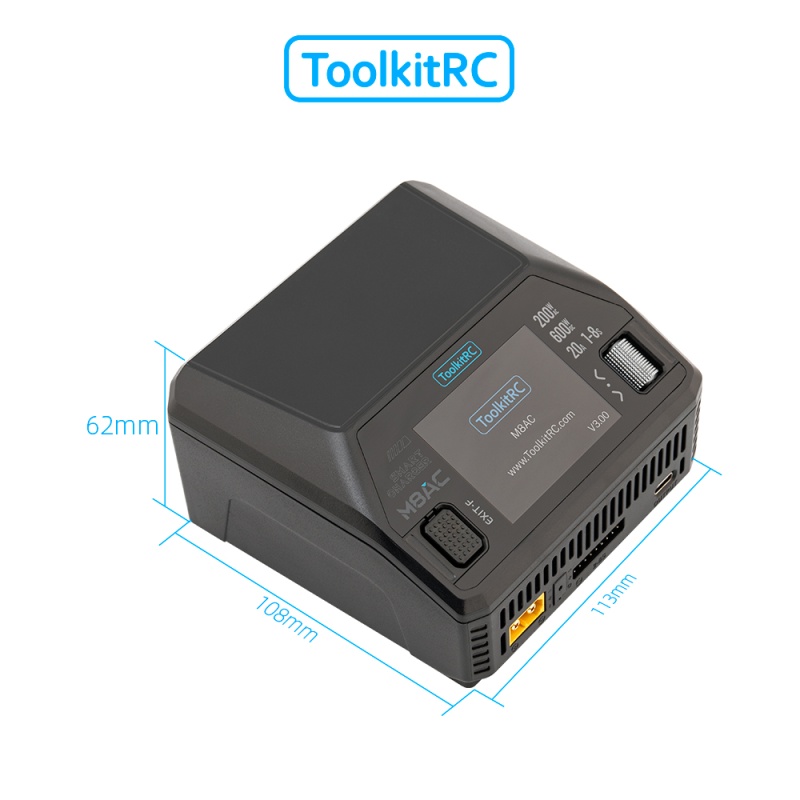

Dimensions & Weight: 108 × 113 × 62 mm / 500 g
