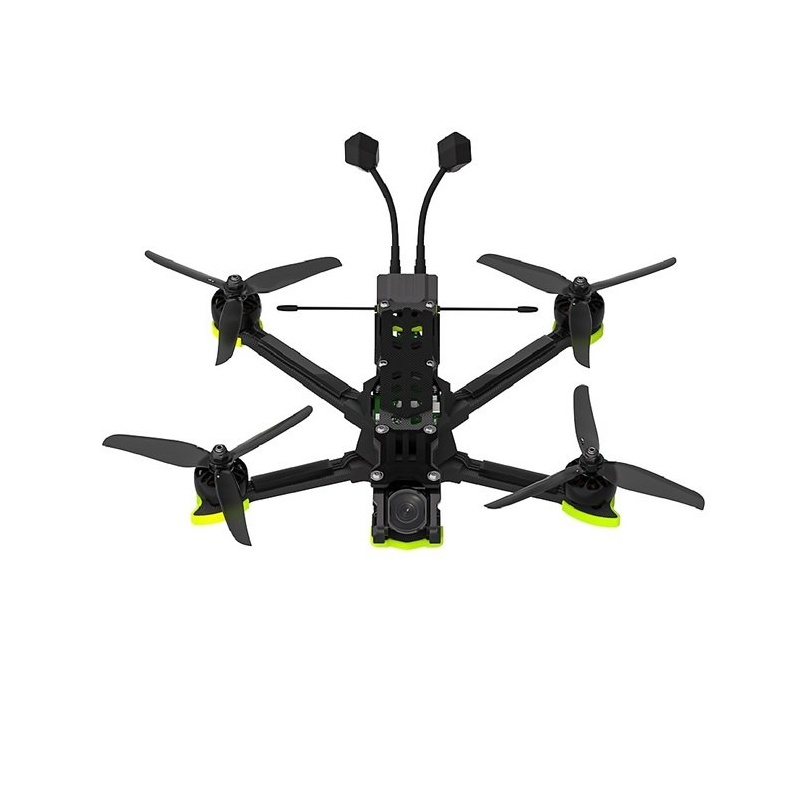

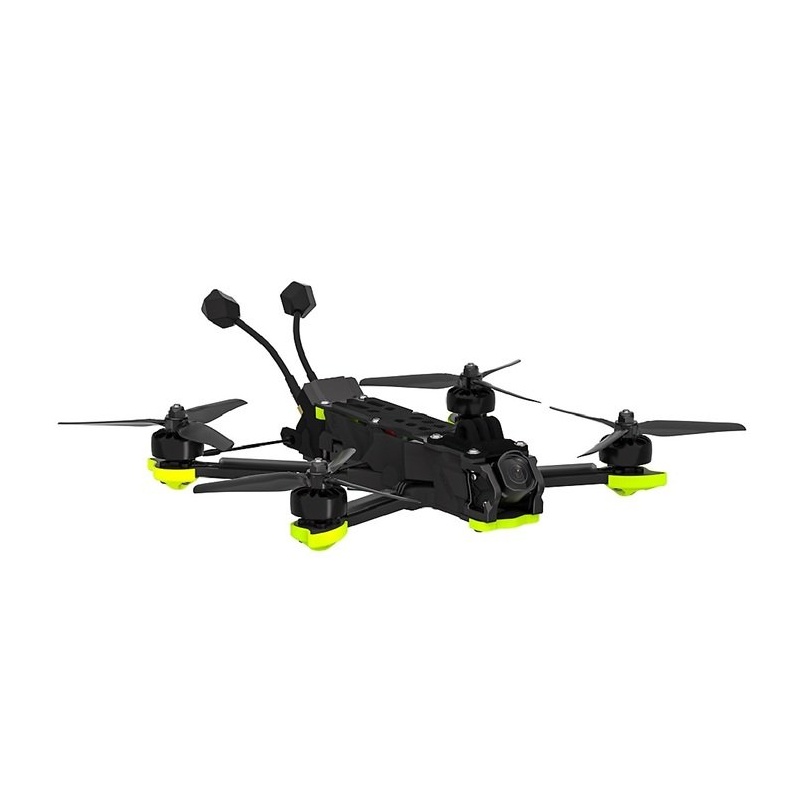

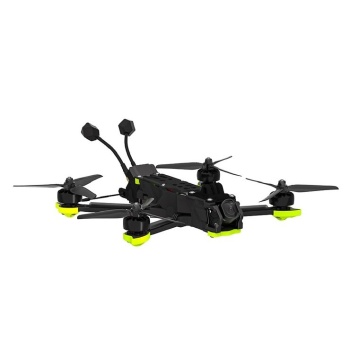

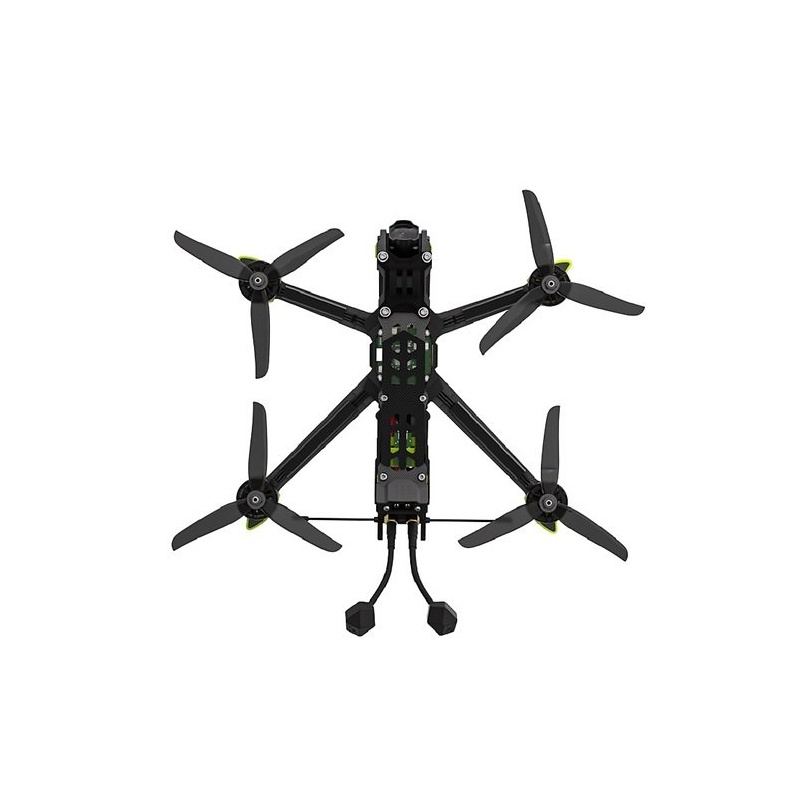

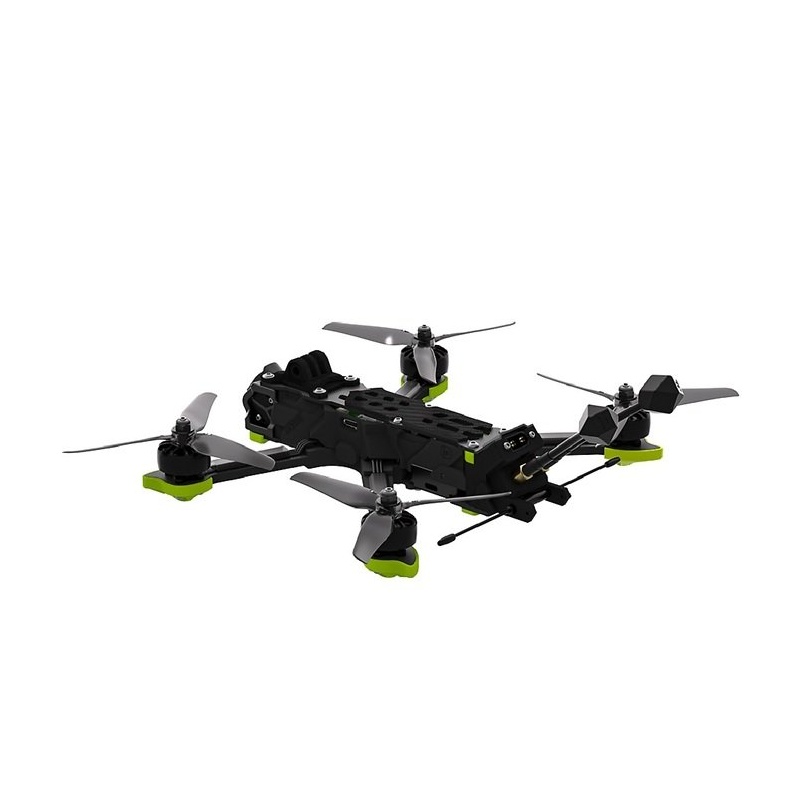

iFlight Nazgul DC5 ECO V1.1 DJI O4 Pro 6S HD FPV Drone 2.4GHz ELRS GPS

Product description

The Nazgul DC5 ECO is a 5-inch freestyle drone that redefines performance and value. Equipped with the DJI O4 Digital HD System, it delivers crisp, propeller-free 4K video, even in low light. The robust carbon fiber frame and aluminum camera mount ensure durability without sacrificing lightness. The pre-installed GoPro mount further enhances the drone's versatility.

Thanks to the BLITZ ATF435 flight controller and the powerful BLITZ E55S ESC, the Nazgul DC5 ECO offers a reliable and dynamic flying experience. With a maximum speed of 190 km/h and an optimized deadcat design, this drone is perfect for FPV pilots looking for performance and quality.

Highlights of the Nazgul DC5 ECO

• 4K Ultra HD video: DJI O4 system with 1/1.3-inch sensor for stunning shots and stable 155° ultra-wide-angle videos.
• Robust and lightweight: High-quality carbon frame with aluminum components for a stable construction.
• Anti-spark technology: Protects the electronics from voltage spikes and extends the lifespan of the XT60 connectors.
• Optimized DeadCat design: No distracting propellers in the camera image – ideal for professional aerial photography.
• Easy maintenance: Built-in signal transmitters and easily accessible components ensure convenient handling.

Product specifications

• Product name : Nazgul DC5 ECO 6S O4 HD
• Geometry : DeadCat (DC)
• Frame : 240 mm wheelbase
• Weight : 450g ±5g (without battery)
• Takeoff weight : approx. 675g ±5g (with 6S 1480mAh battery)
• Dimensions (L×W×H) : 193 × 144 × 34 mm
• Maximum speed : 190 km/h
• Maximum hovering time : approx. 7.5 minutes (6S 1480mAh, without payload)
• Maximum flight altitude : 7000 m
• Wind resistance : up to level 7
• Temperature range : -10 °C to 40 °C

Flight electronics

• Flight controller : BLITZ ATF435
• ESC : BLITZ E55S 4-in-1 ESC
• Motors : XING-E Pro 2207 1800KV
• Propeller : Nazgul F5 or HQProp R35V2 5-inch 3-blade
• GPS:  YES (BLITZ M10 GPS V2 (Mini)

Video transmission – DJI O4 Air Unit Pro

• Sensor : 1/1.3 inch
• Video resolution : 4K at 30fps, 1080p at 100fps
• Field of view (FOV) : 155°
• Stabilization : RockSteady 3.0+
• Live view quality : 1080p@100fps
• Maximum video transmission range : up to 15 km (FCC)
• Operating frequencies : 5.170–5.850 GHz
• Built-in memory : 4GB
