Tamiya 1:10 RC Toyota Celica GT-Four (TT-02) kit

True Rally Legend on the TT-02

We are delighted to announce the release of the Toyota Celica GT-Four (ST165) as a 1/10 R/C model assembly kit based on the TT-02 chassis. The fourth generation Toyota Celica lineup was joined by the high spec GT-Four (ST165) model in October 1986. With the same streamlined hatchback coupe form, this car was powered by a transverse, 185hp 2-liter DOHC turbo engine with water-to-air intercooler, and employed full-time 4WD equipped with a center diff featuring mechanical lock function.

In 1990 global rally races, this car achieved five victories and enjoyed many racing successes around the world.

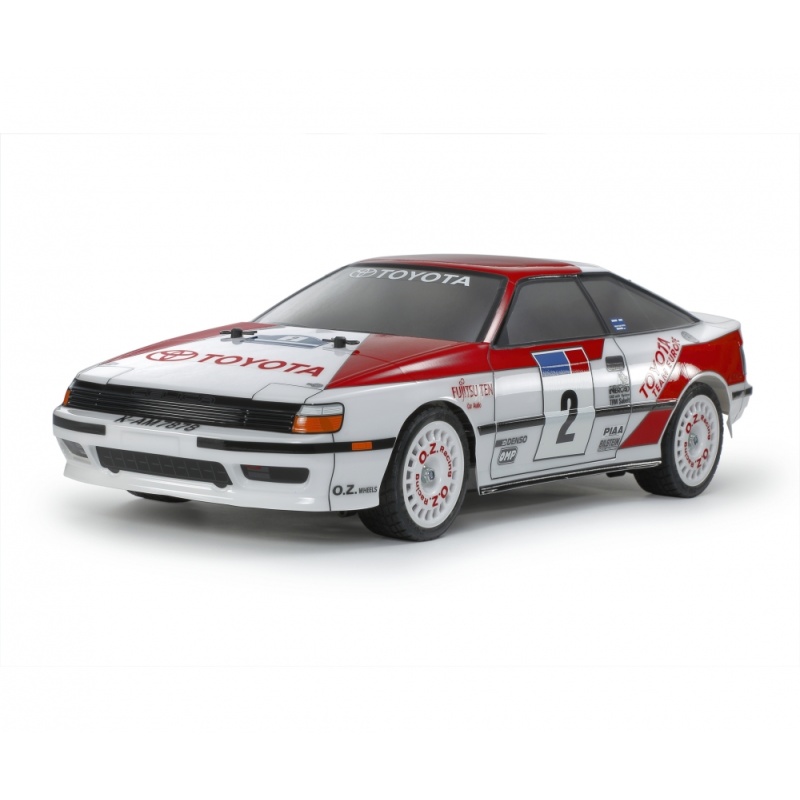

This R/C model assembly kit recreates the Toyota Celica GT-Four (ST165) with a stunning and highly detailed polycarbonate body. The kit is based on the beginner friendly and highly customizable TT-02 chassis, which is highly capable on asphalt and flat dirt for fun rally action!

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gold color fin-spoke wheels are paired with rally block tires.

Specifications

• Length: 450mm
• Width: 185mm
• Height: 130mm
• Wheelbase: 257mm
• Tire Width/Diameter: 27/69mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 9.58:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 Motor

Required Items:

• 2-Channel radio with receiver
• Steering servo
• 7.2volt battery pack
• Compatible charger
• Tools
• Paint for the body
