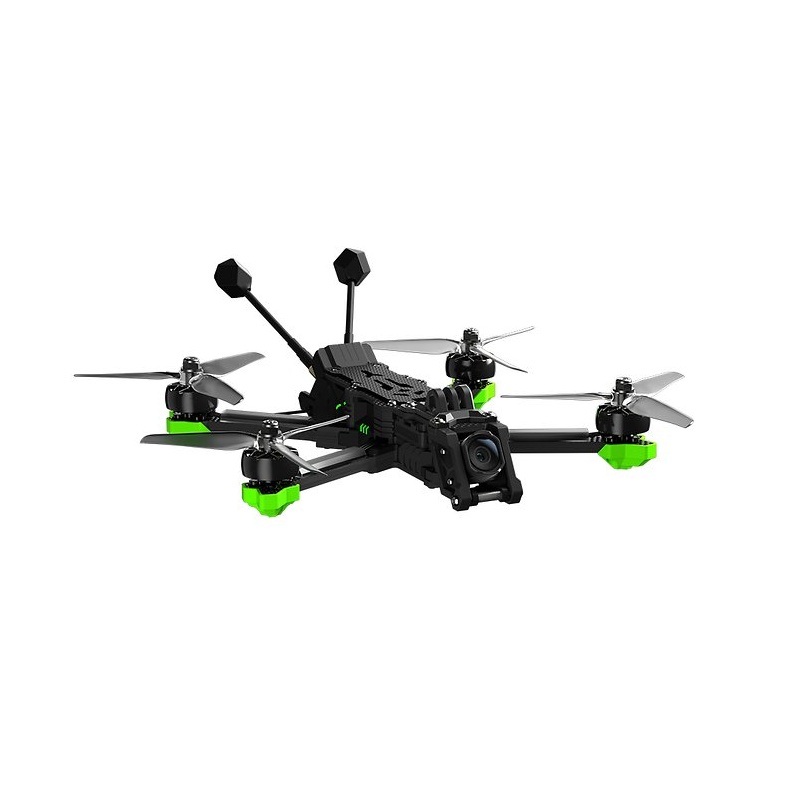

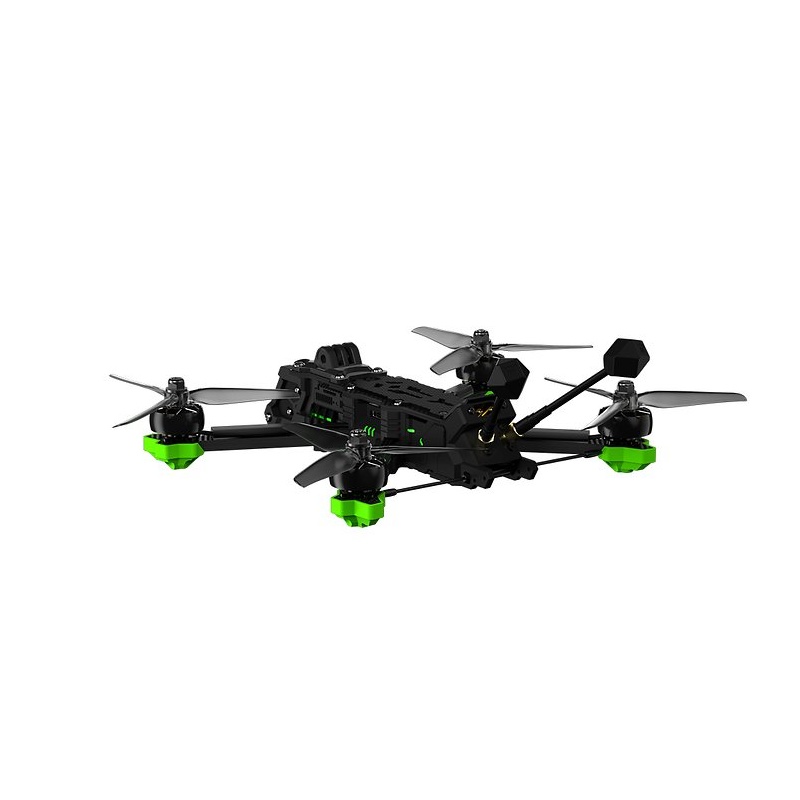

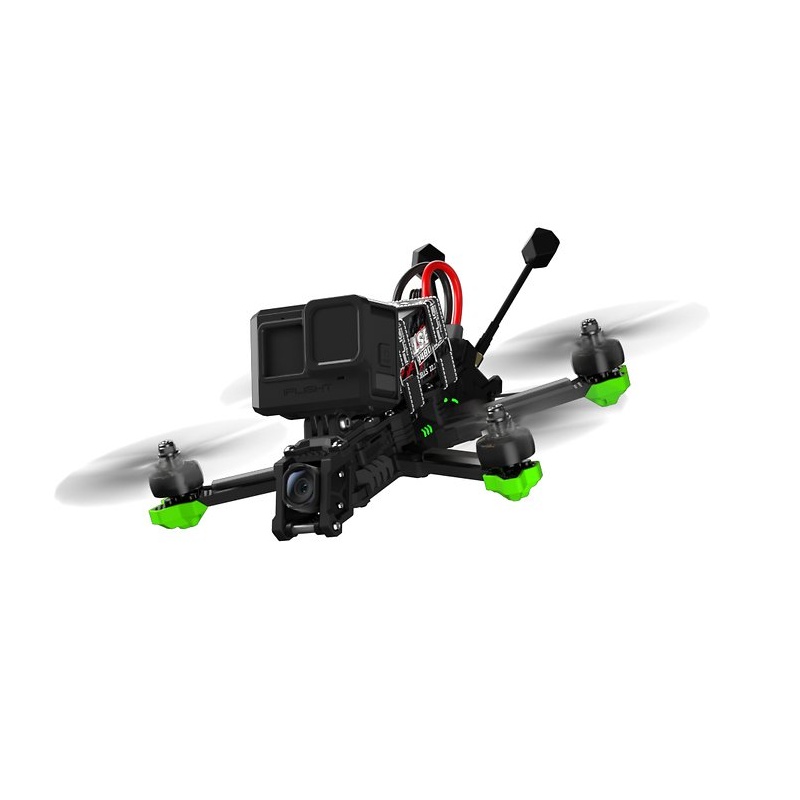

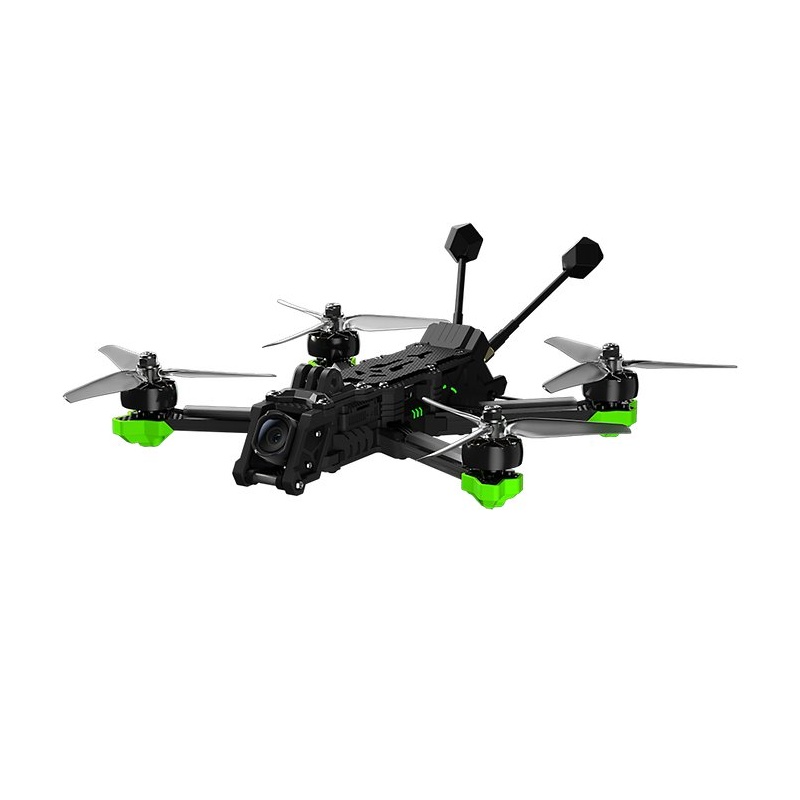

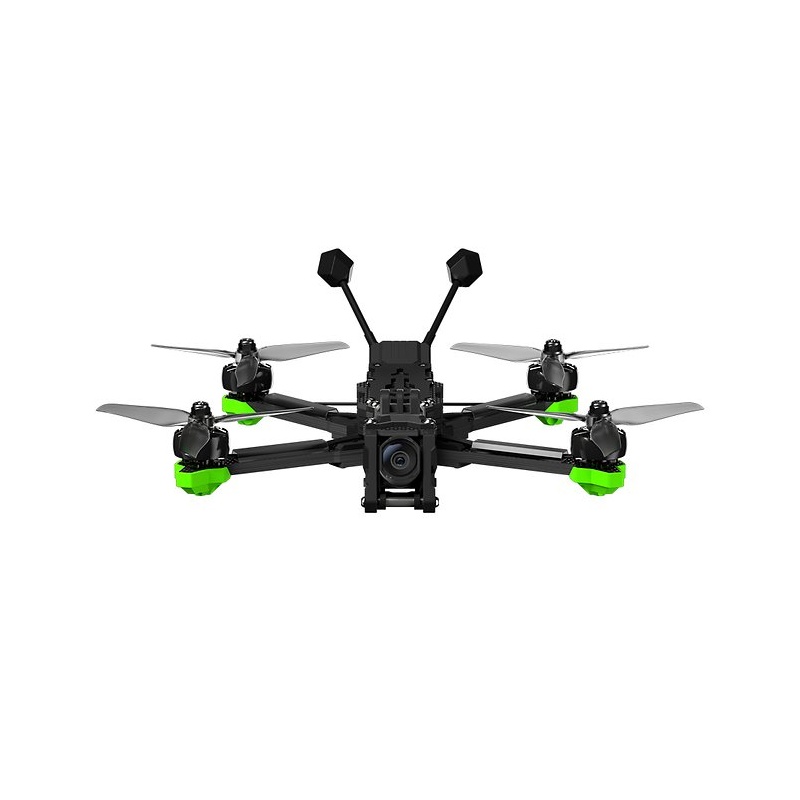

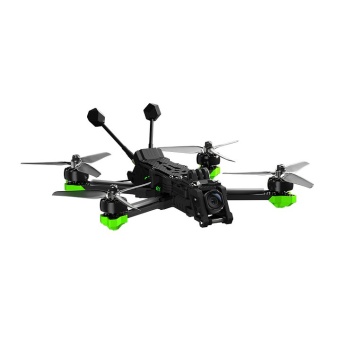

iFlight Evoque F5 V3 DJI O4 Pro 6S HD FPV Drone GPS 2.4GHz ELRS
EAN: 4262453769736
Brand:
Unit: pc
In stock: Temporarily out of stock.
Video
Product description
The iFlight Nazgul Evoque F5 V3 sets new standards in terms of versatility, image quality and flight performance. With its innovative switchable DC/X frame design, you can flexibly switch between cinematic shots in DeadCat setup (no propellers in the picture) and aggressive freestyle maneuvers in True-X setup - a drone for every flying style.
Powered by XING2 2207 1750KV motors and equipped with the Borg Mini F7 flight controller and Borg Mini 60A ESC, the Evoque F5 V3 delivers impressive performance, high stability and precise control. The integrated anti-spark filter system, dual BEC power supply and high-quality capacitors ensure maximum reliability.
At its heart is the DJI O4 Air Unit Pro with 1/1.3" image sensor and 155° ultra-wide angle, which enables breathtaking 4K recordings with perfect low-light performance. Thanks to RockSteady 3.0 image stabilization, razor-sharp videos are possible even at high speeds.
Weighing just 492 g (736 g take-off weight incl. battery), the drone can reach speeds of up to 190 km/h and remains reliably controllable at all times thanks to the GPS + multi-satellite system. The high-quality injection-molded construction, the improved cooling channels and the clean cable management make the Evoque F5 V3 not only robust, but also easy to maintain.
Whether for professional cinematic shots or uncompromising FPV freestyle - the iFlight Evoque F5 V3 DJI O4 Pro is a true flagship among 5-inch FPV drones.
Technical specifications
- Model: iFlight Nazgul Evoque F5 V3 O4 HD BNF
- Flight Controller (FC): Blitz Mini F7
- ESC: Blitz Mini 60A
- Video System (VTX/Camera): DJI O4 Air Unit Pro
- Frame geometry: DeadCat (standard) / True-X (switchable)
- Wheelbase: 236 mm (DC) / 239 mm (True-X)
- Dimensions (L×W×H): 230 × 207 × 54 mm (DC) / 207 × 199 × 54 mm (X)
- Weight: 492 g ± 5 g
- Take-off weight: approx. 736 g (incl. 1480mAh 6S battery)
- Motors: XING2 2207 1750KV
- Propellers: Nazgul F5
- Camera angle: 10° - 45° adjustable
- Maximum speed: 190 km/h
- Maximum flight altitude: 7000 m
- Maximum flight time (hovering): approx. 12-13 min (6S 1480mAh battery, without payload)
- Operating temperature: -10° to +40°C
- GPS / GNSS support: GPS + SBAS + Galileo + QZSS + Glonass
In the box
- 1 × iFlight Nazgul Evoque F5 V3 6S O4 HD BNF drone
- 2 × Antennas
- 1 × Battery Pad
- 2 × Propeller sets (pairs)
- 2 × Battery Straps
Required separately to operate the drone
- FPV Goggles: Compatible DJI digital goggles (such as DJI Goggles 3 or DJI Goggles N3) to receive the DJI O4 Air Unit Pro HD video feed.
- Radio Transmitter: A remote controller running the ExpressLRS (2.4GHz) protocol (e.g., RadioMaster Pocket ELRS, Zorro ELRS, or Boxer ELRS).
- Batteries: 6S LiPo batteries with a capacity of 1300mAh to 1500mAh (e.g., Tattu R-Line 6S or CNHL Black Series 6S) equipped with an XT60 connector.
- Battery Charger: A dedicated LiPo balance charger (such as ISDT or Hota) along with the appropriate charging cables.
