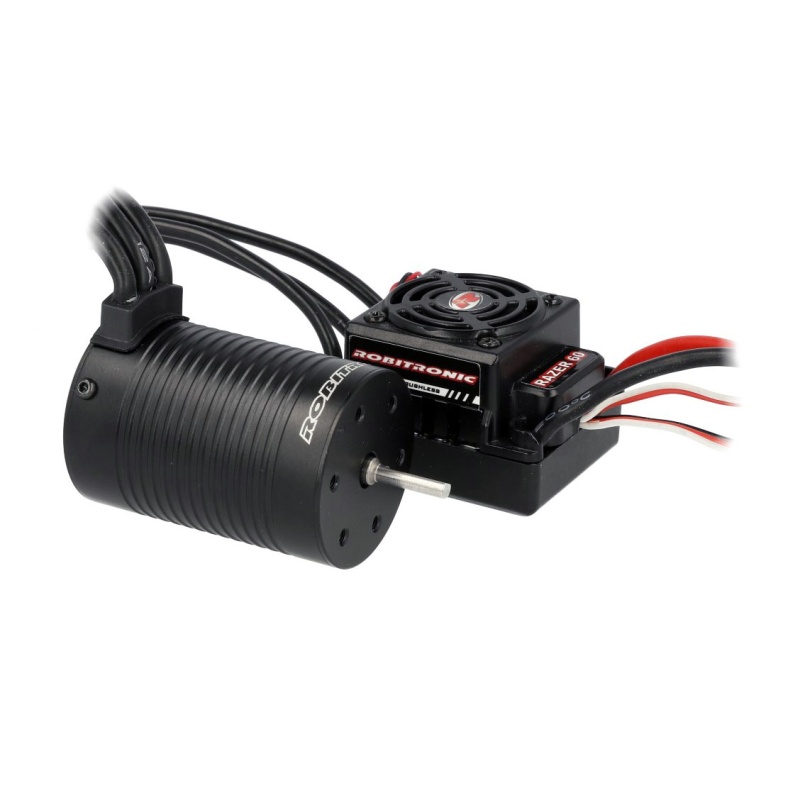

Robitronic Razer ten Brushless Combo 60A 3652 4000kV

SKU: R01252
EAN: 4046032087356
Unit: Set
In stock: 1
84,90 €
Qty.: - +
   - or -

Whether 1/10 on-road or 1/10 off-road, the Razerten 60A is always the first choice when reliability, efficiency and durability are paramount. Diverse setting and programming options leave nothing to be desired.
All cables are already wired ready for connection to the controller, no soldering required.
Battery connection: T-plug,
Motor connection: 4mm sockets


    Fully waterproof and dustproof
    ON / OFF switch with setup button
    S-BEC with 6V and 3A peak current
    Plug and play, battery and motor connector already soldered
    Multiple protection devices: undervoltage shutdown, thermal protection and protection against signal loss.
    Easy programming using the setup button
    Separate programming port, easy connection of the LED program card (optional)

Technical specifications:
Constant / peak current: 60A / 390A
Type: Sensorless
Motor Limit:

2s Onroad: 3650 engine,> = 5.5T
2s offroad: 3650 engine,> = 8.5T
3s Onroad: 3650 engine,> = 9T
3s offroad: 3650 engine,> = 13T
Internal resistance: 0.0012 ohm
LiPo / NiMH battery pack: 2-3s LiPo / 6-9 cells NiMH
S-BEC: 6V / 3A
Programming port: yes
Dimensions LxWxH: 48.5x38x32mm
Weight: 90g
Application: 1/10 on and off road

Razerten motor 3652 with 4000KV:

The Razerten is a sensorless high-performance motor with enormous power. The dismantled CNC milled aluminum housing, the finely balanced rotor with precision ball bearings are top-class equipment details.


    4-pole rotor design for high torque and quick response
    CNC machined, high-strength aluminum housing for optimal heat dissipation
    Motor winding made of pure, double insulated copper wire
    Precision ball bearings for smooth running and durability
    Highly flexible silicone connection cable with soldered 4mm plugs
    High-strength and polished 3.17mm rotor shaft made of steel

Technical specifications:
Article no .: R01232
Idle speed: 4000KV
LiPo cells: 2s-3s
Pole: 4
Shaft diameter / length: 3.17mm / 15mm
Dimensions D / L: 35mm / 52mm
Weight (including cable) 207g
Application: 1/10 onroad, buggy, light SCT / truck / MT

Scope of delivery:

1x controller fully wired with battery connector and motor connection
1x motor ready for connection with 4mm plug
1x instructions
