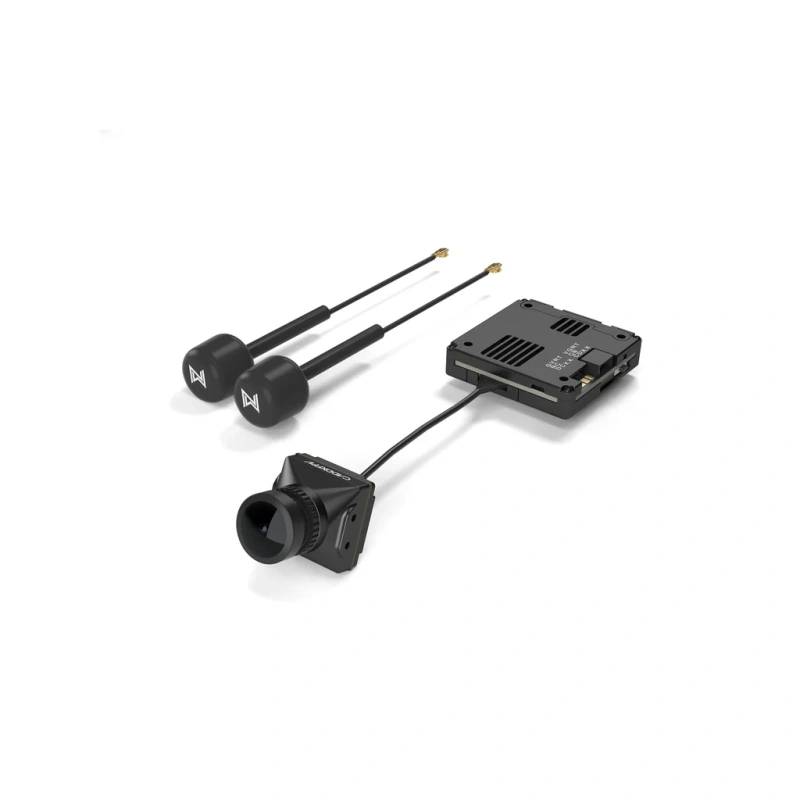

Walksnail Avatar HD Digital Pro Kit Dual Antenna Version
SKU: WAS-WN08-6S14B
EAN: 4262556460387
Brand:
Unit: pc
In stock: Temporarily out of stock.
EAN: 4262556460387
Brand:
Unit: pc
In stock: Temporarily out of stock.
Price:
189,00 €
Product description
The Walksnail Avatar HD Digital Pro Kit (Dual Antenna Version) brings razor-sharp HD FPV images, extremely low latency and impressive stability to any FPV setup. With its 1/1.8" Sony Starvis sensor, 32 GB built-in memory and support for 1080P/120fps and 720P/120fps, this system redefines digital FPV quality.
Thanks to the dual-antenna architecture, you can enjoy an even more robust signal, greater range and stable transmission even in demanding environments. The optimized VTX board, improved thermal management and wide input voltage range of 6V-25.2V (2-6S) make the Avatar Pro a durable, reliable centerpiece for your builds.
With gyroflow support, ultra-low 22ms latency, up to 4km range and brilliant night vision, this kit is perfect for freestyle, cinematic long range or racing. The new mounting options (20×20 mm & 25×25 mm) also ensure maximum compatibility - whether lightweight cinewhoops or powerful 5-inch drones.
Technical data - Walksnail Avatar HD Pro camera
- Model: Avatar HD Pro
- Sensor: 1/1.8" Sony Starvis
- Resolution: 1080P/60fps, 720P/120fps, 720P/60fps, 1080P/120fps compatible
- Field of view (FOV): 160°
- Aperture: F1.6
- Lens: 8 MP
- Min. illumination: 0.00001 Lux
- Shutter: Rolling shutter
- Format: 16:9 / 4:3
- Weight: 9.5 g
- Dimensions: 19 × 19 × 24 mm
- Coaxial cable: 140 mm
Technical data - Avatar V2 Pro VTX (dual antenna)
- Model: Avatar V2 Pro module
- Frequency: 5.725 - 5.850 GHz
- Transmit power (EIRP): FCC < 30 dBm, CE < 14 dBm, SRRC < 20 dBm, MIC < 25 dBm
- Memory: 32 GB integrated
- Recording: 1080p / 720p HD
- Latency: 22 ms on average
- Channels: 8
- Input voltage: 6-25.2 V (2-6S)
- Dimensions: 33.5 × 33.5 × 10.5 mm
- Weight: 15.4 g
- Mounting: 20×20 mm & 25.5×25.5 mm
- Interfaces: JST1.0×4 (power), JST0.8×6 (USB)
- Supported FC systems: Betaflight, INAV, FETTEC, ArduPilot, KISS
- Canvas mode OSD: Yes
- Temperature range: -20 to 40 °C
Technical data - Dual LHCP antennas (IPEX)
- Model: Avatar V2 antenna
- Polarization: LHCP
- Frequency range: 5600-6000 MHz
- Gain: 1.9 dBi
- VSWR: ≤ 1.5
- Impedance: 50 Ohm
- Connection: IPEX-1
- Size: Ø15 × 45 mm (without cable)
- Weight: 2 g
Scope of delivery
- 1× Walksnail Avatar HD Pro Camera
- 1× Avatar V2 Pro Dual-Antenna VTX
- 2× LHCP Antennas (IPEX)
- 1× USB Extension cable
- 1× 4-Pin Silicone cable
- Screw set:
- 8× M2×4 mm screws
- 4× M2×5 mm screws
- 4× M2×6 mm screws
- 4× M2×14 mm screws
- 4× M2×5 × 0.5 mm Gaskets
