Walksnail Avatar HD Digital FPV Camera Pro Kit

Product description

Walksnail Avatar HD Digital FPV Camera Pro Kit

The Walksnail Avatar HD Pro Kit features a VTX with enhanced TVS protection and support for up to 6S. This VTX provides unmatched stability and resistance to GPS interference with a wide input voltage range from 6V to 25.2V. This kit also features 1080P compatibility, high-frame starlight, a 4KM range, and 32GB of built-in memory. Enjoy unparalleled performance and take your FPV adventures to the next level with this cutting-edge technology!

Features

• 1080P 120fps compatibility
• Sony Starvis Ⅱ technology
• Built-in 32GB memory
• High image brightness
• Lightweight design
• 22ms low latency
• Range mode
• 4km range
• 6V-25.2V
• FOV 160°

Specifications

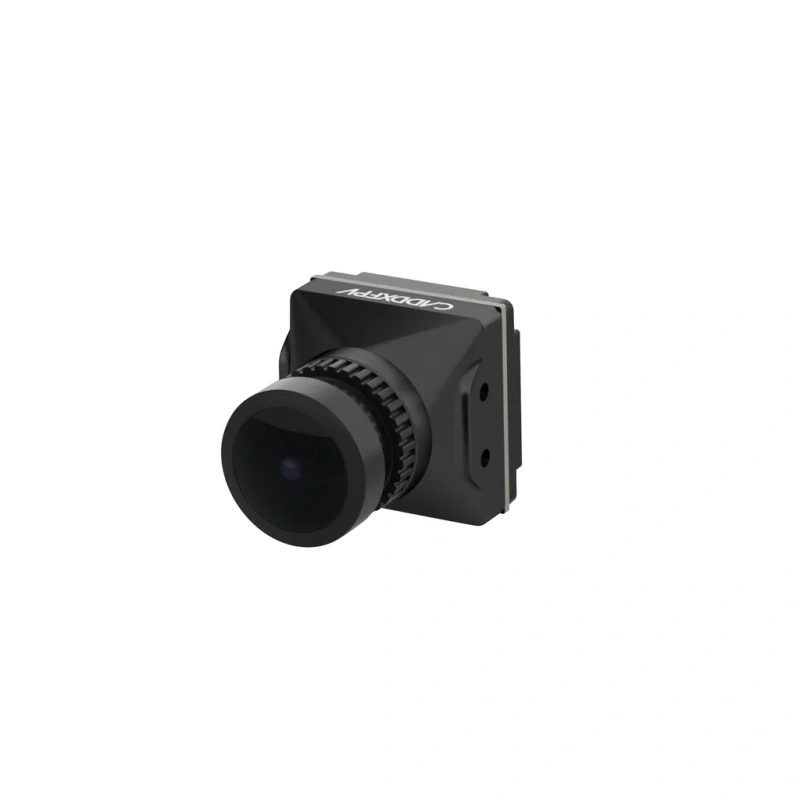

HD PRO CAMERA

• Auflösung: 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
• Image sensor: 1/1.8-inch Sony Starvis Ⅱ sensor
• Model: Avatar HD Pro camera
• Illumination: 0.00001Lux
• Dimensions: 19*19*24mm
• Shutter: Rolling shutter
• Coaxial cable: 140mm
• Aspect ratio: 16/9; 4/3
• Aperture: F1.6
• Weight: 9.5g
• Lens: 8Mp
• FOV: 160°

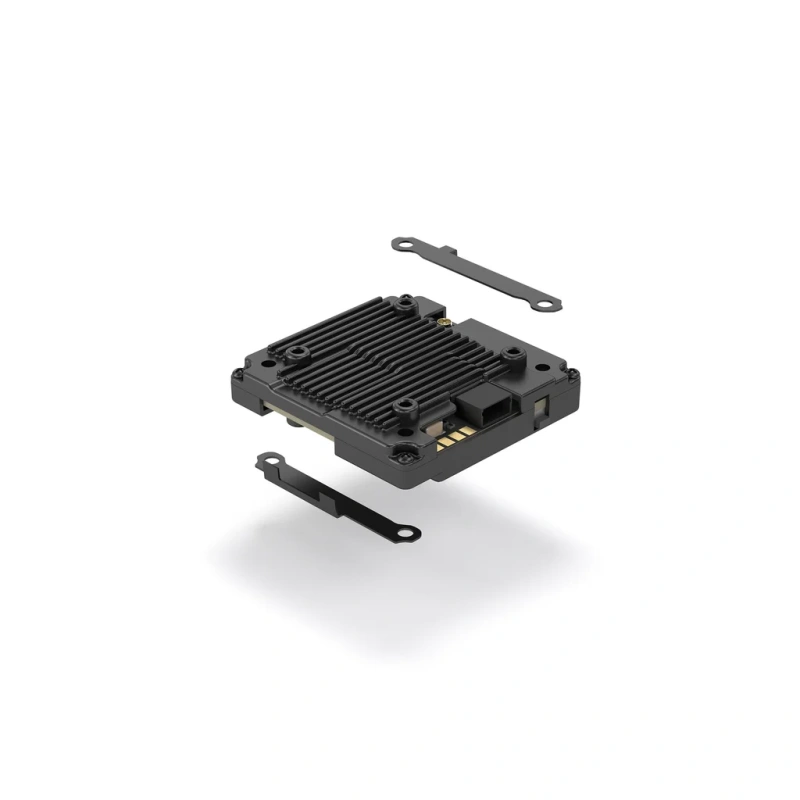

AVATAR V2 VTX

• Transmit power (EIRP: FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
• Supported FC systems: Betaflight; Inav; Fettec; ArduPilot; Kiss
• 1/O interface: JST1.0*4(power input)JST0.8*6(USB)
• Communication frequency: 5.725-5.850GHz
• Mounting holes: 25.5*25.5mm; 20*20mm
• Operating temperature: -20-40℃
• Dimensions: 33.5*33.5*10.5mm
• Latency: 22ms average delay
• Wide Power Input: 6V-25.2V
• Model: Avatar V2 Module
• Recording: 1080p/720p
• OSD: Canvas mode
• Antenna: 1(IPEX)
• Memory: 32G
• Weight: 17.6g
• Channels: 8

AVATAR V2 ANTENNA

• Frequenzbereich: 5600MHz-6000MHz
• Size: R15 X 45mm(without cable)
• Input impedance: 50Ω
• Polarization: LHCP
• Interface: IPEX-1
• Gain: 1.9dBi
• VSWR: ≤1.5
• Weight: 2g

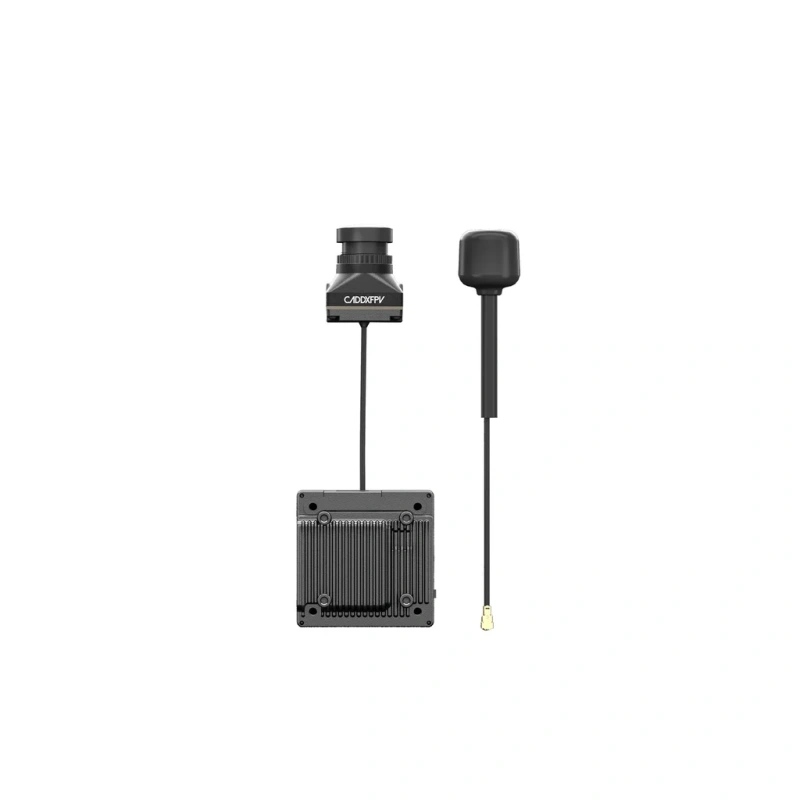

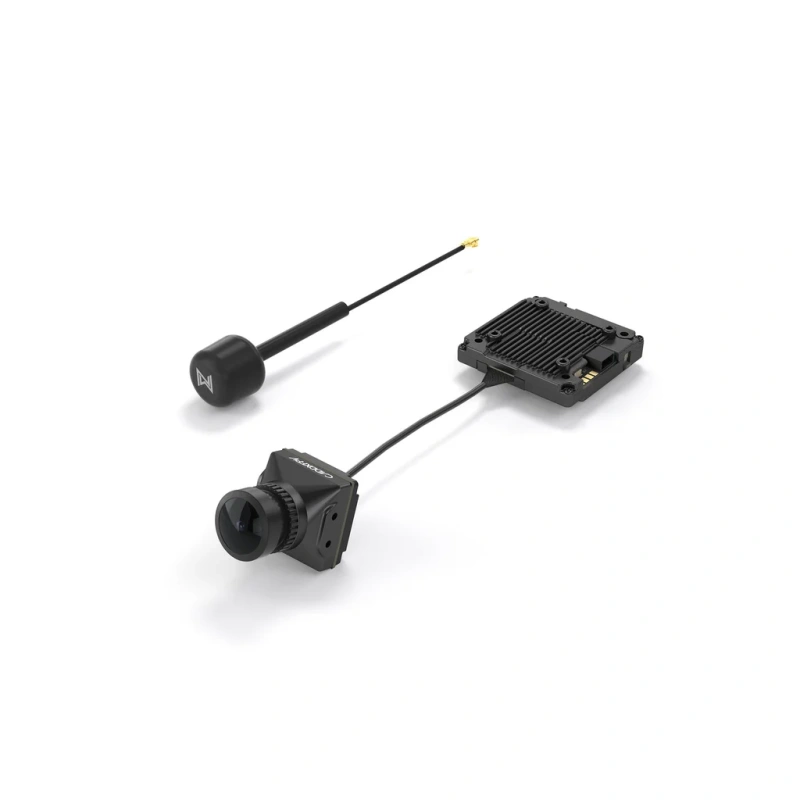

Content

• 1x Walksnail Avatar V2 VTX - 32GB w/ Gyro
• 1x Walksnail Avatar HD Pro Camera
• 1x Walksnail Avatar V2 Antenna
• 1x USB transmission extension cable
• 4x M2*5*0,5mm gasket
• 1x 4-pin silicone cable
• 4x M2*14mm screws
• 8x M2*4mm screws
• 4x M2*5mm screws
• 4x M2*6mm screws
