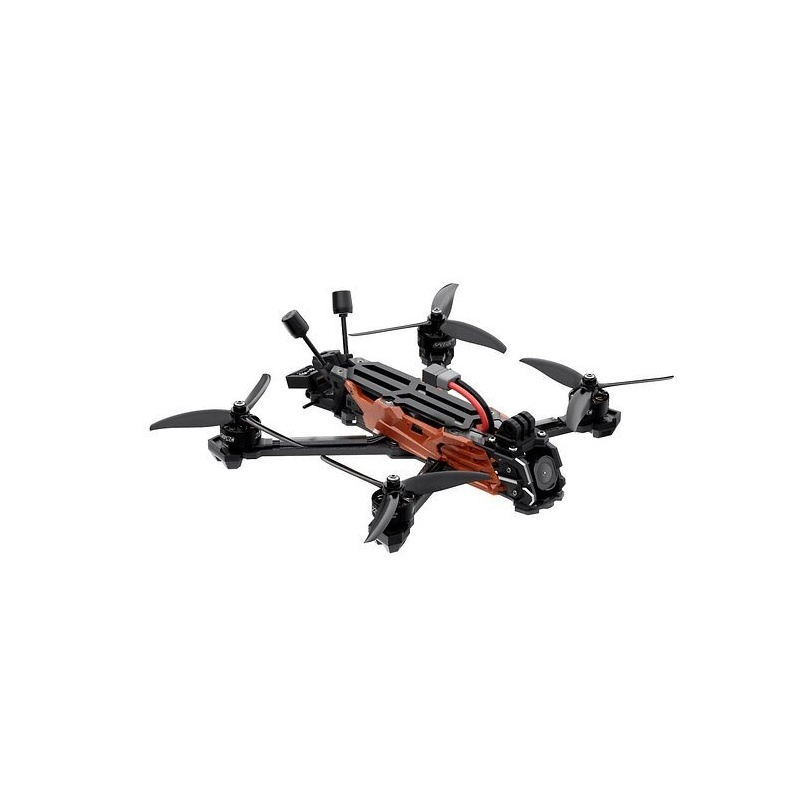

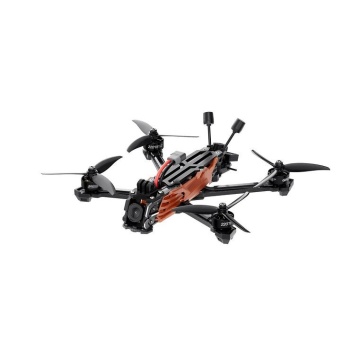

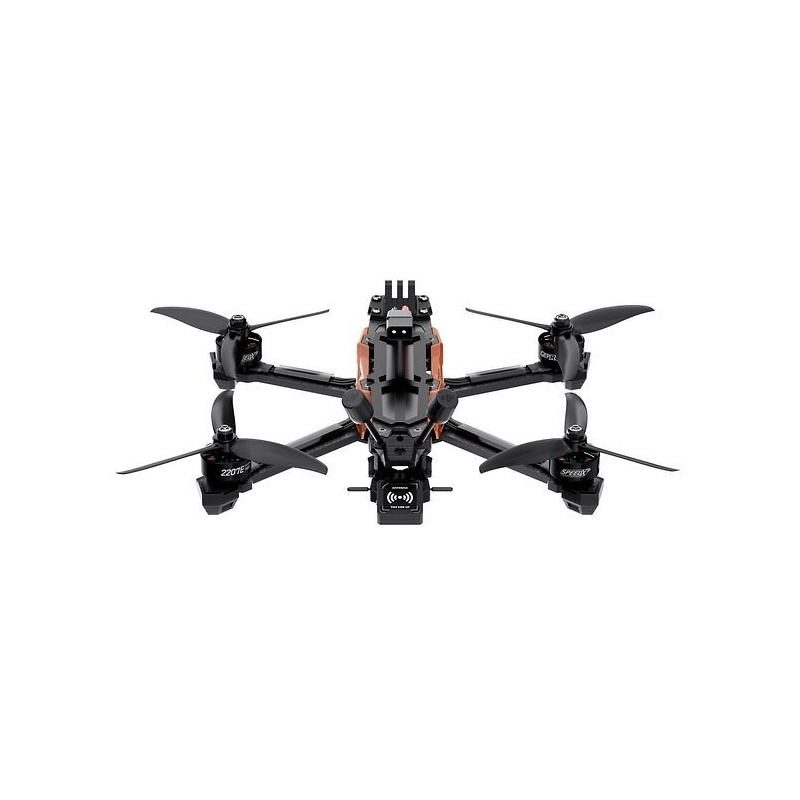

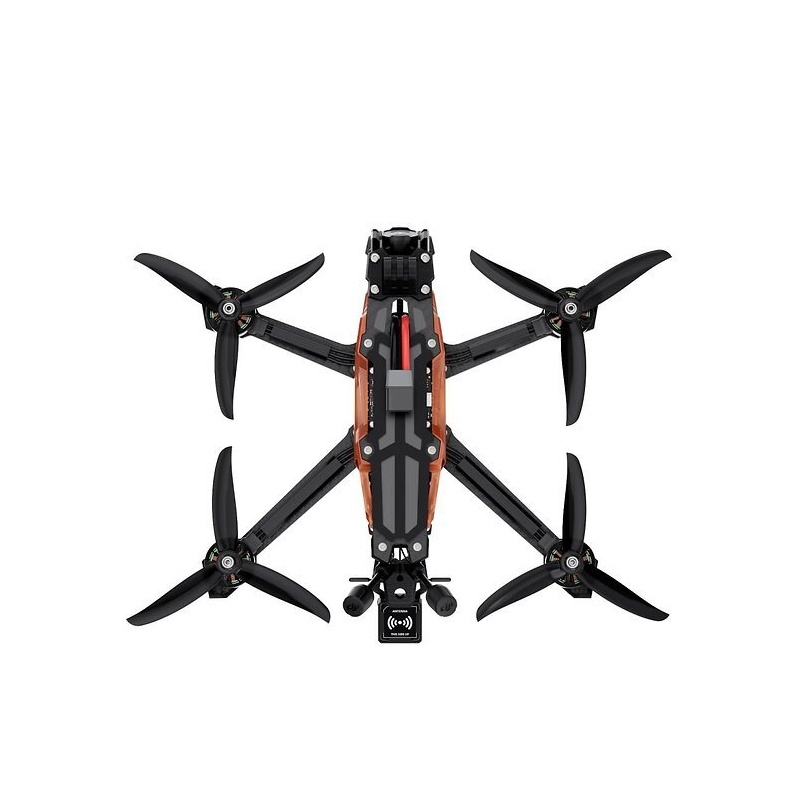

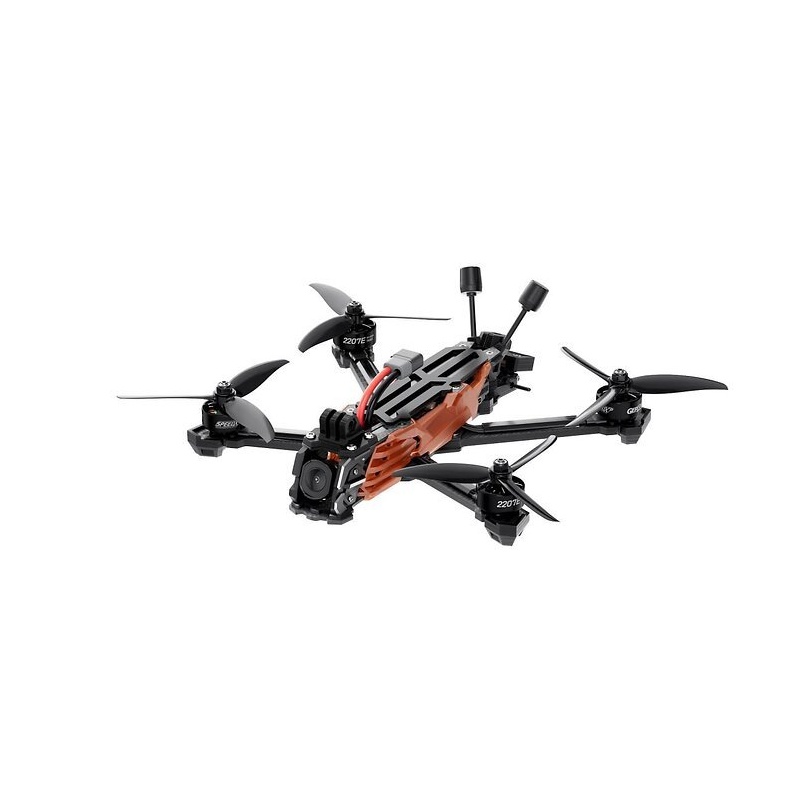

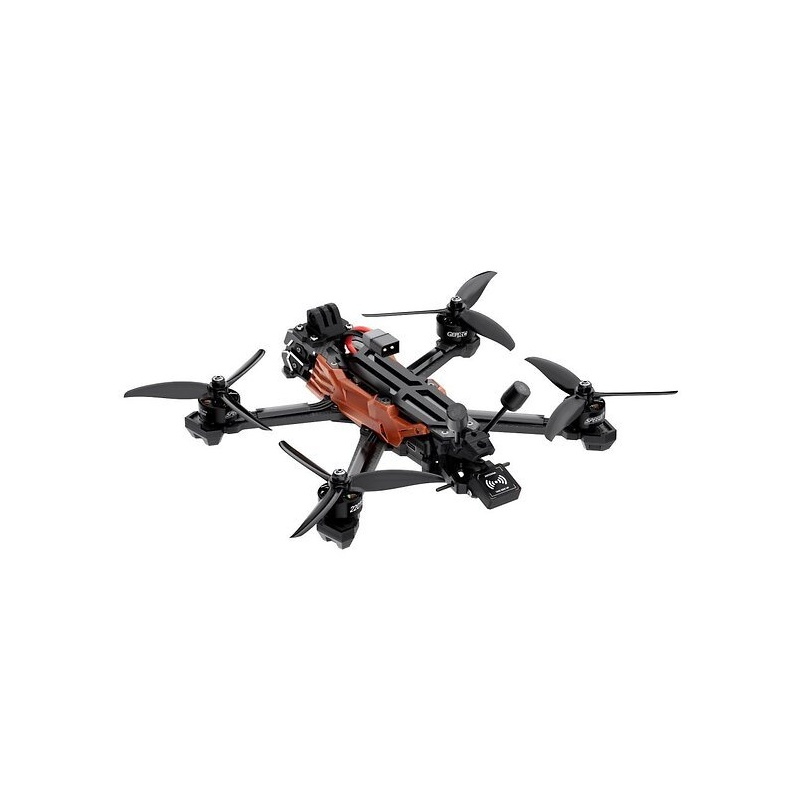

GEPRC Vapor-D5 HD DJI O4 Pro FPV Drone ELRS 2.4G

Key features

• DJI O4 Air Unit Pro video system: High-resolution CMOS sensor for clear images and sensitivity.
• CNC aluminum housing: Durable protection reducing camera vibrations.
• GEPRC SPEEDX2 E-Series motors: Tuned for powerful and smooth operation.
• Innovative front design: "Front lip" for added crash protection.
• Rugged 5 mm arms: Wider carbon fiber for stability.
• Integrated GPS: Built-in GEP-M10 for path tracking.

Technical specifications

• Model: Vapor-D5 O4 Pro
• Frame: GEP-Vapor-D5 O4 Pro Frame
• Wheelbase: 230 mm
• Plate thicknesses (Top/Middle/Bottom): 2.0 mm / 2.0 mm / 2.5 mm
• Arm thickness: 5.0 mm
• Flight Controller (FC): GEP-F722-HD v2
• Processor (MCU): STM32F722
• Gyroscope: ICM42688-P (SPI)
• Barometer: Yes
• OSD: Betaflight OSD (with AT7456E chip)
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• Video transmitter and camera: DJI O4 Air Unit Pro (with original antenna)
• Power connector: XT60
• GPS module: GEP-M10 GPS
• Motors: GEPRC SPEEDX2 2207E 1960 KV
• Propellers: GEMFAN 5136
• Weight: 428 g ±5 g (without battery)
• Recommended battery (Not included): 6S LiPo 1300 mAh - 1800 mAh
• Flight time: 14-19 minutes

In the box

• 1 × Vapor-D5 O4 Pro drone
• 2 × GEMFAN 5136 propeller sets (pairs)
• 2 × Anti-slip battery pads
• 1 × Spare screw set
• 1 × Vapor side panel set
• 2 × Battery straps (20 × 250 mm)
• 1 × L-shaped screwdriver (1.5 mm)
• 1 × L-shaped screwdriver (2.0 mm)
• 1 × GoPro camera mount base

Required separately to operate the drone:

• FPV Goggles: Compatible DJI digital goggles (e.g., DJI Goggles 3 or N3).
• Radio Transmitter: ExpressLRS (2.4GHz) remote controller.
• Batteries: 6S LiPo batteries (1300mAh to 1800mAh) with XT60 connector.
• Battery Charger: Dedicated LiPo balance charger with XT60 output.
